US/50 User's Guide 29
US/50 General Operation and Application Procedures

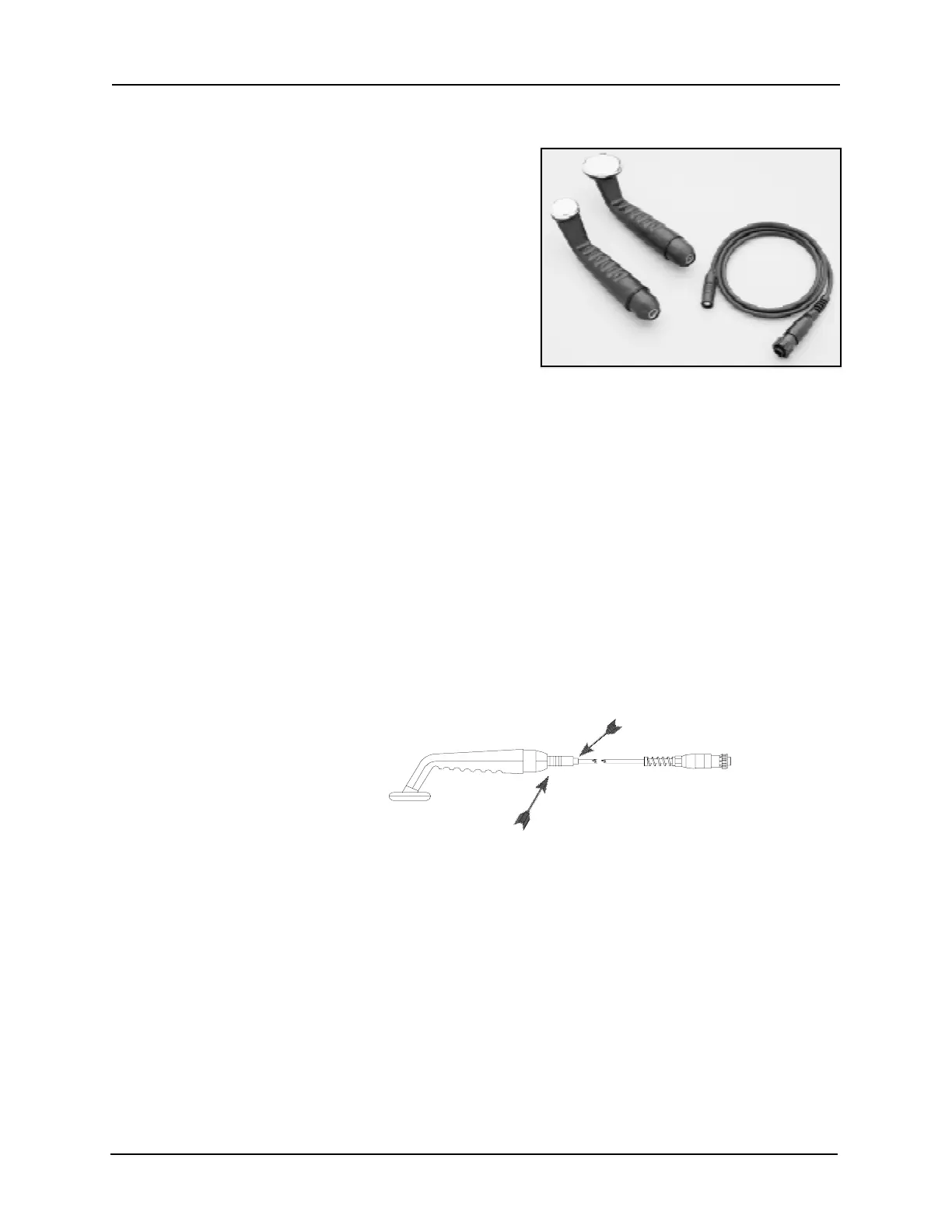

Dual Transducers (Optional Feature)
Dual transducers enable the
practitioner to select an alternate
transducer to provide a wider range of
flexibility for therapeutic applications.
The standard size transducer provides
maximum coverage for stimulation
therapy while the smaller size
transducer is ideal for treating outer
extremities.
Only Amrex generators equipped
with dual transducers may be
exchanged in this manner.
To Change from One Assigned Amrex Transducer to Another:
1. Verify that the Power/Timer knob is turned counterclockwise to the Off position.
Reduce the Ultrasound Intensity control to "0" position and thoroughly clean
the transducer faceplate before placing the transducer in the transducer cradle.
2. Verify that all three Internal Power switches (Ultrasound, Stimulator and
Combination) are in the up (off) position.
3. Disconnect the assigned ultrasound transducer from the generator's Ultrasound
Output Transducer Connector and remove the handle from the transducer cradle.
4. Firmly squeeze the rubber boot and pull away from the transducer handle.
5. Slide the rubber boot down the cord to expose the connector.
6. Grip the metal ring lined area of the connector and firmly push it into the
alternate transducer handle. A snap sound will indicate proper installation.
7. Slide the rubber boot up the cord, over the connector and into the alternate
transducer handle.
Note: The QuickConnect cable must be properly connected to the
transducer handle before immersion in water.
8. Connect the assigned alternate ultrasound transducer to the generator's
Ultrasound Output Transducer Connector and place the handle in the transducer
cradle.
Firmly squeeze
Rubber boot
To Next Page
