36 US/50 User's Guide
Part 5

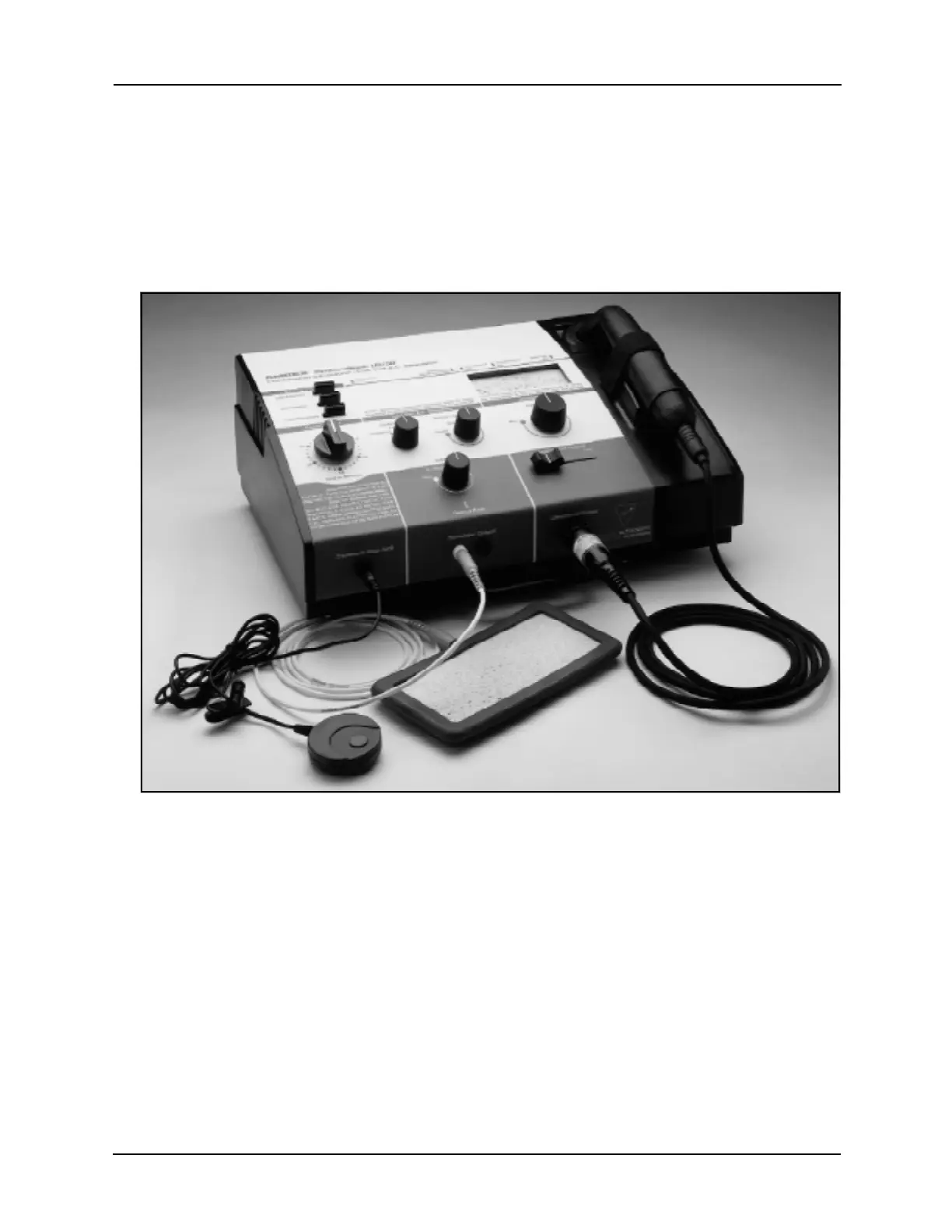

US/50 Combination Mode
The ultrasound modality may be combined with electrical stimulation for
simultaneous application through the ultrasound transducer. This technique
involves using a large electrode pad and the ultrasound transducer. The
transducer soundhead will become the active electrode which will transmit both
ultrasound and electrical stimulation. Combination modes require specific control
settings and pad arrangements.
Ultrasound Modality Combined With Low Volt AC Stimulator Modality
Control Settings and General Operation
1. Connect the US/50's ac power cord to the US/50's ac receptacle and plug
the "Hospital Grade" connector to a properly grounded 120Vac, 60Hz
receptacle.
2. Verify that all three Internal Power switches (Ultrasound, Stimulator and
Combination) are in the up (off) position.
3. Connect the patient "Treatment Stop" Switch to the "TREATMENT STOP"
JACK.
