2 Board description
The POTUINO shield allows evaluation of the AS5600 position sensor. This Arduino shield is fully
assembled with the AS5600 IC and its necessary external components.
The Arduino shield includes different breakout options. A breakout magnet holder is available on the
left side of the PCB and in addition, an adapter board breakout is possible.
The headers on the bottom side of the PCB are used for mounting as well as for electrical
connection to the Arduino UNO.

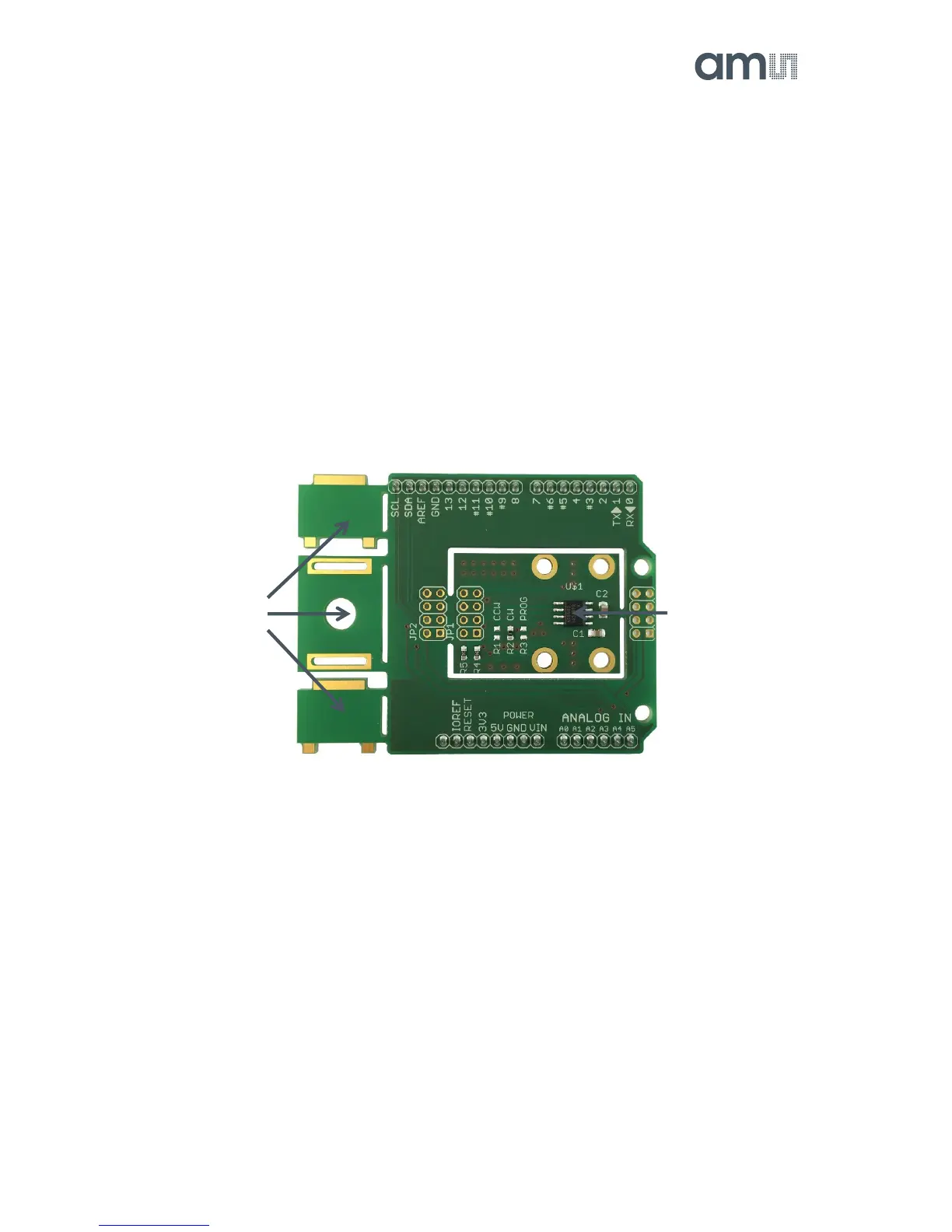

Figure 2: AS5600-POTUINO shield
