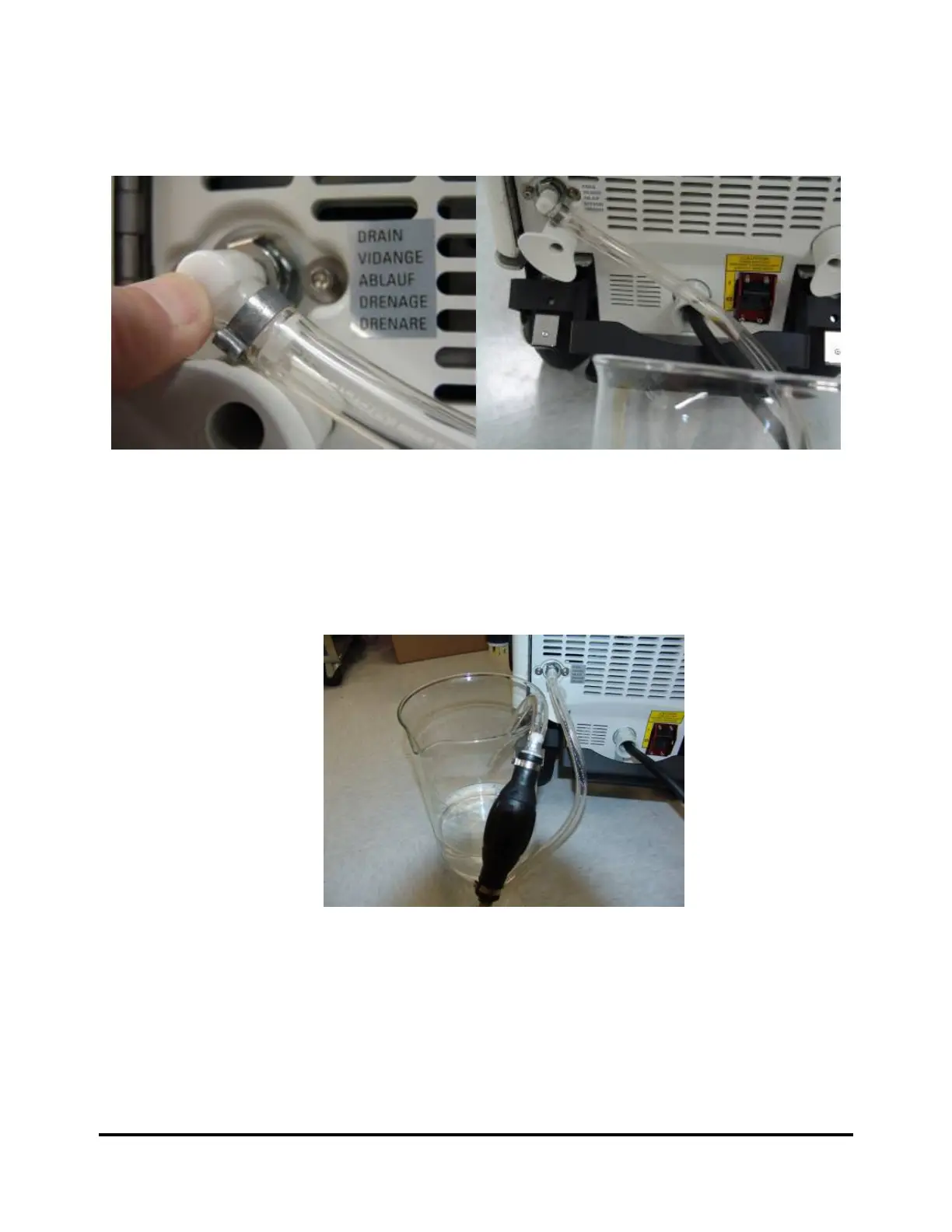

See Fig. 1 & Fig 2 Below.
Figure 1 Figure 2
7.1 After gravity drain is completed insert the ball pump assembly with the male CPC connector
(Suction Side of ball pump assembly note the arrows for flow direction) the output side has no
connector, pump the ball pump into the floor drain or equivalent container to remove any excess
water that may remain.
See Fig. 3
Figure 3
7.2 Open left side access panels looking from the front of the unit. This will allow access to the
resonator cooling hoses and chiller components. Loosen the (3) Thumb screws to access the
chassis components and resonator hoses. Cut Ty-wraps that are securing the particle filter and
flow switch assemblies to allow easier manipulation during this process.
See Fig. 4 & Fig. 5
