AMS TDC-GP30 User Manual

Document Feedback
TDC-GP30 ● DEV-KIT
Connect Hardware
Quick Start Guide • PUBLIC
QG000115 • v2-00 • 2019-Feb-26
8 │ 5
3 Connect Hardware
Make sure software is installed correctly before proceeding with this step!
Figure 3:
Connect Hardware
Step
Instruction/Description

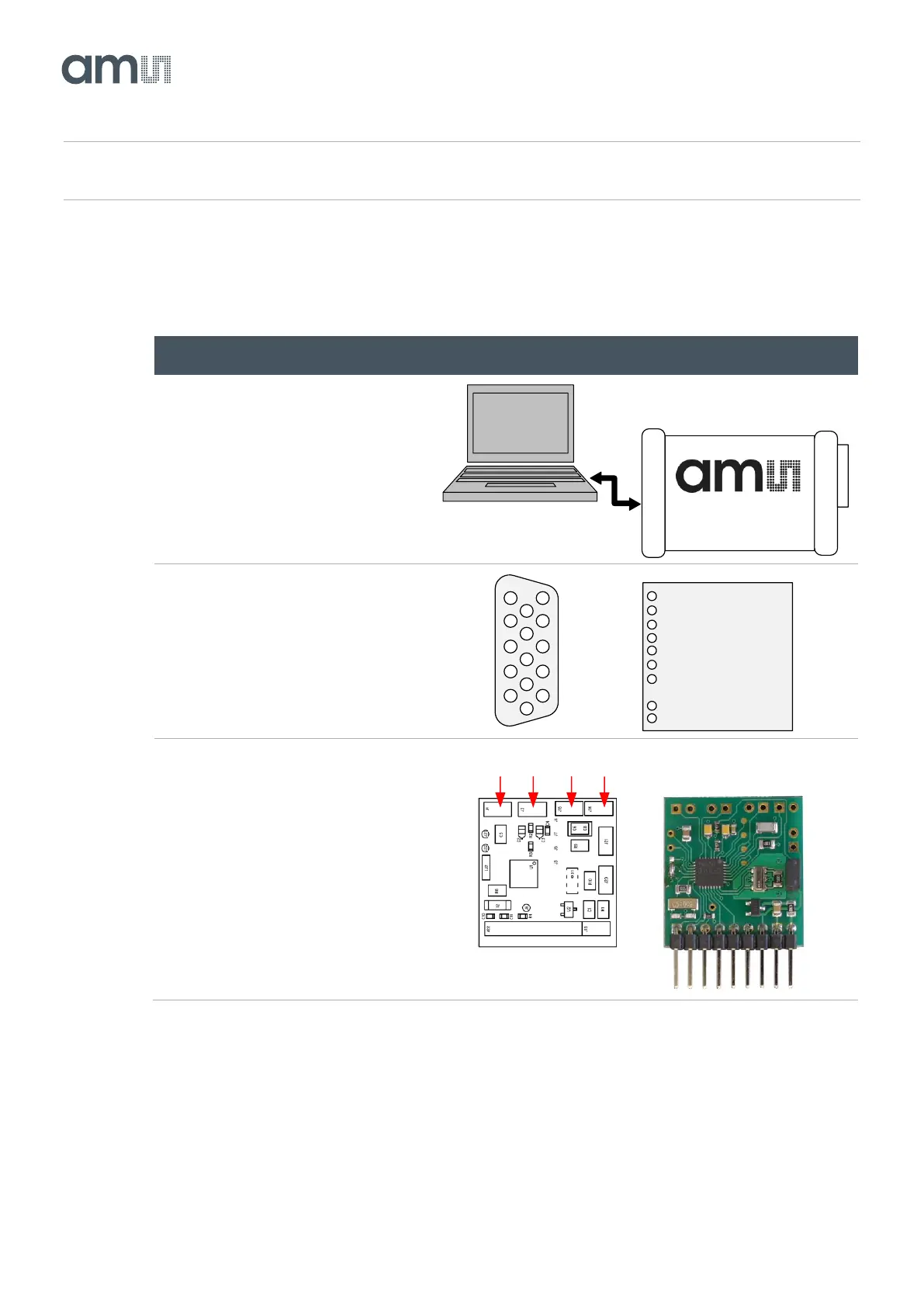

Schematic Representation
1
Connect your computer with
the PICOPROG V3.0 using
USB cable
PICOPROG V3.0
2
Connect PICOPROG V3.0
and the development kit with
enclosed cable using the
DB15 interfaces
GP30
DEV-KIT
INTN
MISO / TXD
SCK / RXD
MOSI
SSN
-
VCC_LEVEL
GND
VCC
13
8
12
11
6
14
3
15
15
10
5
11
6
1
3
Connect your spool piece to
US_UP(U) and
US_DOWN(D)
Optionally, connect external
temperature sensor to
PTHOT(H) and PTCOLD(C)
Piezo
D U
PT1000
C H
