4.1 Attach Headrest
and Orient Patient
OPERATING INSTRUCTIONS
For maximum patient positioning flexibility, the Amsco
®
3085 SP™ Surgical
Table is designed so the headrest can be attached to either end of the table.
IMPORTANT: Control must be oriented as to the patient's position on table
before any positioning functions are operable. When the table is turned on with
the hand control, it will automatically activate in NORMAL patient orientation.
The user can then select REVERSE orientation if desired.
NOTE: Thumbscrews located under tabletop frame must be loosened before
headrest can be attached or removed.
1. Determine desired patient position and attach headrest to table end to obtain
this desired position (see Figure 4-1) as follows:
NOTE: The headrest (head section) is intended only to support the patient head
or feet. Load rating is 77 lb (35 kg).
a. Insert rods extending from each side of headrest attachment into bores
provided in either end of table frame.
b. Reach under tabletop frame and fully tighten both thumbscrews (one on
each side of frame) to secure headrest attachment in place. Refer to
SECTION 4.4, HEADREST P OSITIONING,
for adjustment procedures.
2. Verify power is ON and table floor locks are properly engaged.
NOTE: If the wrong function selection button is accidentally pressed, press the
correct function button to override the incorrect selection.
WARNING – EXPLOSION
HAZARD: Table must not be
used in the presence of flam-
mable anesthetics.
WARNING – TIPPING
HAZARD:
• Do not place patient on the
table unless floor locks are
engaged.
• Do not release floor locks
while patient is on table.
WARNING – PERSONAL
INJURY HAZARD: If the integ-
rity of the external protective
earth conductor installation
or arrangement is in doubt,
operate the table from its in-
ternal power source.
Attach Headrest
Tighten Thumbscrews

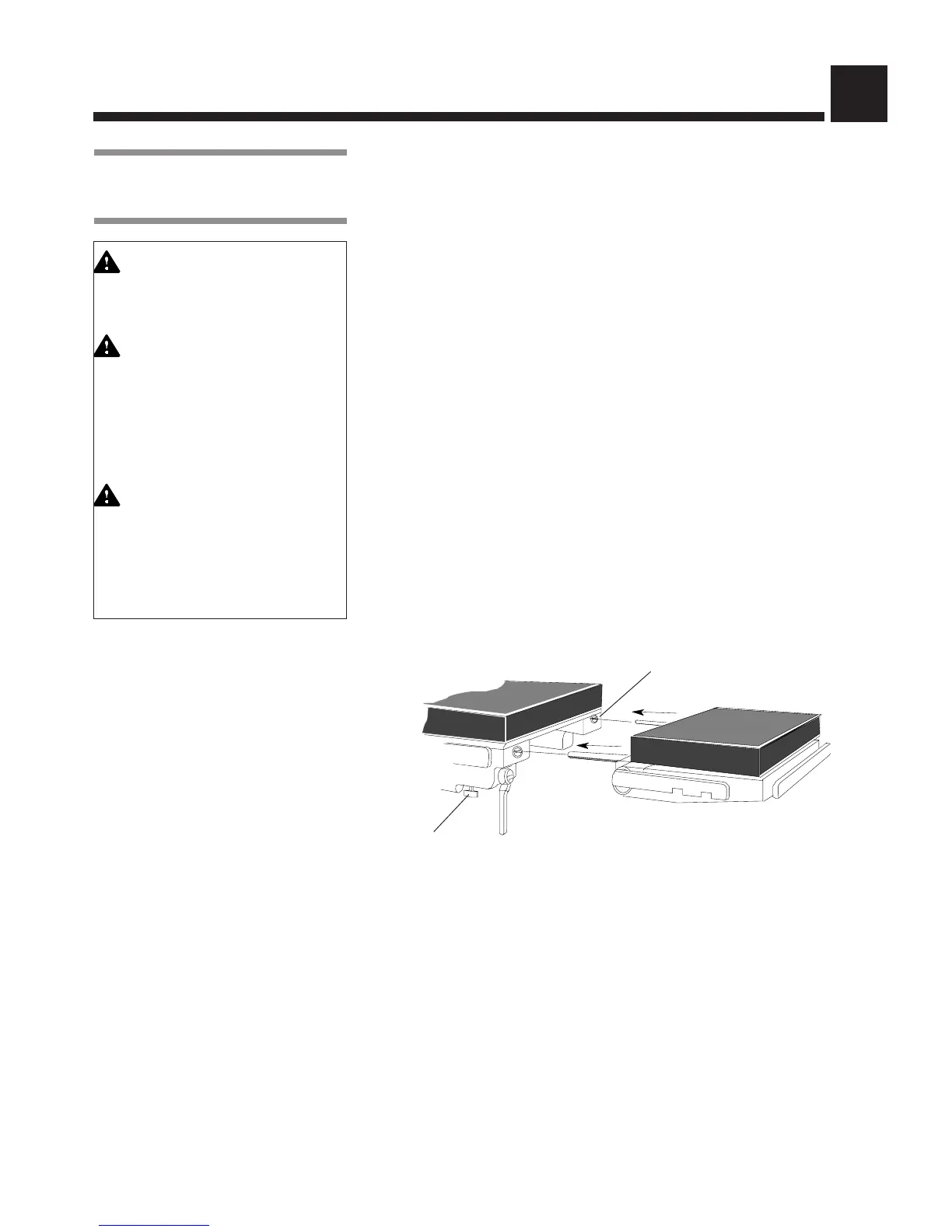

Figure 4-1. Attach Headrest
