MXA-MP/MPL Modero X Series® Multi Preview and Multi-Preview Live
MXA-MPL
Overview
The Modero X Series Multi Preview Live (FG5968-10) is a touch panel accessory that displays a HD digital
video stream on Modero X Series Touch Panels when used in conjunction with an Enova DVX All-In-One
Presentation Switcher or Enova DGX Digital Media Switcher (FIG. 2). The MXA-MPL accepts digital video
inputs over HDMI and converts them to a video stream. The MXP-MPL also supports all of the features of the
MXA-MP, displaying up to 10 JPEG preview images on a Modero X Series touch panel. The MXA-MPL
makes it easy for users to make quick identification of what is currently being displayed by up to 10 source
devices.
Common Applications
Use the MXA-MPL to preview a live video stream or snapshot of the content from a source device before
switching to that source.

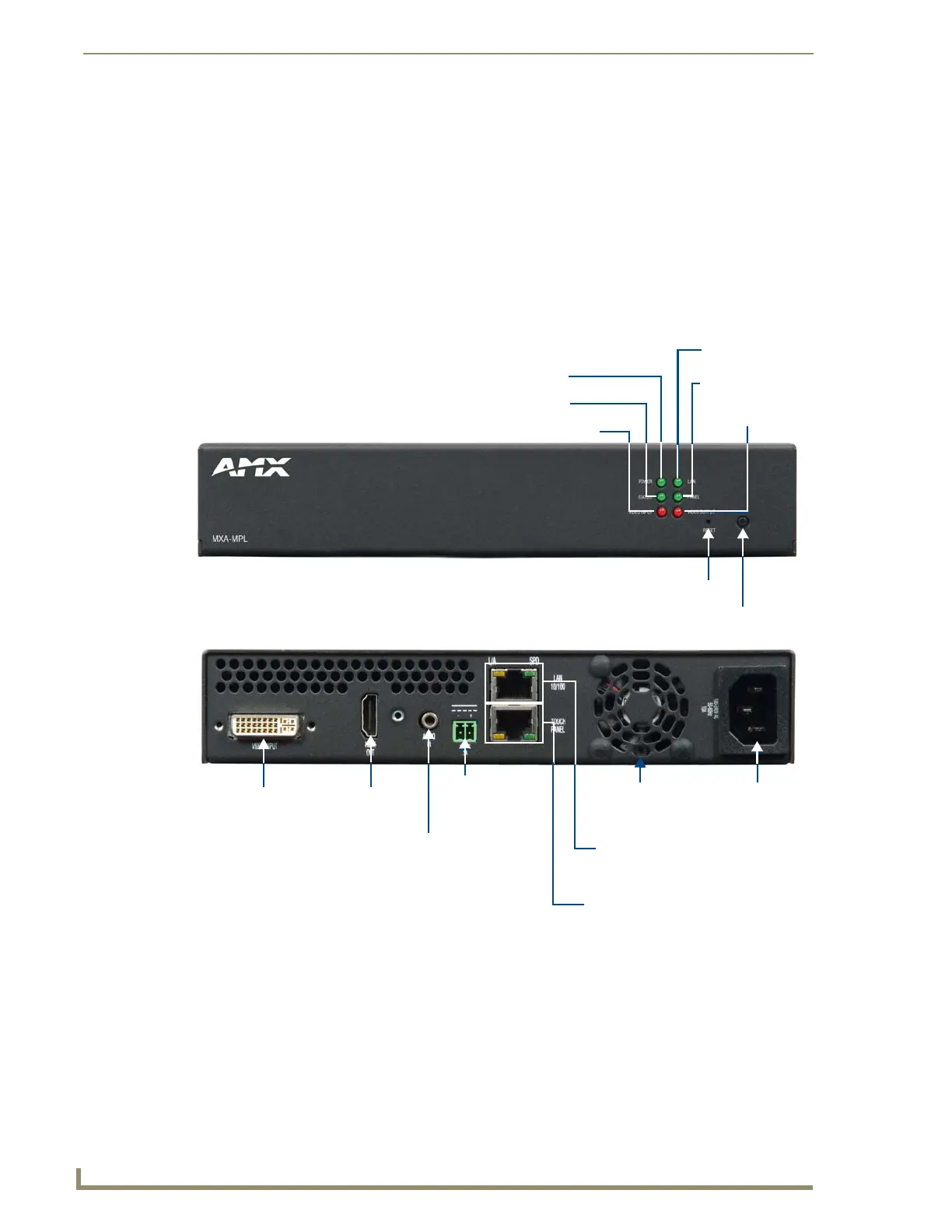

FIG. 2 MXA-MPL
Video
Input
HDMI
Out
Audio
In
2-pin
Connector
Output
Ethernet
In
Ethernet
Out (to
Touch Panel)
Ventilation
Fan
Power
Input
Power
Status
Video Input
LAN
Panel
Video Output
Reset
Factory Reset
Front
Rear
