Installation
11
MXA-MP/MPL Modero X Series® Multi Preview and Multi-Preview Live
Installation Recommendations
During any installation, a lack of ventilation may produce conditions that may adversely affect the device’s
operation. In these circumstances, special care must be made to make sure that temperatures within enclosed
areas do not exceed the device’s maximum rated temperature.
Rack Mounting the MXA-MP and MXA-MPL
The MXA-MP or MXA-MPL may be put in a freestanding location on a desktop or table, but the device may
also be installed in a standard AV rack. Installation in a rack requires the use of an MPA-VRK Rack Mounting
Tray (FG5968-30) (FIG. 7), available from www.amx.com.
While the outside temperature of the device may be at or below its maximum
operating temperature, special care must be taken before and during installation to
ensure that the maximum operating temperature is not exceeded within wall or rack
installation spaces.

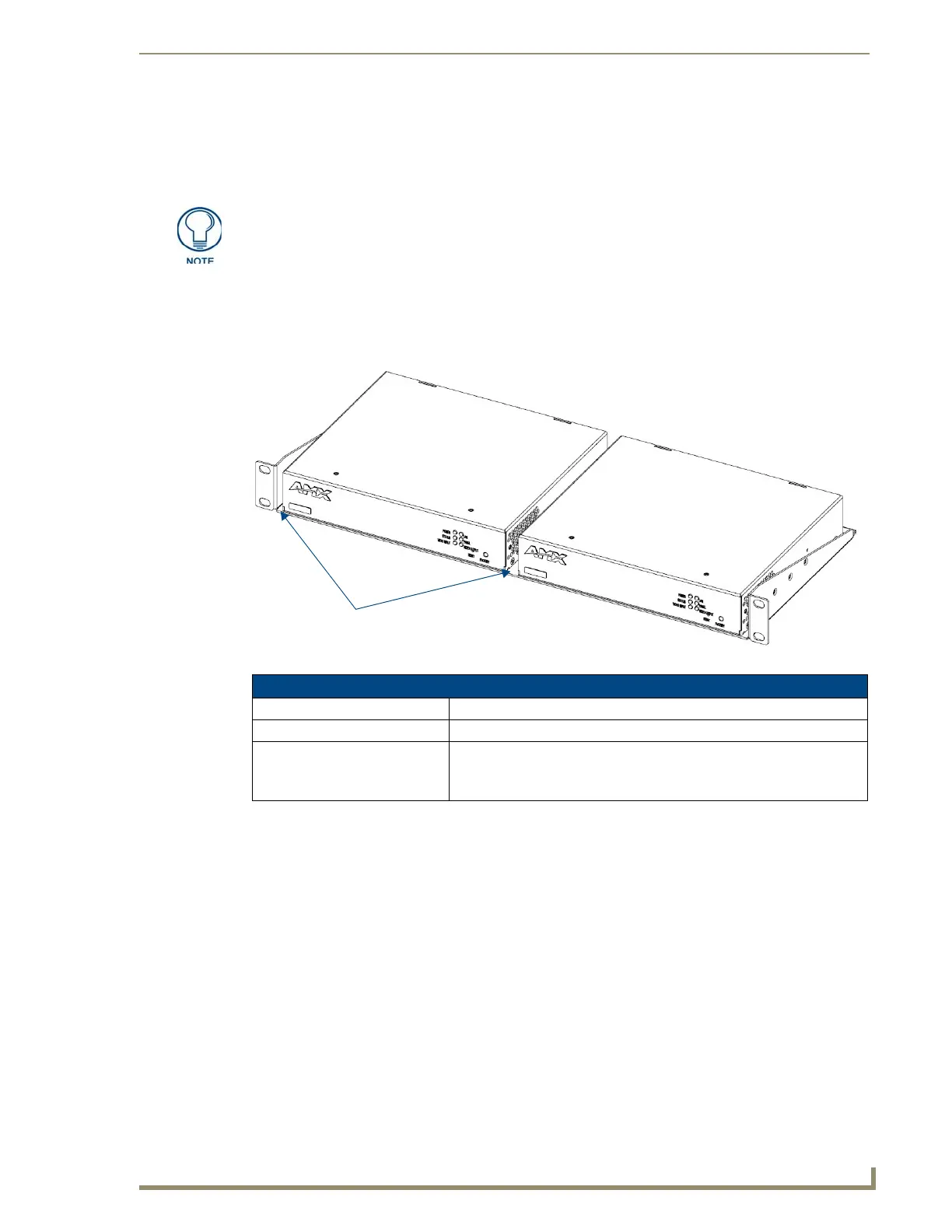

FIG. 7 MPA-VRK Rack Mounting Tray
MXA-VRK (FG5968-30) Specifications
Dimensions (HWD): 1 3/4” x 17 9/16 x 7 5/8” (4.44 cm x 44.61 cm x 19.37 cm)
Weight: 2.70 lbs (1.22 kg)
Included Accessories: • Installation Screws, #10-32 x .625, Ph. Truss, Black (4) (80-0186)
• Washer, #10, Black Nylon (4) (80-0342)
• Installation Screws, #4-40 x .187, PFH, Undercut, Black (8) (80-1231-01)
