Installation
20
MXD/T-1000 10.1" Modero® X Series Touch Panels
2. With a stout, strong point (a push pin or straightened paperclip, for example), carefully press into the
access holes in either end of the molding (FIG. 21) until the snap is disconnected. To facilitate the
disconnection, grasp the bottom of the panel (Landscape) or right side (Portrait) and pull gently outward
until the side of the panel is free of the snap..
3. When the first side is free, repeat the process with the other.
4. With the edge of the touch panel free, carefully lift up and out (Landscape) or to the left and out (Portrait)
to remove the touch panel from the back box. Be careful not to pull on the cables or connectors.
5. To reattach the panel to its back box, repeat the installation procedure on page 18.

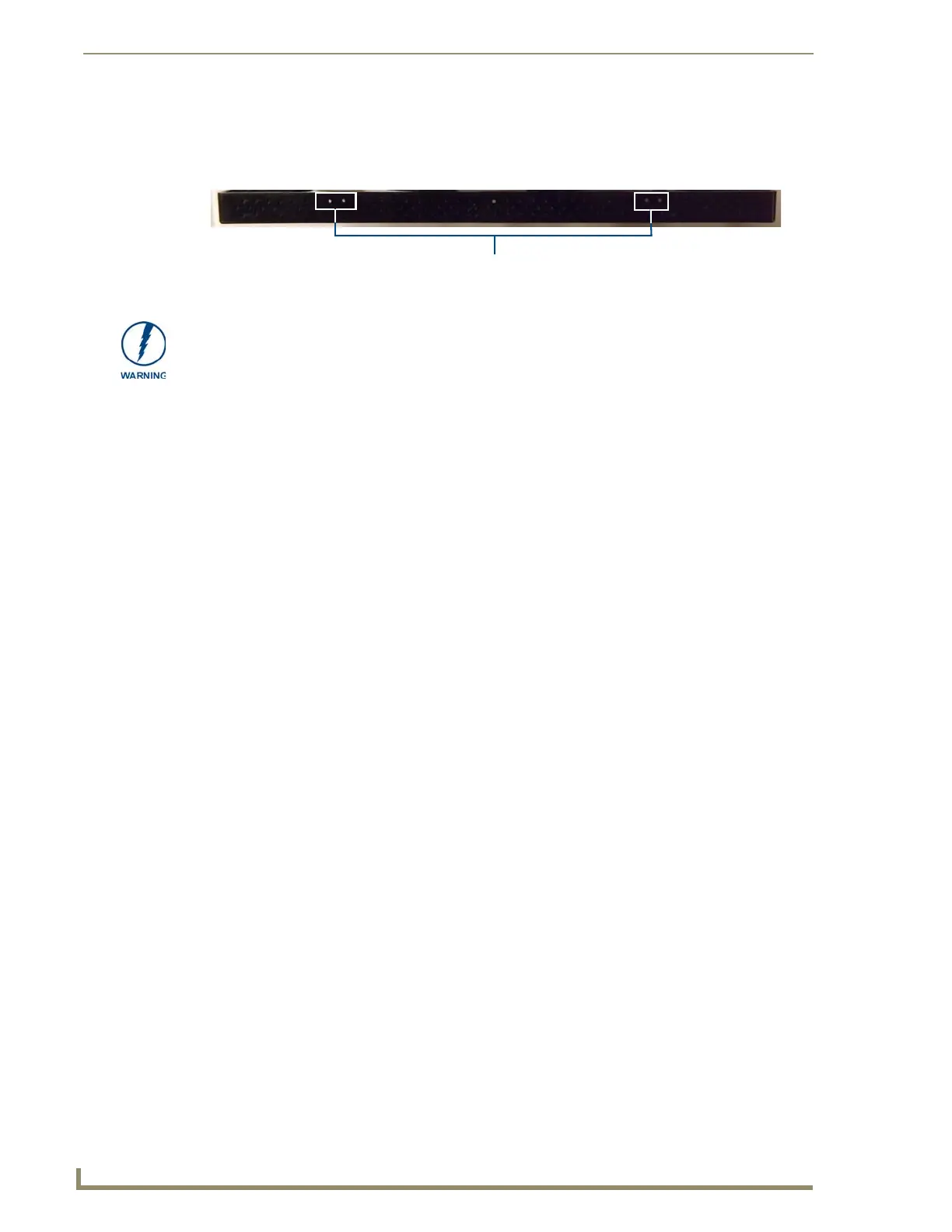

FIG. 21 Location of access holes on MXD-1000 molding
Always pull on the frame of the touch panel. NEVER pull on the glass edge.
