Installation & Setup
24
Precis LT Instruction Manual
Stereo Audio 3-position Terminal Block – RGBHV with HD-15 Models Only
To attach stereo audio input and output wires:
1.
Unscrew the clamps on the audio connector.
2. Insert the wires and firmly re-tighten the clamps to make secure connections.

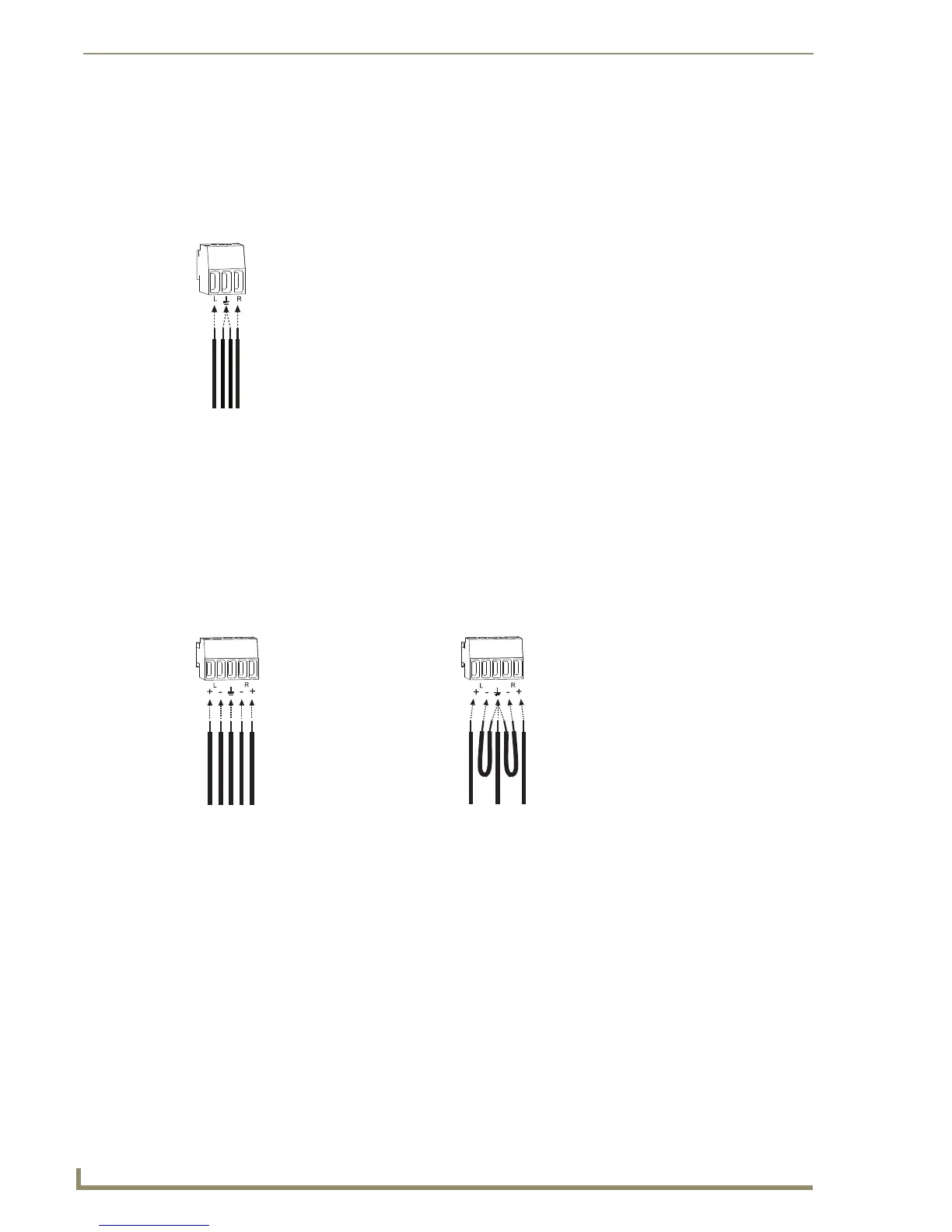

FIG. 18 shows wire placement for single-ended stereo.
Stereo Audio 5-Position Terminal Block
To attach stereo audio input and output wires:
1.
Unscrew the clamps on the audio connector.
2. Insert the wires and firmly re-tighten the clamps to make secure connections.
For balanced audio wire placement, see the left wiring diagram in FIG. 19.
For unbalanced audio wire placement, see the right wiring diagram in FIG. 19.
Note: For stereo audio signals using twisted pair wire, connect the shield (ground) only at one end
(recommend receiving end) to minimize low frequency noise.
FIG. 18 Insert wires & re-tighten clamps
FIG. 19 Insert wires & re-tighten clamps
