Analog Devices ADRV9029 Setup

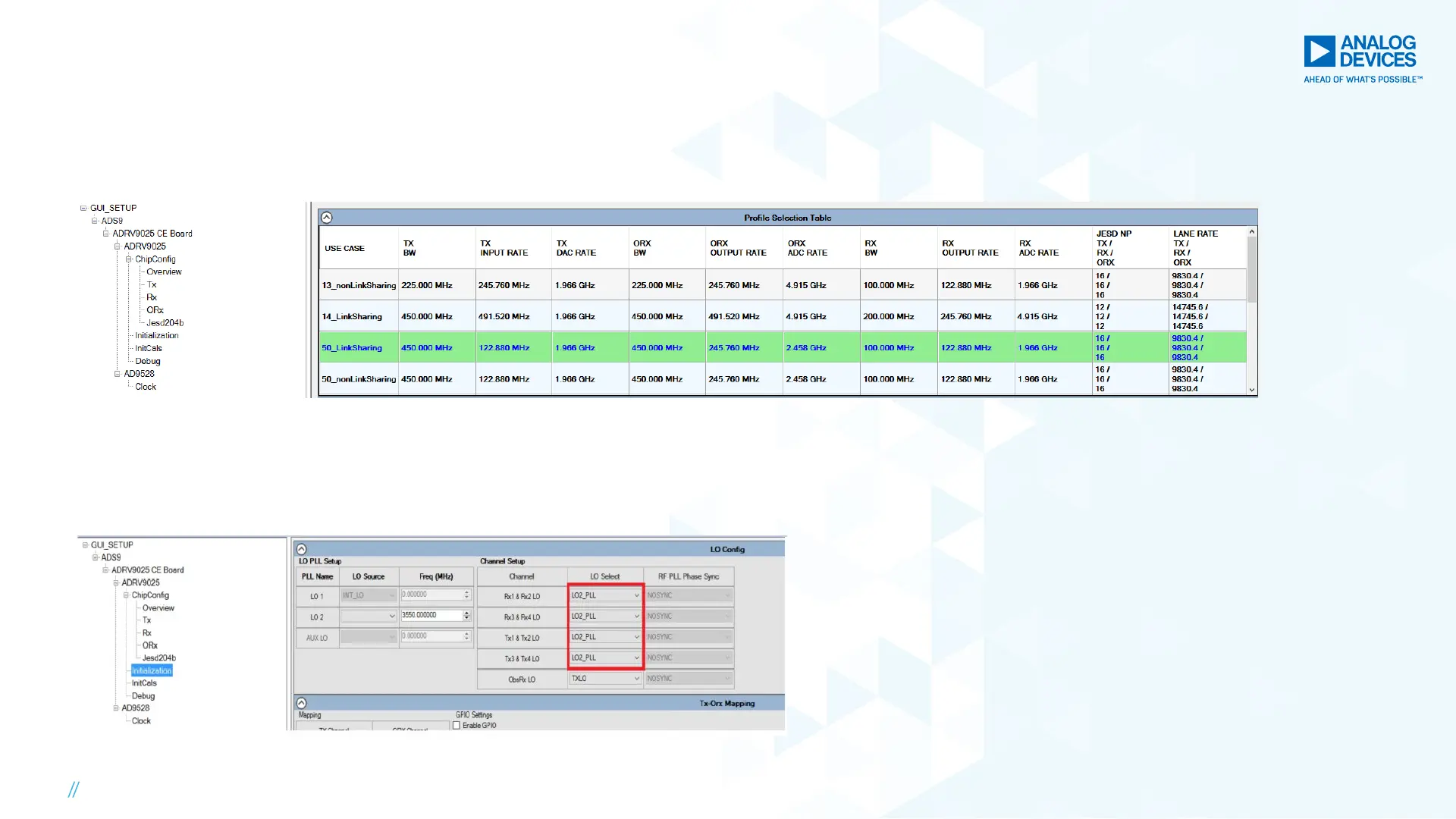

GUI setup
► Use use cases with a DPD Actuator rate of 491.52MSPS. for lower sampling rate like 122.88MHz ,
make sure profile uses DPD HB1 and DPD HB2 filters.
Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
3
18 February 2022
► While programming the device, ensure that all Tx, Rx channels are running off same LO. It is
recommended to turn off the PA during the course of programming to avoid any damage from high
amplitude data transmitted during intial calibration(For TxQEC etc.).
