Analog Devices ADRV9029 Setup

GUI setup
► Program the chip with DPD use case. (For ex. UC50 NLS)
► Make sure Tx-ORx mapping is correct and ORx LO is configured as TX LO in GUI.
► From Transmit tab send signal and check in ORX tab whether signal is reaching ORX with sufficient
levels (-20 to -25 dBm).

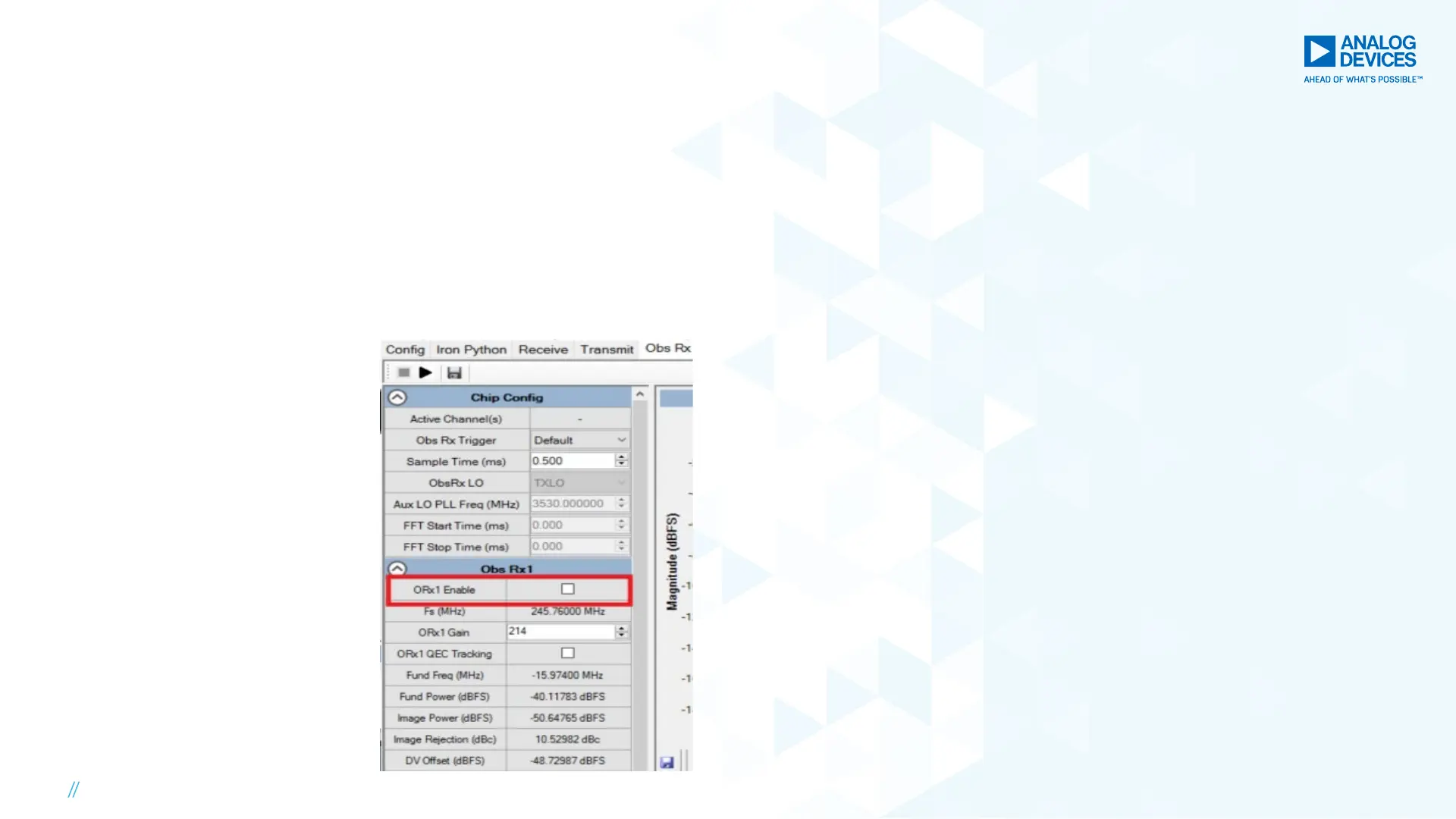

► Uncheck ORx Enable in the GUI so that it is not in user mode anymore, and it is available for DPD
tracking calibration.
Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
4
18 February 2022

Analog Devices ADRV9029 Specifications

General

Brand	Analog Devices
Model	ADRV9029
Category	Transceiver
Language	English
