Analog Devices ADRV9029 Setup

Madura DPD configuration
Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
6
18 February 2022
Step 7
Step 8
Step 3
Step 5
Step 10
Step 12
Step 9

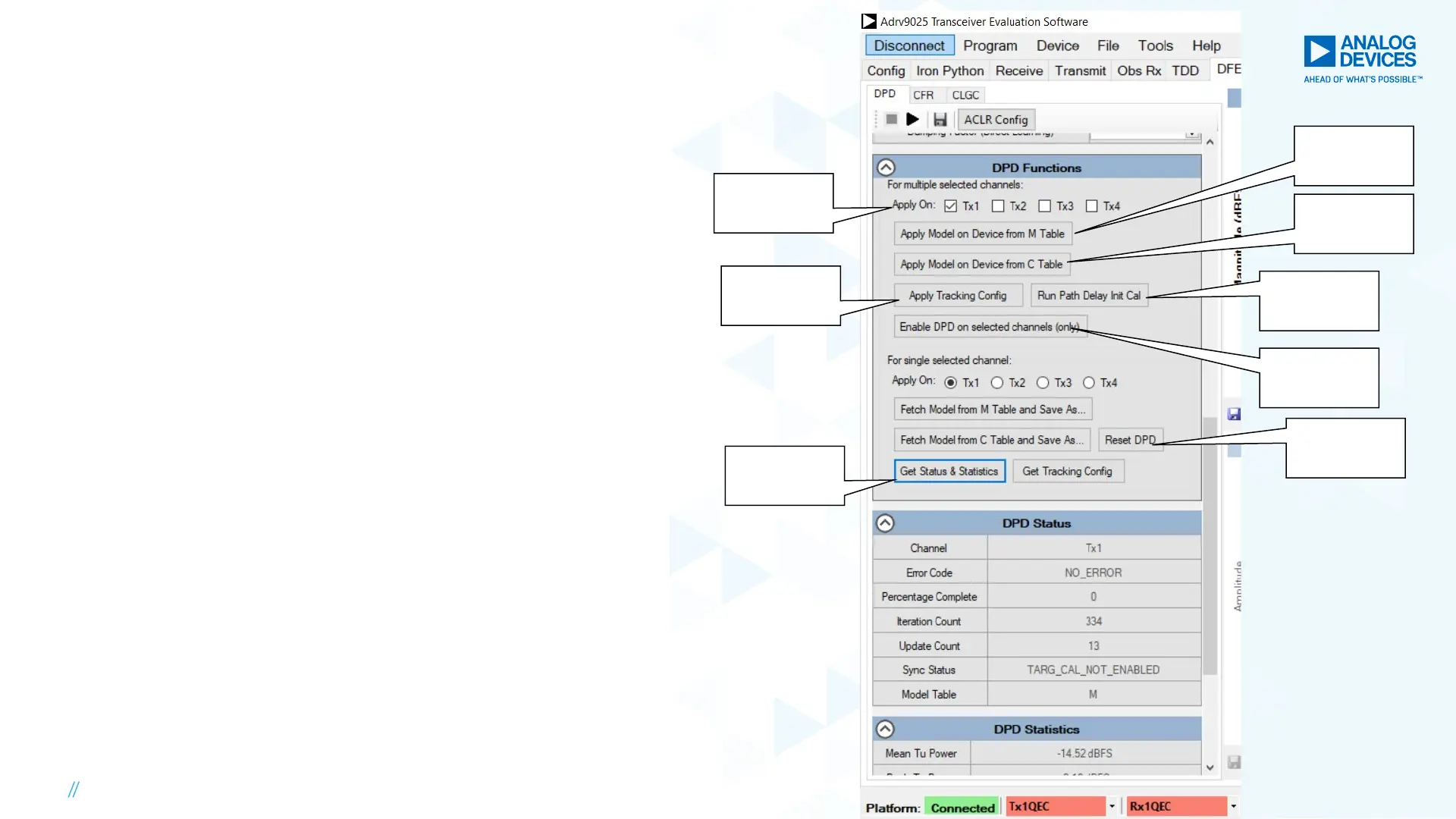

1. Step 3: Select connected Tx channels.
2. Step 4: Apply tracking config
3. Step 5 : Run path delay cal.
4. If signal level too low is reported check ORx
connection. Try programming the chip again and follow
same steps
.
5. Step 6: Switch off Tx transmit and go to
DFE tab  DPD
6. Step 7: Apply model M table
7. Step 8: Apply model C table
8. Step 9: Enable DPD on select channels.
9. Step 10 . Reset DPD
10. Step 11 Go to Tranmsit tab and send data.
11. Step 12. Get status.
► Step 11 send Tx data
From Transmit tab of G
Step 4
► Step 6 stop Tx data
From Transmit tab of GUI
