4) Gently slide the sensor extraction tool over the oxygen sensor (right hand sensor) being careful
not to cause damage to the carbon dioxide sensor (left hand sensor, if fitted). Ensure that the
alignment rib on the extraction tool lines up with the alignment marker on the Aspida case as

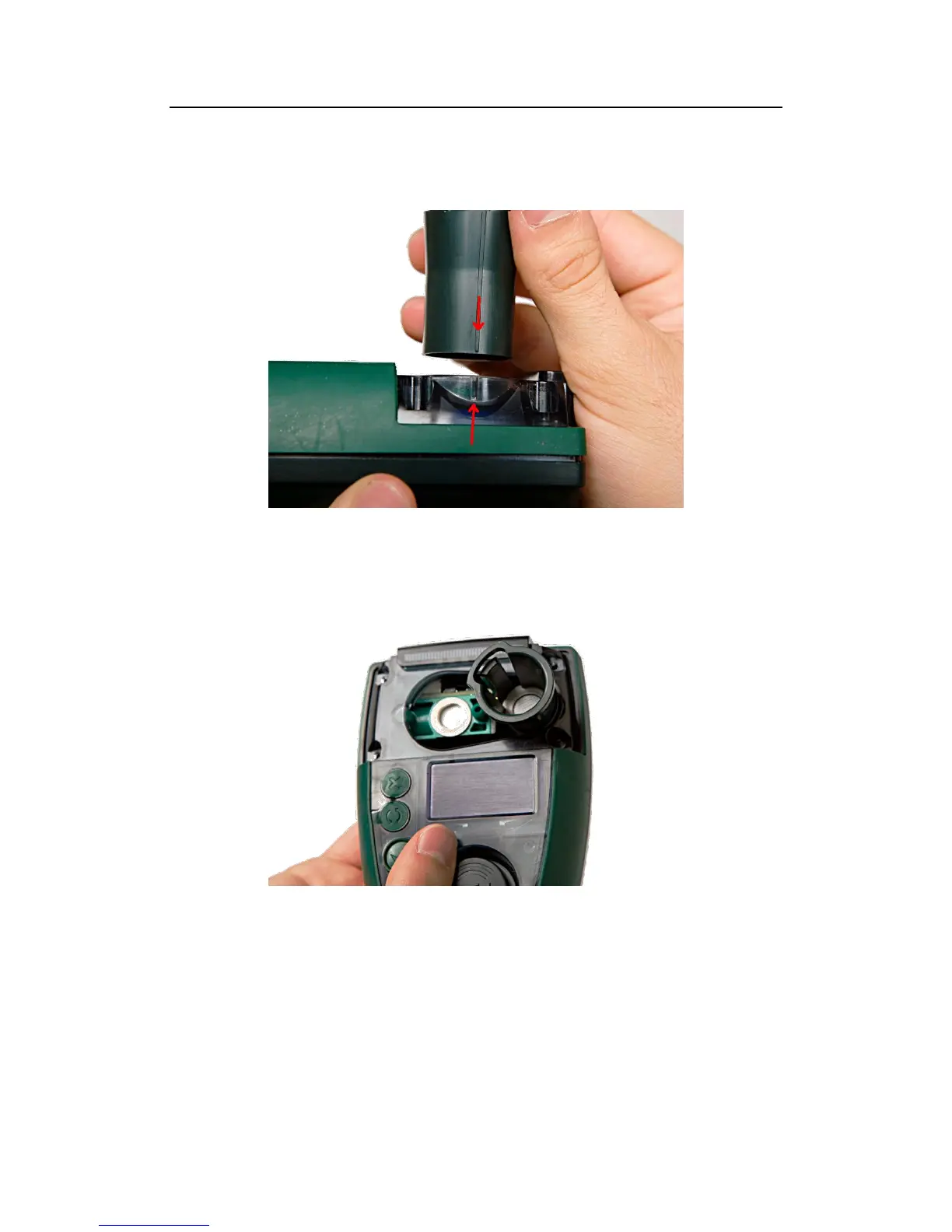

shown in Figure 19.
Figure 19 - Align the extraction tool
5) The extraction tool should now be positioned as shown in Figure 20.
Figure 20 - Correct extraction tool position
