ADM, HBOT & Sub Aspida
User Manual Int. Approved
Document ref: PSA-811-14 June 2017 Page 32 of 43
Copyright © 2017 Analox Ltd. All Rights Reserved.
Commercial in Confidence
9) Remove the new sensor from its packaging. Oxygen sensors are supplied in sealed bags.
Before the bag is opened check that the sensor has not leaked – if it has, then please refer to
the safety information at the start of this section.

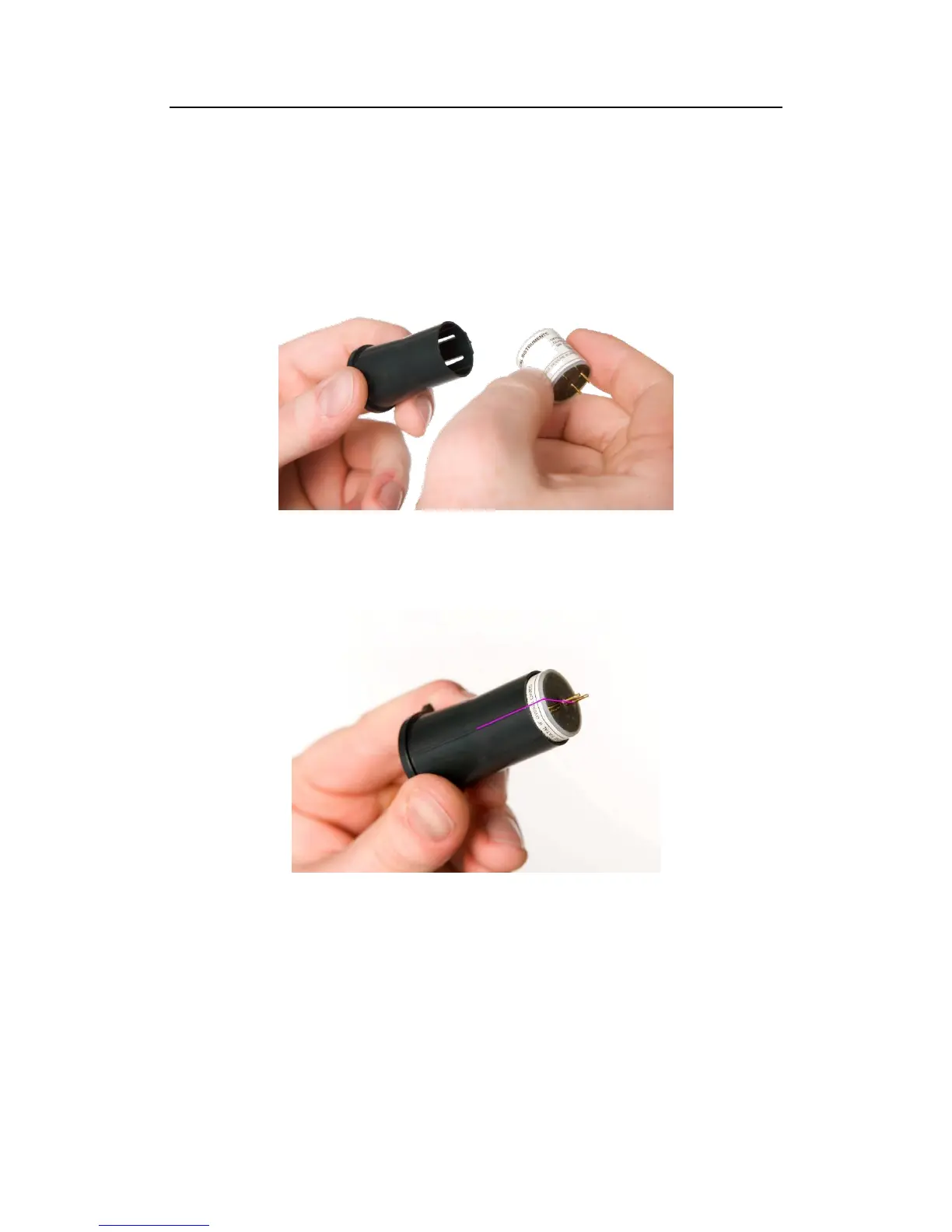

Figure 23 - Insert the new sensor into the extraction tool
10) Insert the new sensor as show in Figure 23, ensuring that the two pins of the new sensor are
away from, but align with the extraction tool alignment rib, as shown in Figure 24.
Figure 24 - Align the new sensor in the extraction tool
