ANCEL AD610 Plus - 8.4 Display Test; 8.5 Keypad Test

33
AD610 Plus ABS & Airbag Reset Tool Manual_English_V1.02
8.4 Display Test
Selecting Display Test option opens a screen that allows you to check the functionality of the
display. To test the display:
1. Scroll with the arrow keys to highlight Display Test from Settings menu and press the ENTER key
to start test. Check if there are any missing spots in the LCD screen.

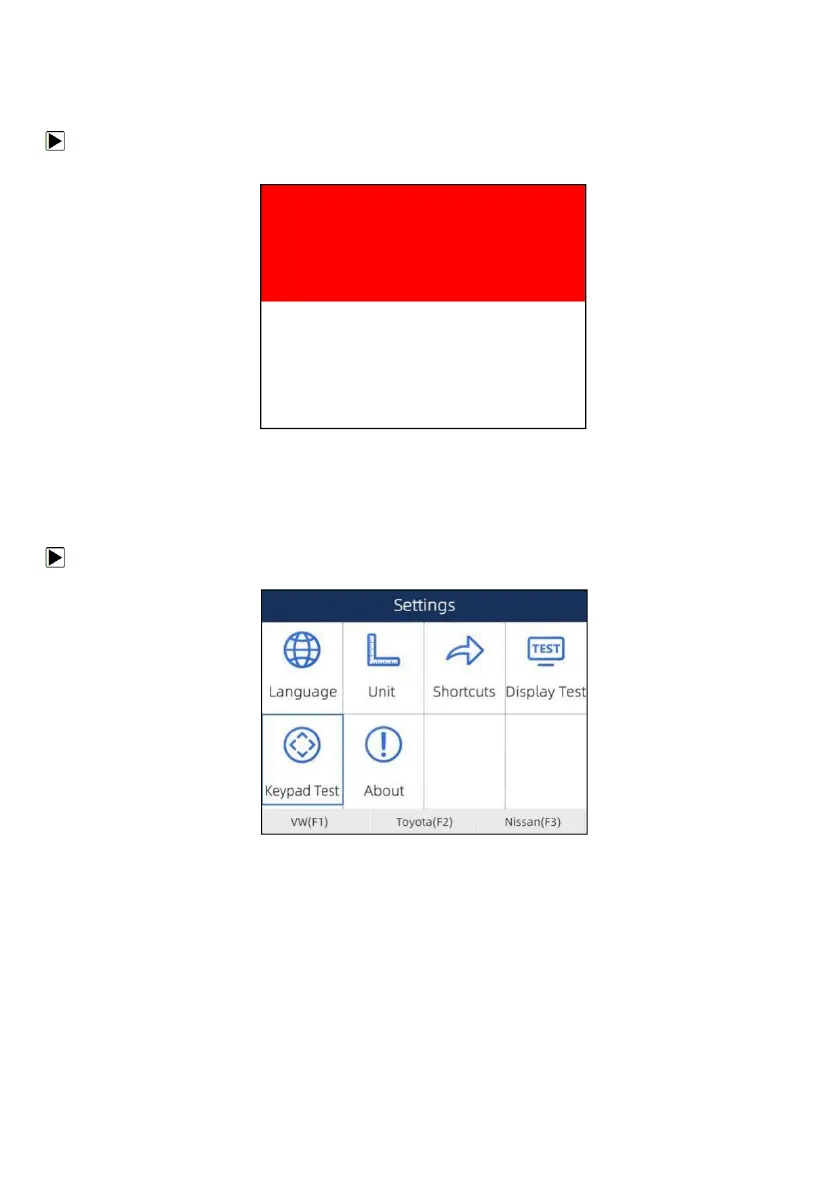

2. xFigure 8-8 Sample LCD Test ScreenTo quit the test, press the Back key.
8. 5 Keypad Test
Selecting Keypad Test option opens a screen that allows you to check the functionality of the
keypad.
To test the keypad:
1. Scroll with the arrow keys to highlight Keypad Test from Settings menu and press ENTER key.
Figure 8-9 Sample Settings Screen
2. Press any key to start test. The virtue key corresponding with the key you pressed will be
highlighted on the screen if it works correctly.
