Anchor Event Series User Manual

12
1st Bay Width
Align edge of Base Plate
with String Line.
Tent Side
Tent Width + 2m
A
B
C
E
String Line
90º

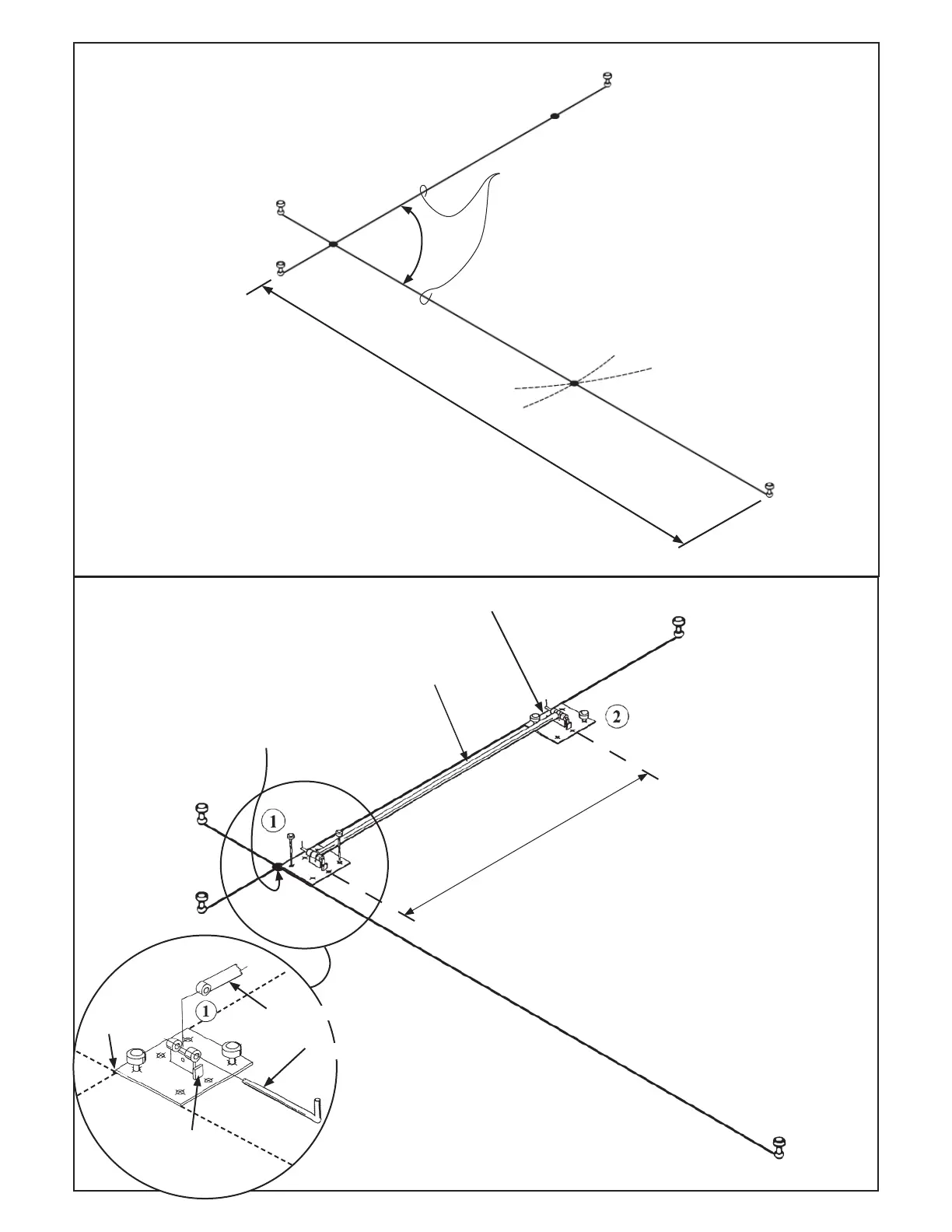

Figure 1.1c
Tent Front
6-hole
6-hole
Measuring Rod
Tent Side
Place corner of Base Plate
#1 at Point A and align
edges with string lines.
A
Measuring Rod
Base Plate L-Pin
Safety Tab
Point A
Important: Make certain the base plate safety
tab is oriented toward the interior of the tent.
Figure 1.2a
