Anco Equipment Batch Pasteurizer - Page 10

9/25/2018
10

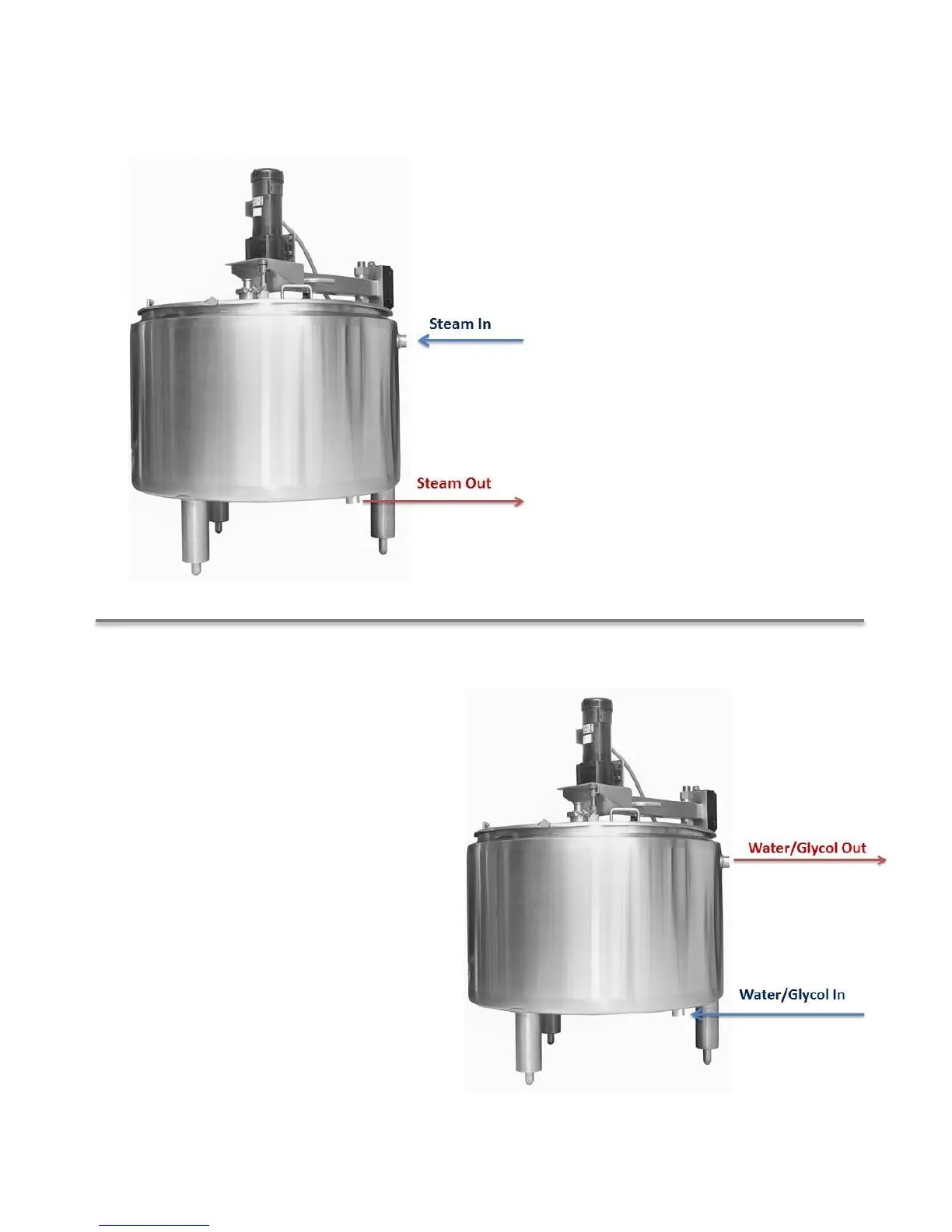

Inlet & Outlet-Single Zone Jacket Install
Water or Glycol must always
enter from the lower inlet port
of the jacket and exit from the
top or higher jacket port.
Steam must always enter from the
top inlet jacket and exit from the
bottom or lower jacket port.
