Anco Equipment Batch Pasteurizer - Page 11

9/25/2018
11

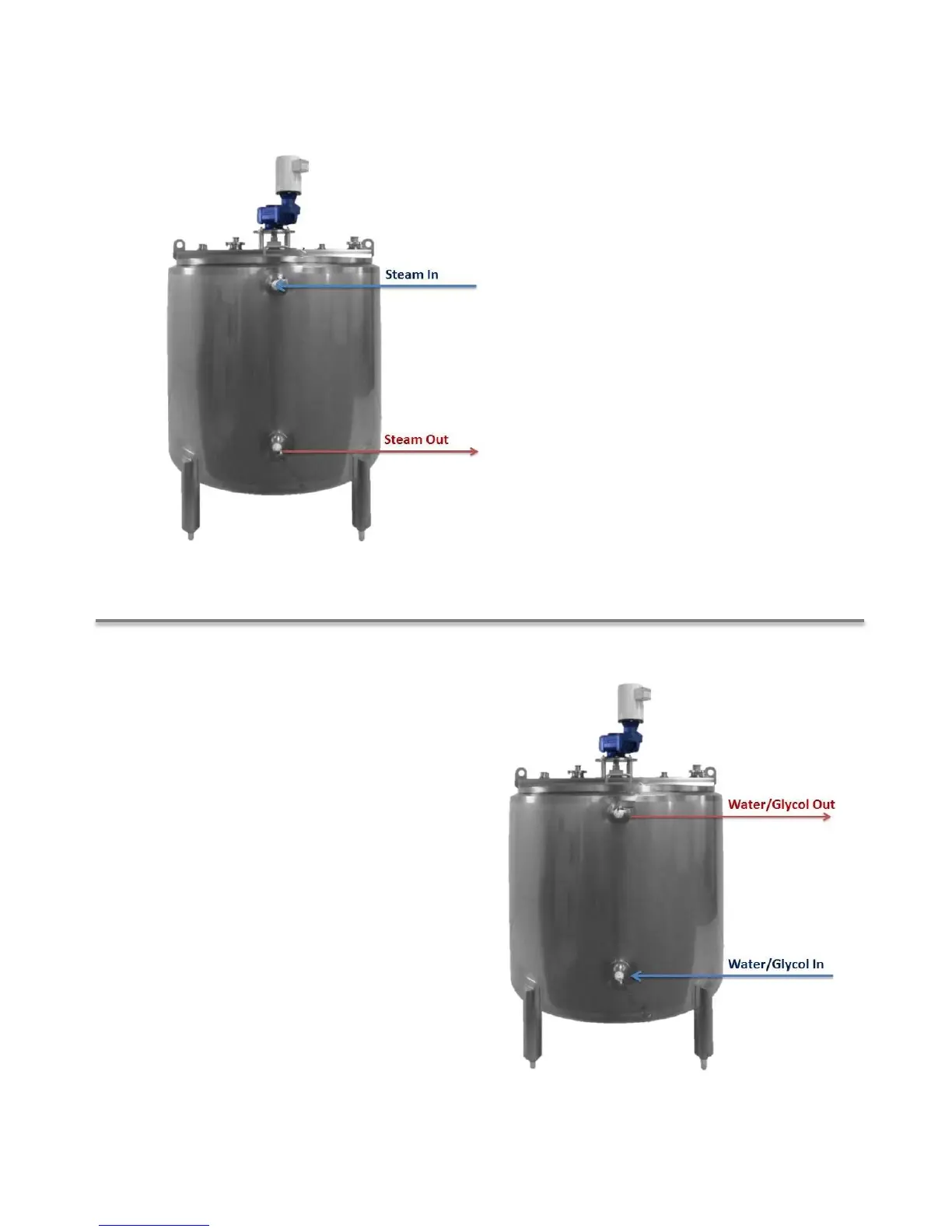

Inlet & Outlet-Two Zone Jacket Install
Water or Glycol must always enter
from the lower inlet port of the
jacket and exit from the top or
higher jacket port.
Steam must always enter from the
top inlet jacket and exit from the
bottom or lower jacket port.
Bottom ports are interchangeable.
Bottom ports are interchangeable.
