2. ASSEMBLING THE TESTER
2-1 Preparing to Assemble the Tester

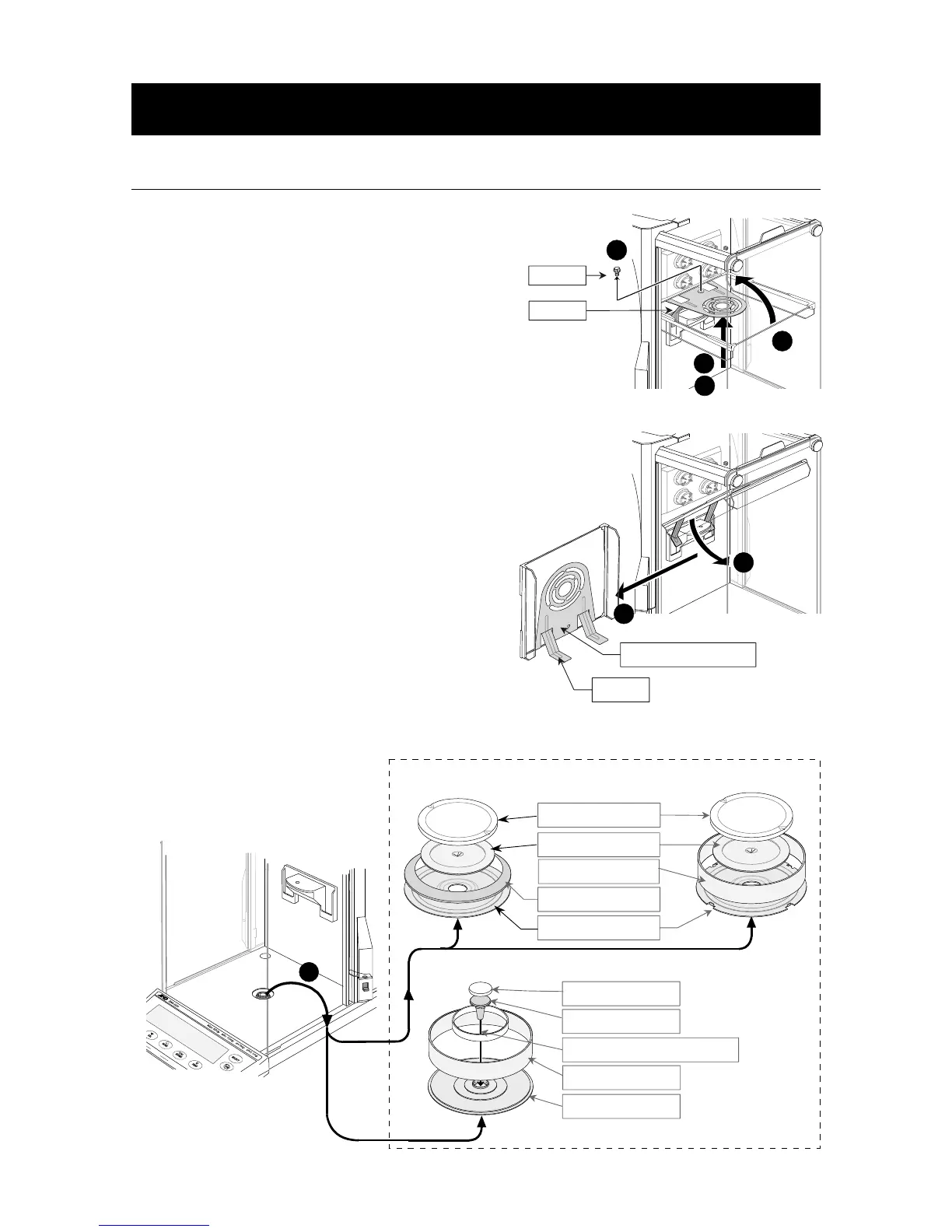

Remove the separation plate from the weighing
chamber of the BM balance.
NOTE Take care not to damage the separation
plate when removing or attaching it.
1 Support the separation plate and
remove the screw from the plate.
2 Lift the plate and remove the hooks.
3 Rotate the plate on the axis of the back edge.
Rotate the plate on the axis of the front edge.
4 Remove the plate from the chamber.
5 Remove the weighing pan and so on (refer to the figure below) from the BM balance.
1
3
1
3
2
4
Hook
Screw
Hook
Separation plate
5
ＢＭ－５００､ＢＭ－３００､ ＢＭ－２５２
ＢＭ－２００
ＢＭ－２０､ＢＭ－２２
Weighing pan
Breeze break
i
Dust plate
Pan support
Pan support
Weighing pan
Small fine range ring
Dust plate
Fine range ring
Fine range ring
