AND BM Series - 2-2 Assembling the Tester (BM-20;22 Models)

7

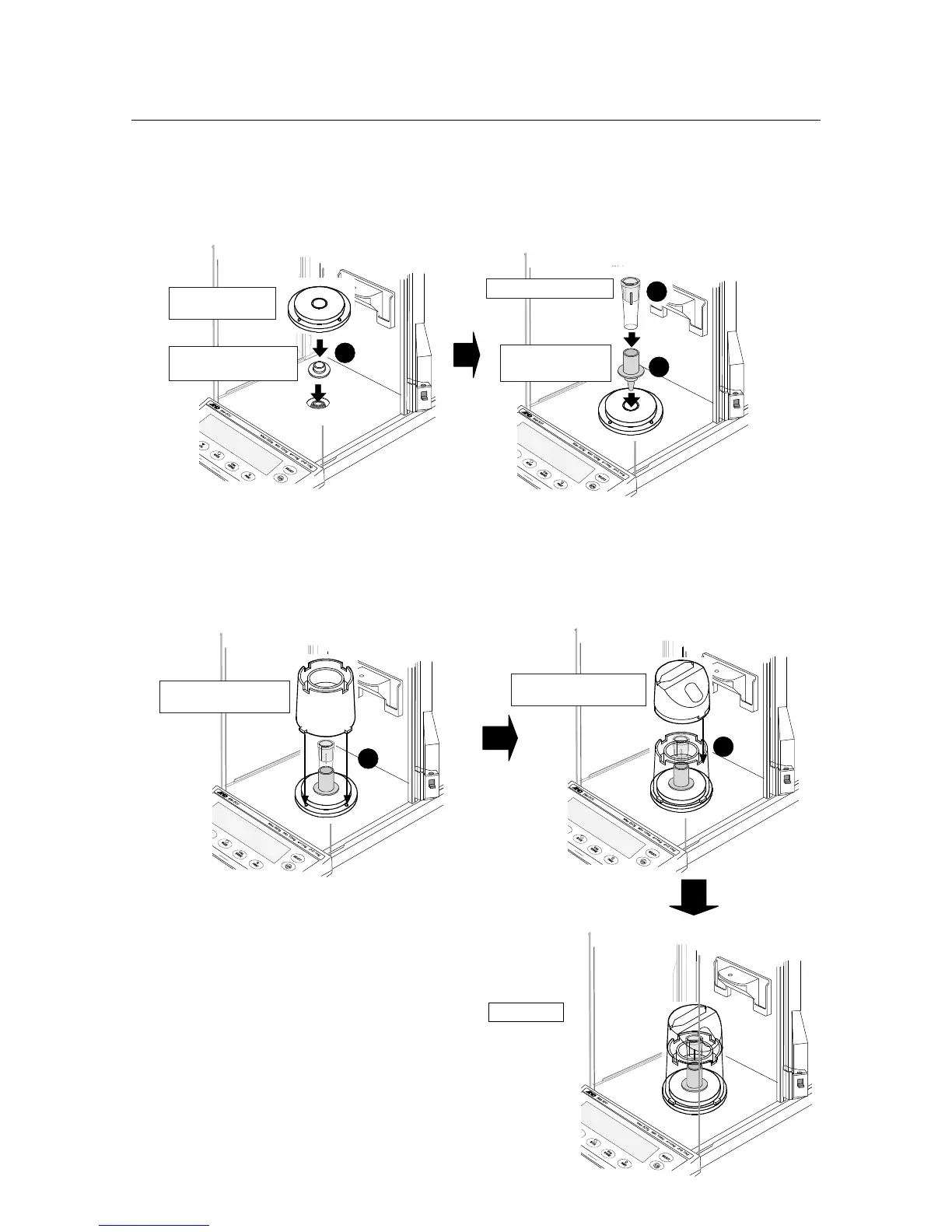

2-2 Assembling the Tester
BM-20 / 22
1 Install the center positioning boss and evaporation trap base on the BM balance.
2
Install the microfuge tube holder on the center positioning boss.
3 Insert the 5 mL sample cup into the microfuge tube holder.
4 Install the lower part of the evaporation trap on the evaporation trap base.
5 Install the upper part of the evaporation trap on the lower part to complete assembly.
Completed
1
2
3
Center positioning
boss
Evaporation
tra
p
base
Microfuge tube
holder
5 mL sample cup
4
5
Evaporation trap
(
U
pp
er
p
art
)
Evaporation trap
(
Lower
p
art
)
