Andamiro AVENGERS - Troubleshooting and Error Solutions; Target Wheel Motor and Sensor Error Troubleshooting

3) TARGET WHEEL MOTOR & SENSOR ERROR [E.51]
▶SOLUTION
※ 1
HOW TO TEST
TEST MODE → WHEEL MOTOR TEST
SELECT button - SHOOTING button -Sensor operation status : First digit of the PLAY FND
Detected Sensor : " _ " / Non-Detected sensor : " 0 "
2 Check connection of motor connector ( P1 )
3 Check assembly status of belt and motor ( P2 )
4
Check the dc voltage ( MAIN PCB / CN20 )
: PIN 1 : Over 11V , PIN 3 : Below 0.5V , PIN 6 : GND ,
PIN 2 : Operation state over 4.5V / Non-operation state below 0.5V
5 Replace MOTOR ( The sensor is in the motor,if the sensor is Not detected,replace the motor )
6 Replace MAIN PCB
CODE
MOTOR_BLDC
MZZZ0MOT160
MAIN PCB ASS'Y
AAV10PCB001
PART NAME
CODE
PART NAME
P2

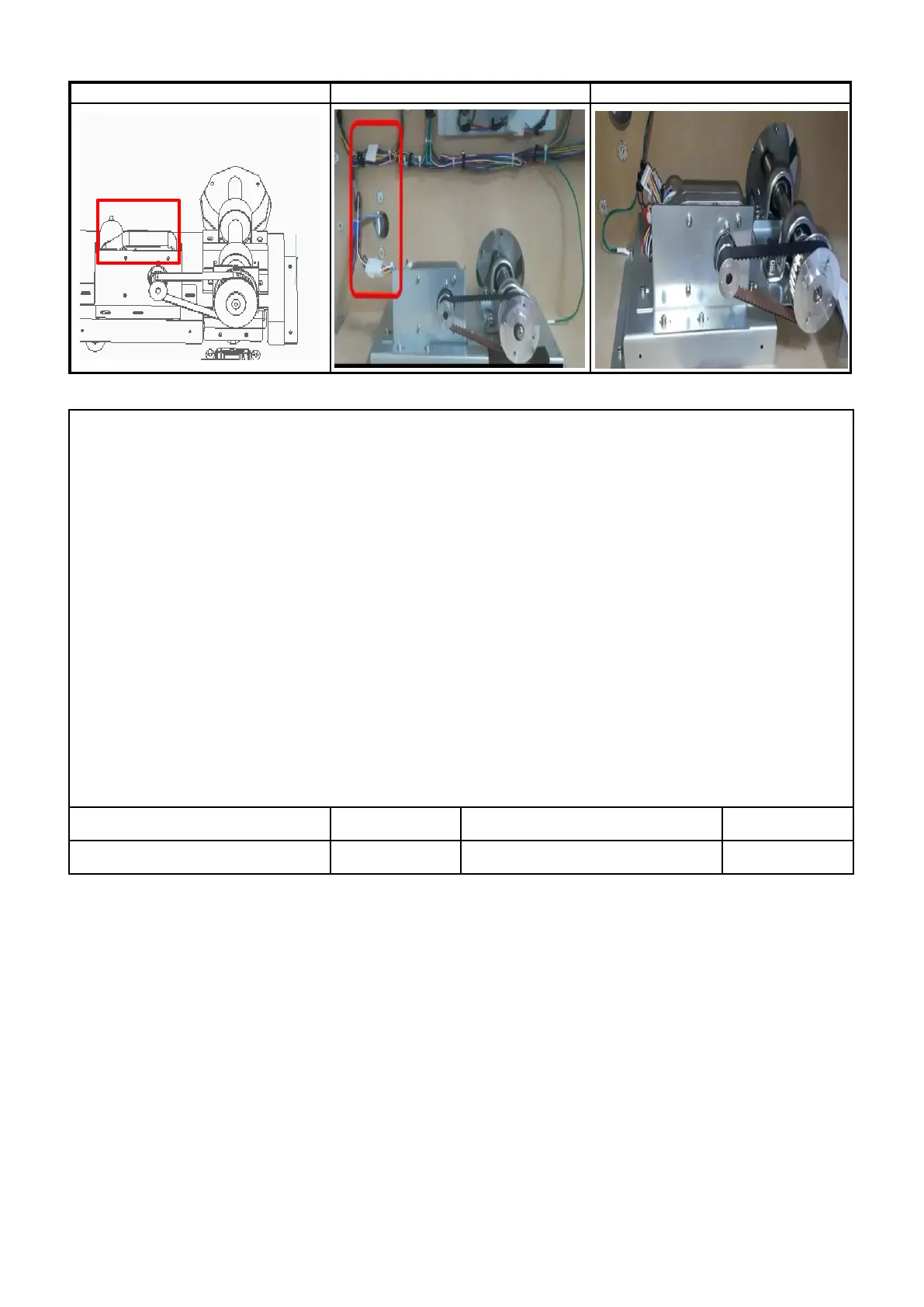

ERROR OR LOCATION
P1
- 18 -
