BIG WHEEL MOTOR ERROR [E.52],BIG WHEEL SENSOR ERROR [E.52]
▶SOLUTION : BIG WHEEL MOTOR ERROR [E.52]
1 HOW TO TEST : TEST MODE → BIG WHEEL TEST→ SELECT Button → SHOOTING button

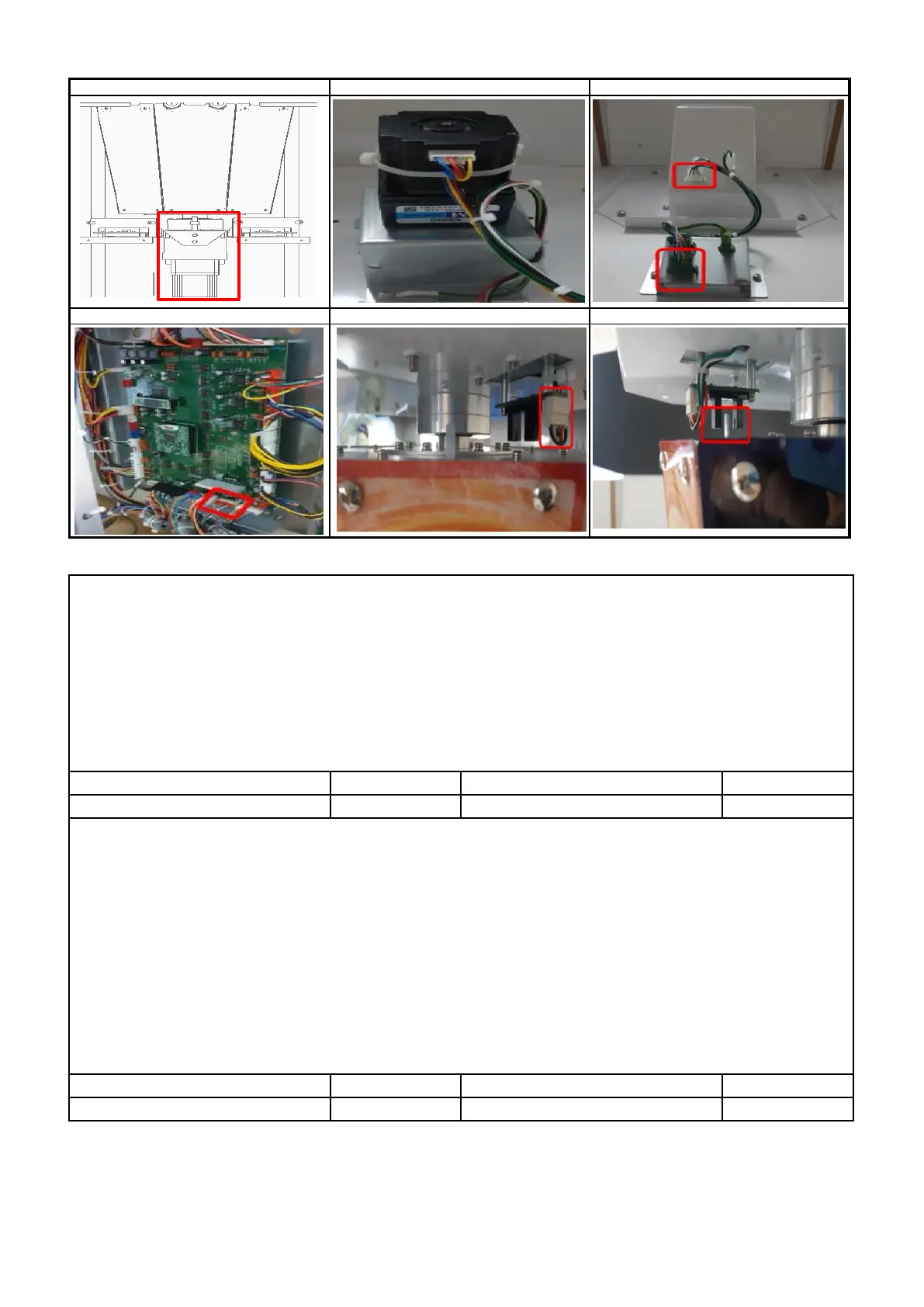

2 Check connection of motor connector ( p1 )
3 Check assembly status of motor ( P2 )
4 Check connection of join connector and motor connector ( CN17 ) ( P2,P3 )
5 Check DIP SWITCH setting status : 1,2,4,5,6 → OFF / 3 → ON
6 Replace MOTOR
7 Replace MAIN PCB
▶SOLUTION : BIG WHEEL SENSOR ERROR [E.52]
※ 1
TEST MODE → BIG WHEEL TEST→ SELECT button →SHOOTING button
Sensor operation status : Detected Sensor : flicker " _ " / Non-Detected sensor : " 0 "
2 Check connection of sensor connector ( P4 )
3 Check assembly status of sensor , Check position of sensor bracket ( Center ) ( P5 )
4 Check the dc voltage ( SENSOR PCB )
: PIN 1 : over 4.5V , PIN 2 : below 0.5V , PIN 4 : GND ,
PIN 3 : Detected Sensor over 4.5V / Non-detected sensor below 0.5V
Check the dc voltage ( MAIN PCB / CN17 )
: PIN 5 : Over 4.5V , PIN 6 : Below 0.5V , PIN 8 : GND
7 Replace MAIN PCB
