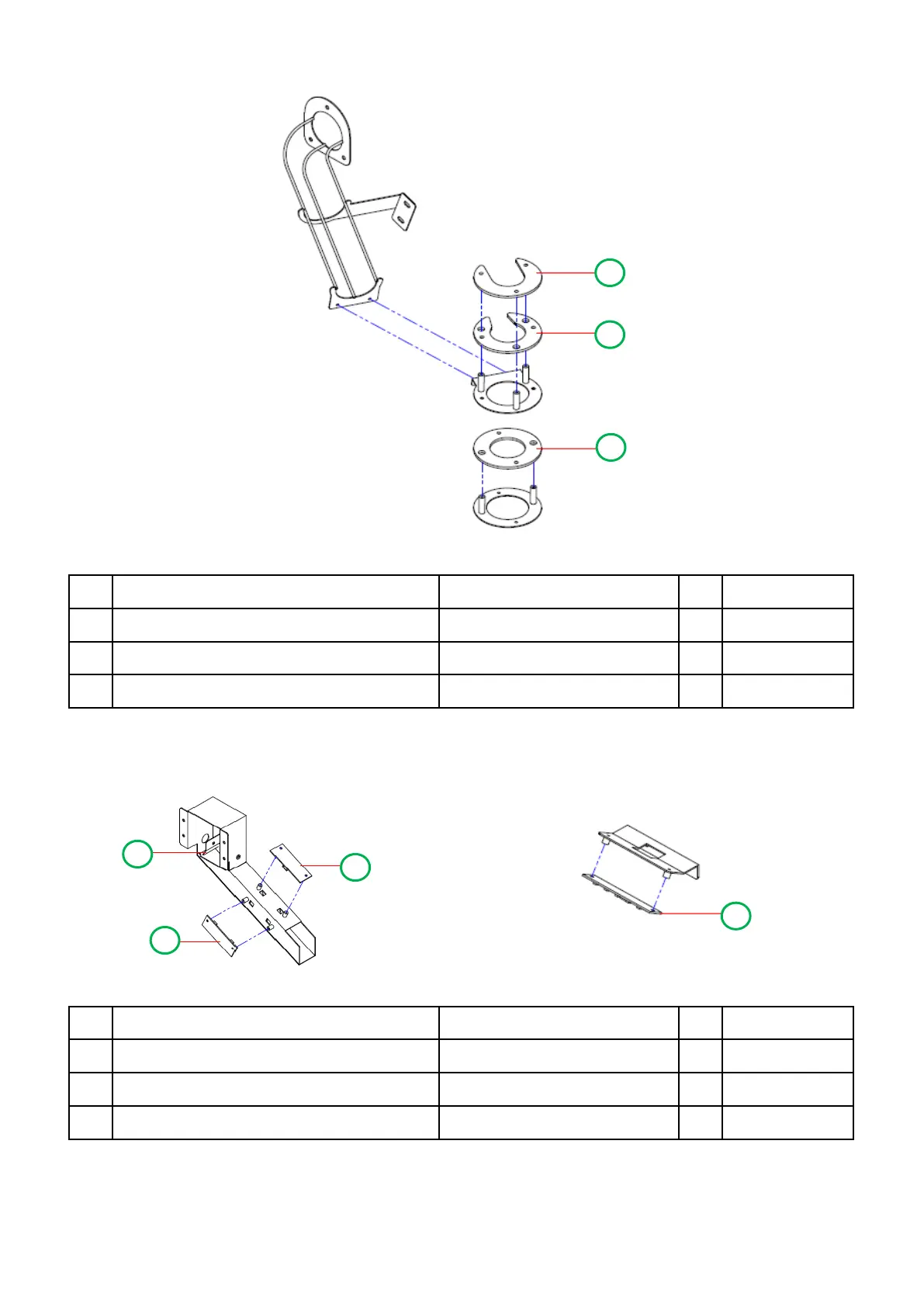

Andamiro AVENGERS - Exploded Views and Part Identification; Big Ball Inlet Guide Rail Part Details; Wheel Coin Inlet Rail Part Details; Target Wheel Lighting PCB Part Details

12) BIG BALL INLET GUIDE RAIL PART
13) WHEEL COIN INLET RAIL PART 14) TARGET WHEEL LIGHTING PCB PART
3
BIG BALL INLET GUIDE RAIL ACRYL-A
1
MAV20ACR043
PC 3T
NO
PART NAME
SPEC
Q'TY
CODE NO
3
LED PCB ASS'Y
ANGLE TYPE
1
AMUM0PCB005
1
WHEEL COIN INLET RAIL ACRYL
PC 1T
1
MAV20ACR007
2
CHUTE SENSOR PCB ASS'Y
IR SENSOR
2
ASAW0PCB001
NO
PART NAME
SPEC
Q'TY
CODE NO
1
BIG BALL INLET GUIDE RAIL ACRYL-C
PC 3T
1
MAV20ACR043
2
BIG BALL INLET GUIDE RAIL ACRYL-B
PC 3T
1
MAV20ACR042
3
2
1
3
2
1
2
- 36 -
