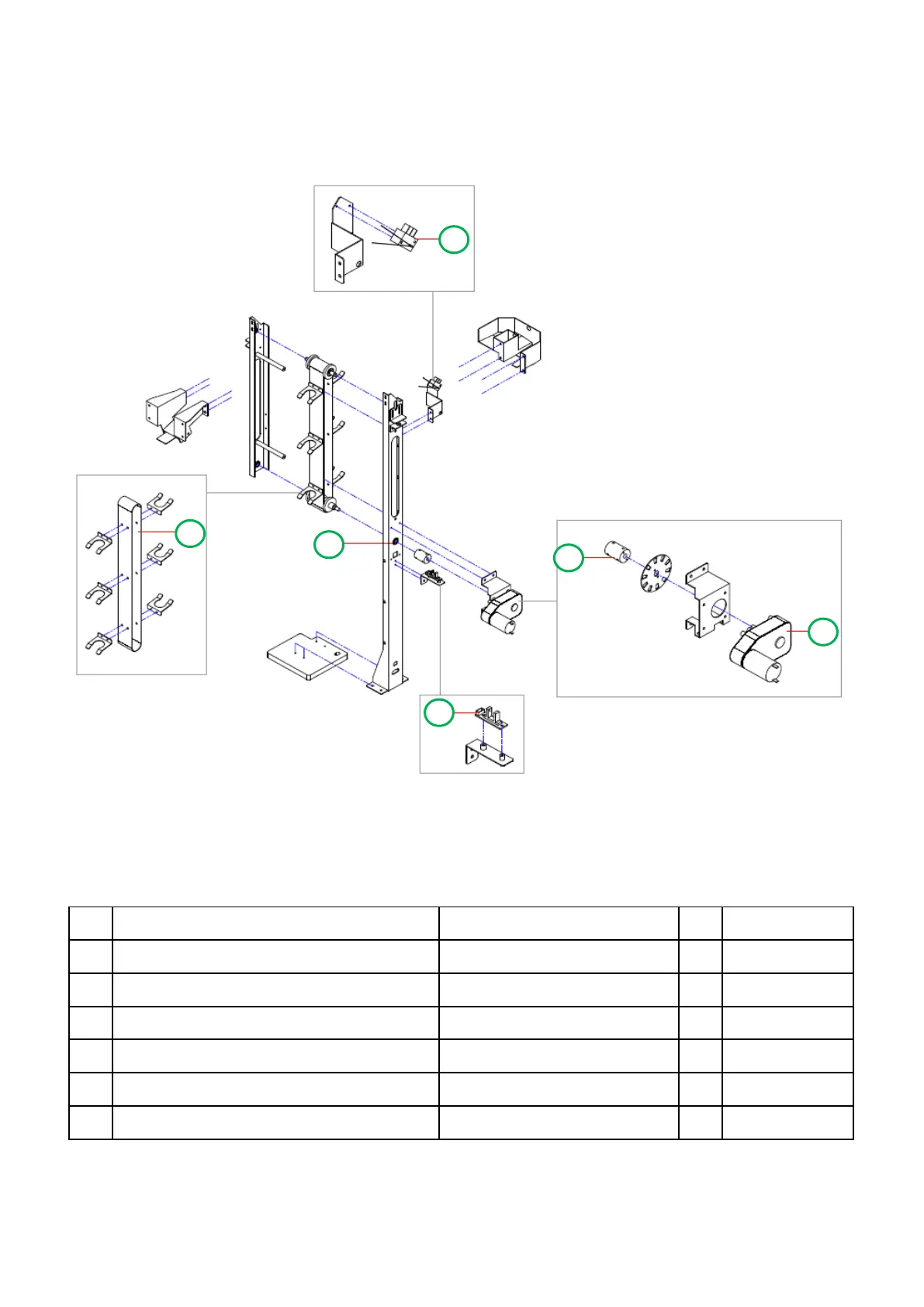

Andamiro AVENGERS - Exploded Views and Part Identification; Big Ball Elevator Component Details

15) BIG BALL ELEVATOR PART
6
PHOTO-INT1 PCB
ANGLE TYPE
2
AZZZ0PCB103
SPEC
Q'TY
CODE NO
4
MOTOR
KGV2-0200-3657U1
1
MZZZ0MOT161
5
MICRO SWITCH
CNR-05H-03 ZIPPY
2
MELE0MIC002
2
BIG BALL ELEVATOR BELT
PVC1.4Tx50Wx954.2L
1
MZZZ0BEL047
3
COUPLING
CR050
1
AZZZ0COP002
1
BEARING
F689ZZ
1
MZZZ0BEA068
NO
PART NAME
4
3
6
1
2
5
4
- 37 -
