Andamiro AVENGERS - Exploded Views and Part Identification; Big Ball Inlet Guide Rail Part Details; Target Wheel Component Details

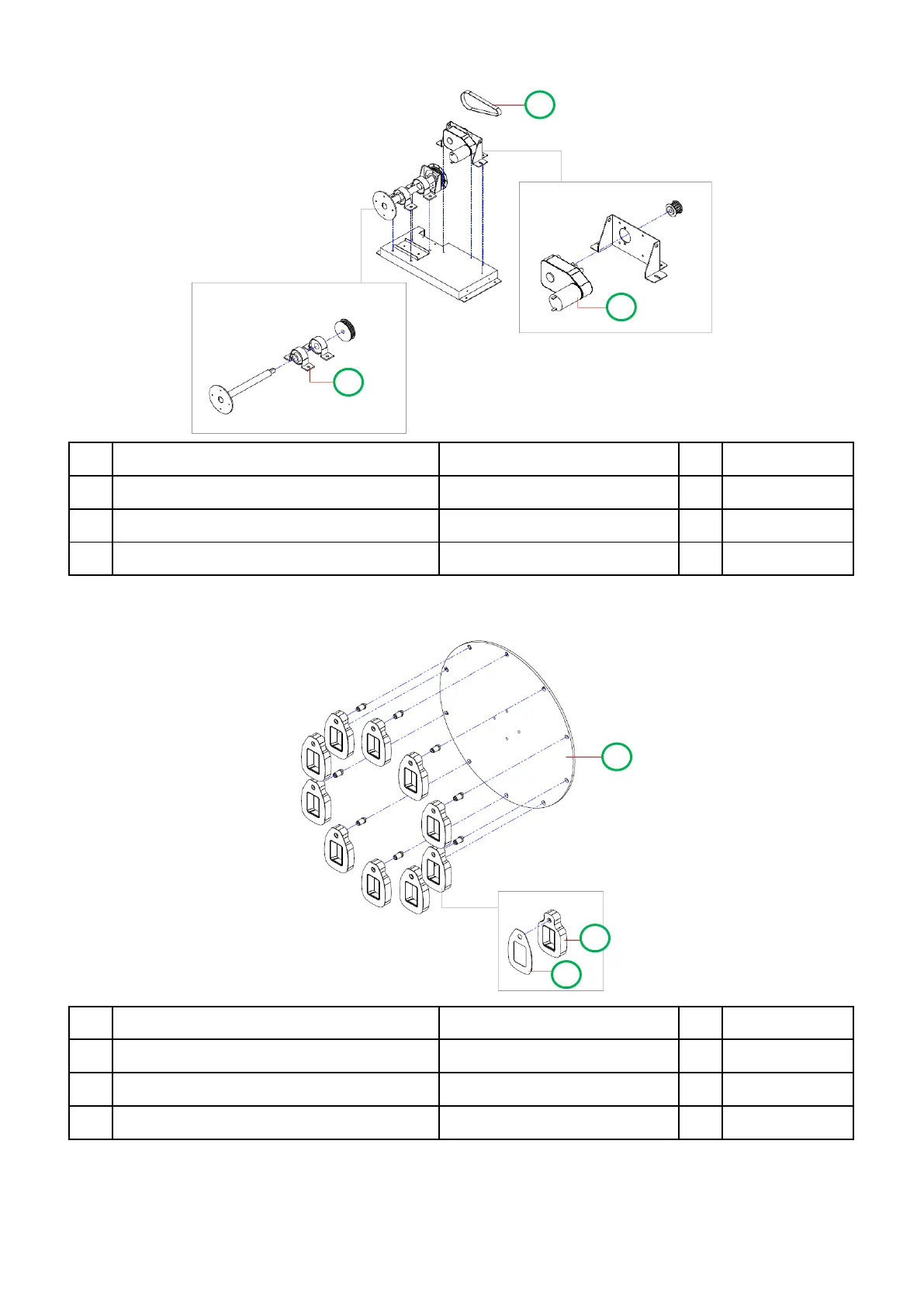

16) BIG BALL INLET GUIDE RAIL PART
17) TARGET WHEEL PART
3
TARGET MOLD
ABS 2T
10
MAV20PLA001
1
TARGET WHEEL BASE ACRYL
ACRYL 5T
1
MAV20ACR008
2
TARGET COVER ACRYL
PC 1T
10
AAV20ACP022
3
TARGET WHEEL MOTOR TIMMING BELT
148XL
1
MSAW0ZZZ004
NO
PART NAME
SPEC
Q'TY
CODE NO
1
BEARING
SAPP204
2
MZZZ0BEA089
2
MOTOR
KGV2-0500-3657U1_F TYPE
1
MZZZ0MOT160
NO
PART NAME
SPEC
Q'TY
CODE NO
2
1
3
1
3
2
- 38 -
