Step 2

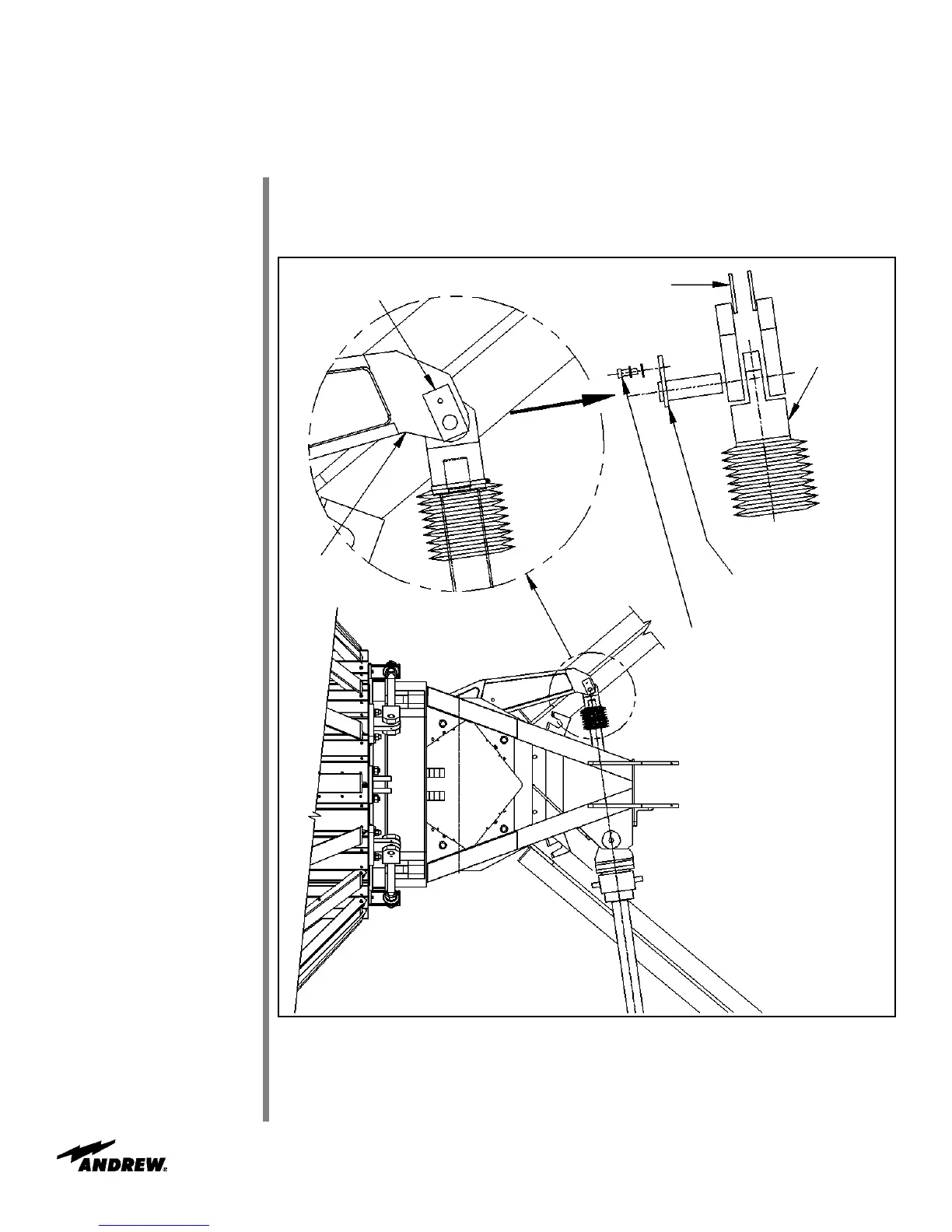

Attach Azimuth Jack rod end assembly to the Azimuth Jack Arm as shown in Figure 8.

• Use Azimuth Pin (302168) and 3/8 x 1 in. capscrew, washer and lock washer.

Installation Procedures

Figure 8

(AZ Jack Pin, 302168)

1-1/4” Washer, 9997-188 (2)

(AZ Jack, 302281)

AZ Jack Pin, 302168)

(302383)

3/8”x1.0 Bolt, 9963-632

Lockwasher, 9974-5

Washer, 9997-146
