Overview
Foundation
Preparation
10
Installation Procedures
This section provides installation procedures for the 7.6-Meter Andrew Earth Station
Antenna. The installation procedures include instructions on the following antenna com-
ponents:
• Mount • Reflector-to-Mount Assembly
• Reflector • Subreflector
• Enclosure
Before beginning the installation process on the ground mount assembly, ensure that
the foundation has been prepared. Foundation specifications are provided by Andrew
and may be used as a reference by civil engineering personnel when preparing the
foundation for local soil conditions. These specifications are available before the ship-
ment arrives by contacting the Customer Service Center or your Account Manager.

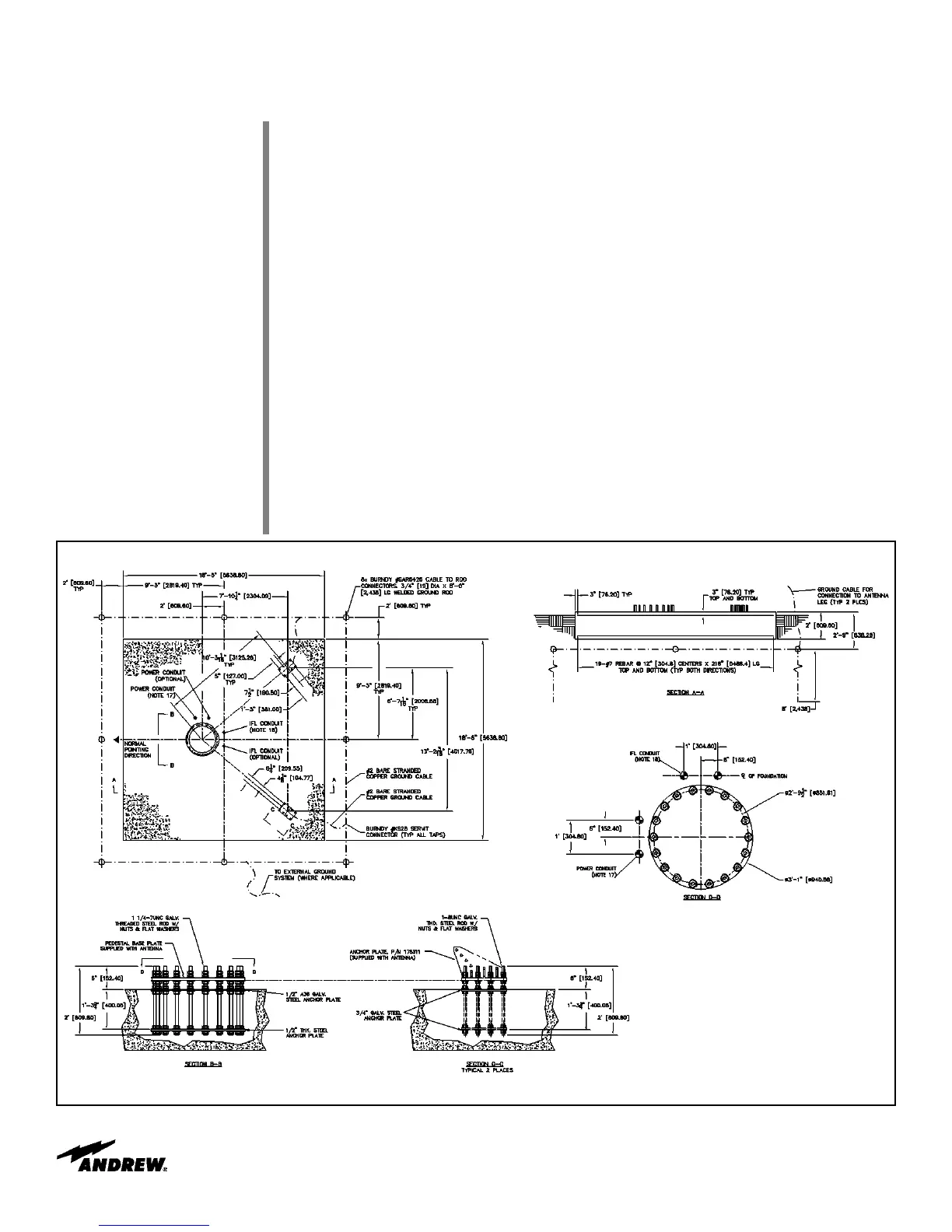

• Foundation should be dimensioned as detailed in Figure 1.
• Sweep foundation clear of any dirt or debris.
• To ensure smooth surface for mount, scrape foundation pad.
• Studs should extend 6 in. (152mm) above the ground and are 1-1/4 in.(32mm) diame-
ter
•
Apply Stick Wax (200852) to stud threads to ease later connections.
Installation Procedures
Figure 1
