Installation Procedures
Attach the reflector panels by placing them on the ribs and sliding them inward, carefully
guiding the rib flange between the skirt and panel. Place seam hardware (209236 &
9974-17) in the fourth hole from the outboard edge on both sides of the panel first, fin-
ger tight only. Then place all remaining hardware, finger tight only. then attach skirt to rib
hardware as shown in Figure 15, View B-B, finger tight only. Panels should be added
opposite to each other to balance the enclosure assembly (first attach panel 1 and panel
2, then panel 3 and panel 4, and so on).
Loosely attach Lifting Tabs (206278), located on the 8th and 10th seam holes of the
panel. Attach 90 deg. apart from each other (refer to Fig.15, View `D’ and Figure 15A).
Check each reflector panel fit to ensure that seam widths and panels are not overlap-
ping. All panel seam hardware should be loose before Theodolite Installation and
Calibration as outlined later in this manual.

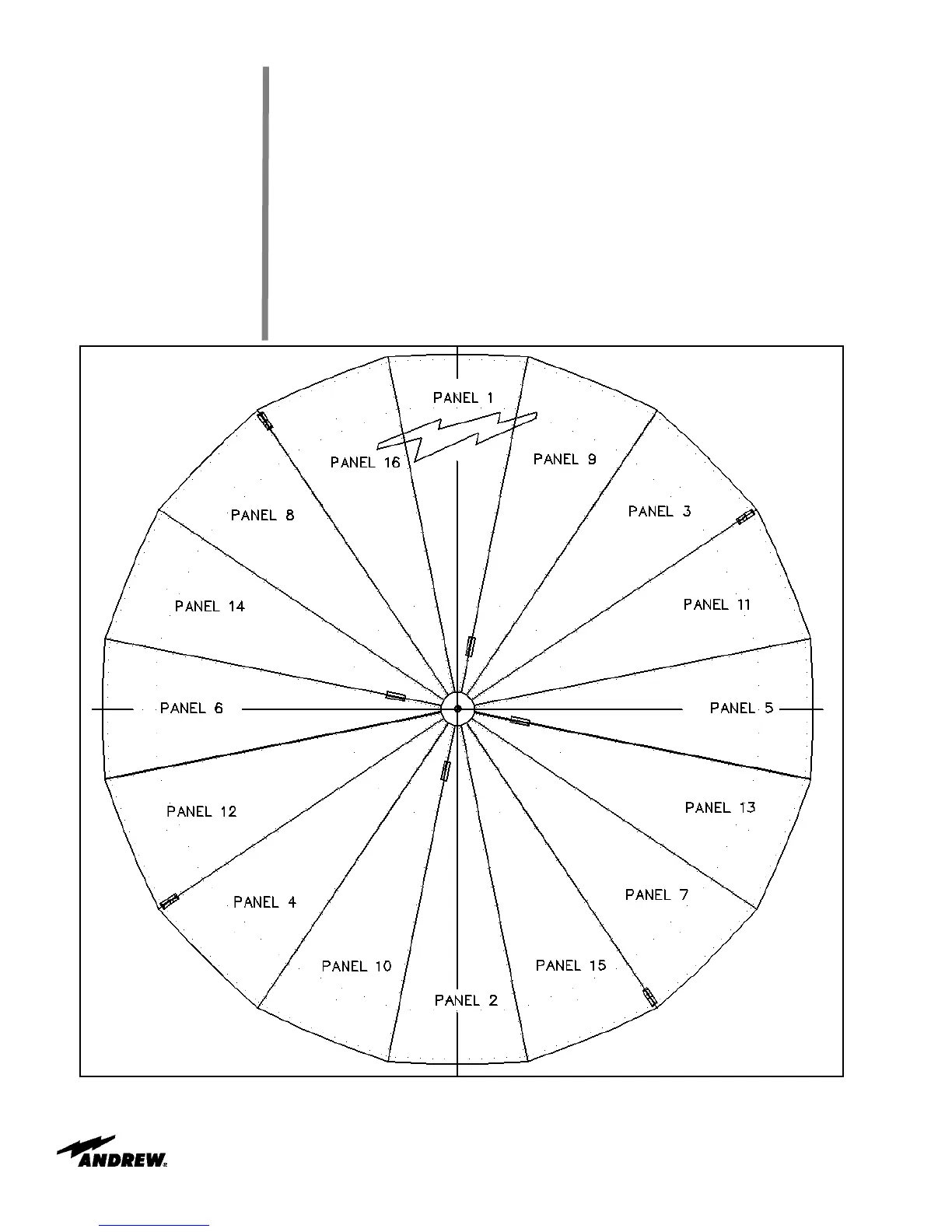

Figure 15A
