Step 3
Step 4
37
Installation Procedures
Refer to Figure 23, View A-A and Figure 24. Loosely attach Subreflector Strut Supports
(300089) to panel segements 8-16, 3-11, 7-15 and 4-12 as shown. Replace screws,
washers, lockwashers and nuts previously installed during reflector assembly.
NOTE:
Subreflector Strut Supports should be positioned according to Step 3 and at the 2nd and
3rd seam holes from the outboard end of the rib. Refer to Figure 25.
Position and loosely attach pre-assembled Subreflector/Floating Ring assembly to corre-
sponding mounting holes in Subreflector Strut Brackets as shown in Figure 23 using sup-
plied bolts, rectangular washers, lockwashers and nuts. Attach temporary nylon slings,
being careful not to damage subreflector assembly.

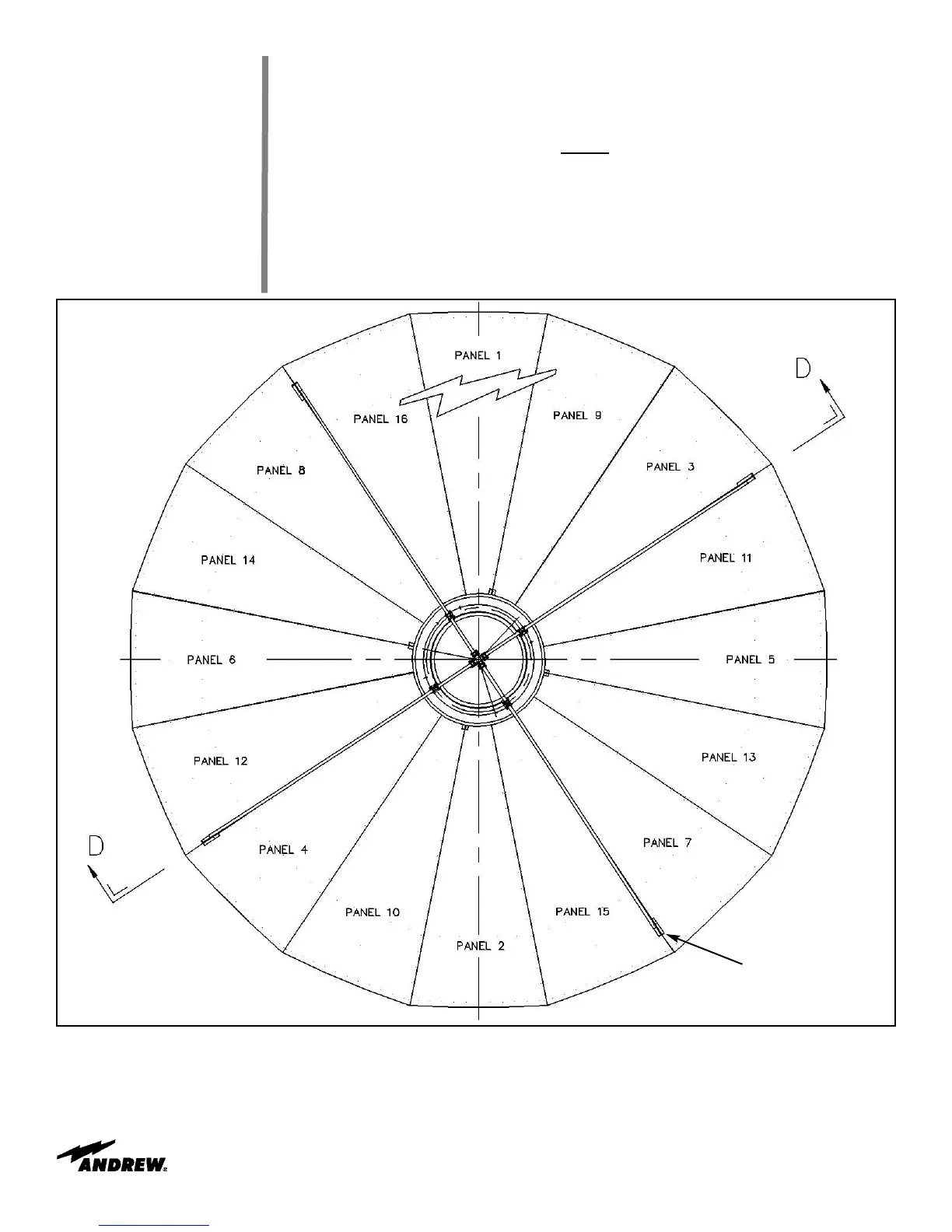

Figure 24
Subreflector Strut Support,
300089 (4 Places)
(Figure 25)
(Figure 25)
To Next Page
