Step 9
43
With all 24 transponder signals of approximately equal amplitude appearing on the
spectrum analyzer screen determine the specific antenna system and satellite parame-
ters. Rotate the feed assembly as required until the appropriate (odd or even) transpon-
der signals are maximized.

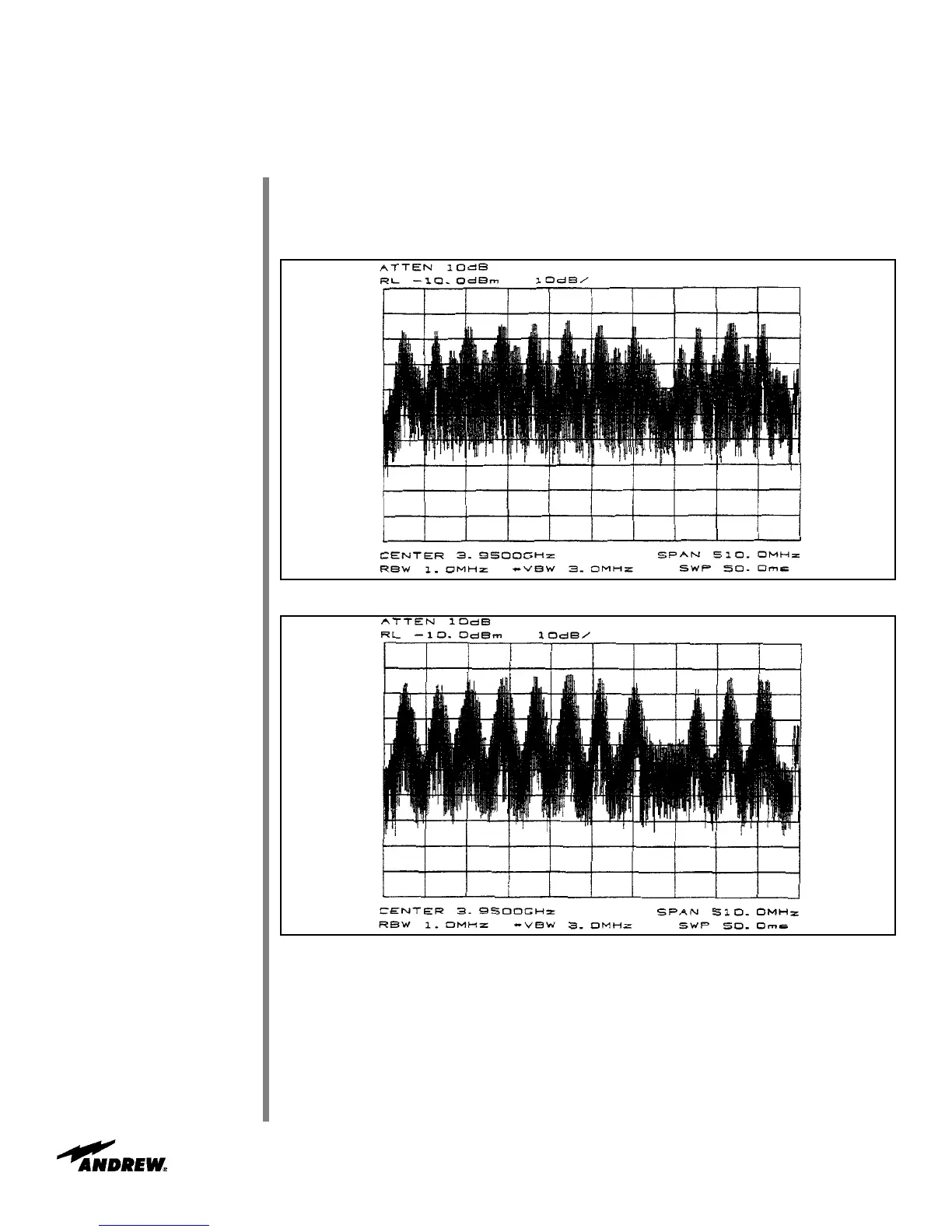

Figure 4-5: Maximizing Odd Transponders
Figure 4-6: Optimum Polarization Setting
Operation
