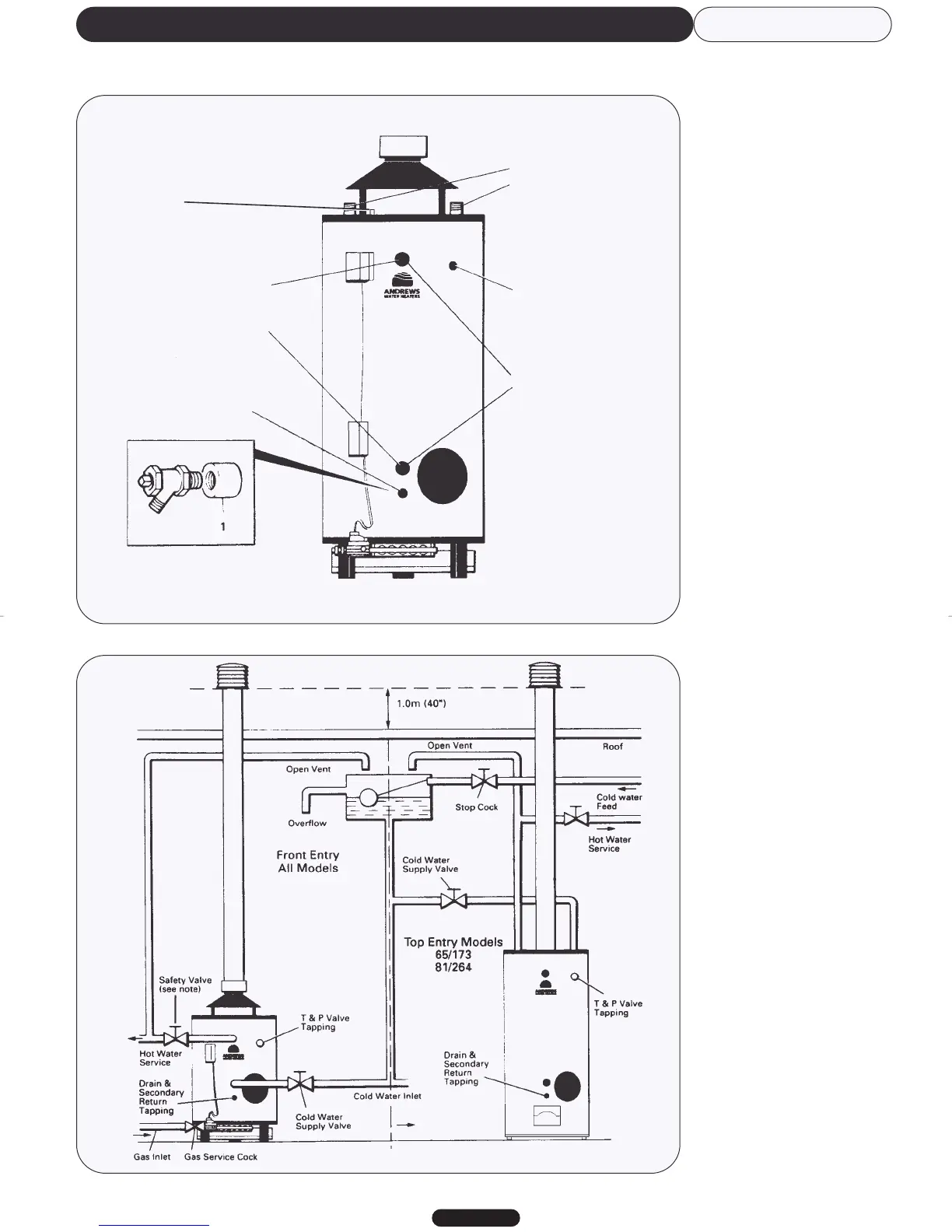

INSTALLATION SECTION 3
WATER
CONNECTIONS
Fig 11.
Fig 12.
All connection sizes are
shown on page 5
Automatic Air Vent
32/143
62/341
54/418
54/440
Front
Cold Inlet/Hot Outlet
All Models
Drain &
Secondary Return
Tapping
Optional Rear
Cold Inlet/Hot Outlet
Tappings 32/143 only
T&PValve Tapping
Optional Top
Cold Inlet/Hot Outlet
on models
65/173
81/264
