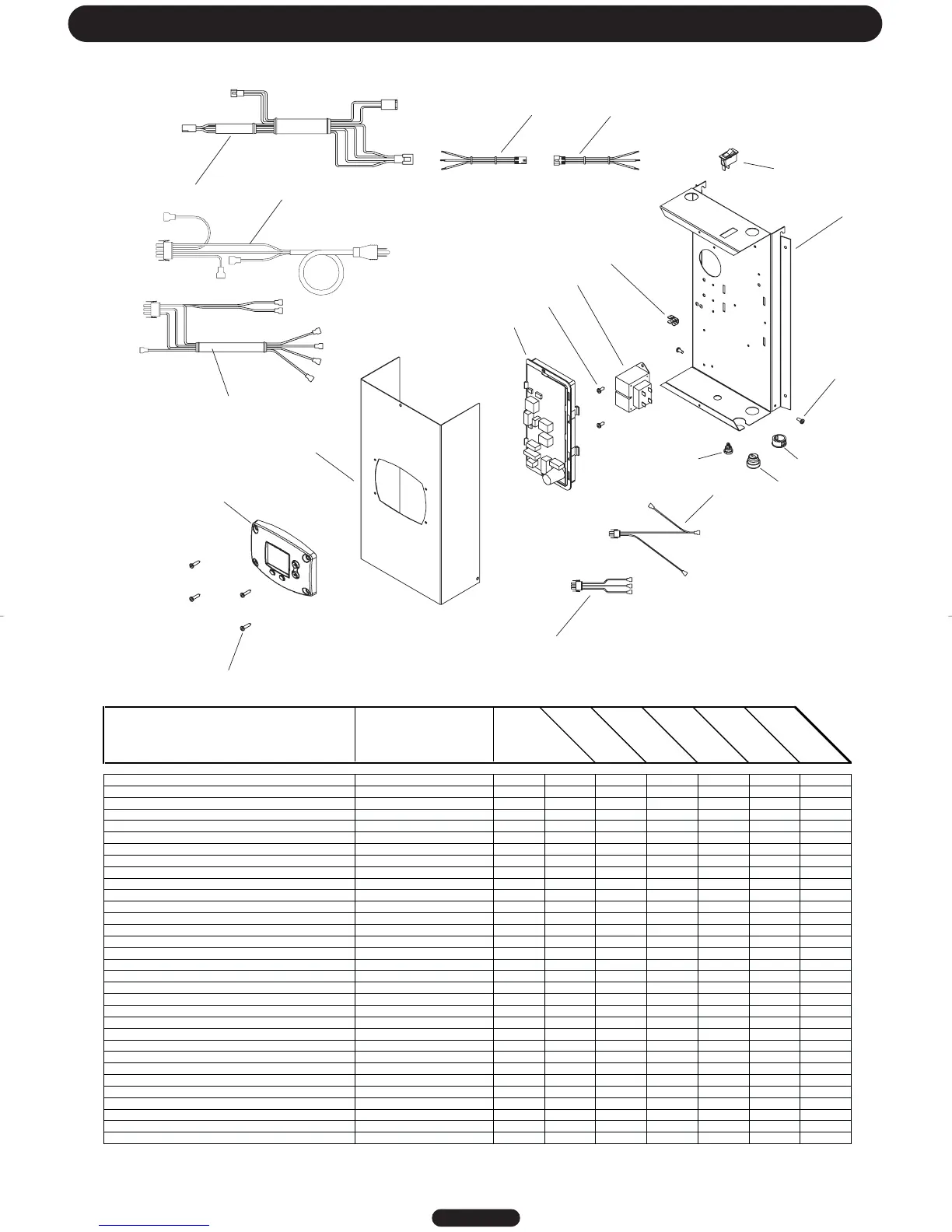

APPENDICES
15B
1B
3B
4B
5B
6B
7B
8B
9B
13B
14B
17B
18B
16B
2B
19B
20B
11B
10B
12B
Description Interpart Movex Number Ref No
3
2/
1
43 A
UT
O
65/173 AUTO
8
1/
2
64 A
UT
O
6
2
/3
4
1AUTO
5
4
/4
4
0
A
UTO
Control Box and Wiring Assy. (26) Z129 26 X
Lower T-Stat Sensor (25) Z130 25 X
Control Box and Wiring Assy. (26) Z131 26 X
Control Box and Wiring Assy. (26) Z132 26 X
Upper T-Stat Sensor (28) Z133 28 X X
Lower T-Stat Sensor (25) Z134 25 X X
Control Box and Wiring Assy. (26) Z135 26 X X
Upper T-Stat Sensor (28) Z136 28 X X
Lower T-Stat Sensor (25) Z137 25 X X
Control Board (T-Stat Board)S9360B1010C (3b) Z138 3b X
Control Board (T-Stat Board)S9360B1015C (3b) Z139 3b X X X X
Control Display (1B) Z140 1b X X X X X
Transformer (230V/24V) (13c) Z141 13c X X X X X
Sensor Well (23) Z142 23 X X X X X
Main Power On/Off Switch (7b) Z143 7b X X X X X
Damper - 6" Effikal PCF Series (5) Z144 5 X X X
Damper - 8" Effikal PFC Series (5) Z145 5 X
Damper - 10" Effikal PCF Series (5) Z146 5 X
Gas Valve - VR8601CB1012 (4a) Z090 4a X X X X X
Pilot Assembly. (PSE-46N) (8a) Z147 8a X X X X X
Pilot Tubing (Supply Pipe) - Alum. 24" (10a) Z148 10a X X X
Pilot Tubing (Supply Pipe) - Alum. 30" (10a) Z149 10a X X
Main burner Injector - 2.40 mm (9a) Z150 9a X(5)
Main burner Injector- 2.58 mm (9a) Z151 9a X(5)
Main burner Injector- 3.25 mm (9a) Z152 9a X(5)
Main burner Injector - 3.18 mm (9a) Z153 9a X(7)
Main burner Injector - 3.25 mm (9a) Z152 9a X(9)
