PARTS LIST AND ILLUSTRATIONSSECTION 8
36
Unvented System kit
Ref. Part No. Description Qty
B228 Unvented Systems Kit Complete 1
C1 C784 Combined Reducing Valve/Strainer 1
C2 C785 Check Valve 1
C3 C786 Expansion Valve 1
C4 C782 Expansion Vessel (25 Litre) 1
C5 E242 Temperature/Pressure Relief Valve 1
1
⁄2” 1
C6 C856 1
1
⁄2” Square Equal Tee 1
C7 E326 Tundish from Expansion Valve and T/P Valve 1
B173 Wall Mounting Kit (Optional)
C8 C788 Hose Assembly 1
C9 C787 Wall Bracket Assembly 1
C1
C8
C9
C2
C3
C7
C5
C4
C6
CSC39, 59, 78 & 93, CSCL39, 59, 78 & 93 Parts List

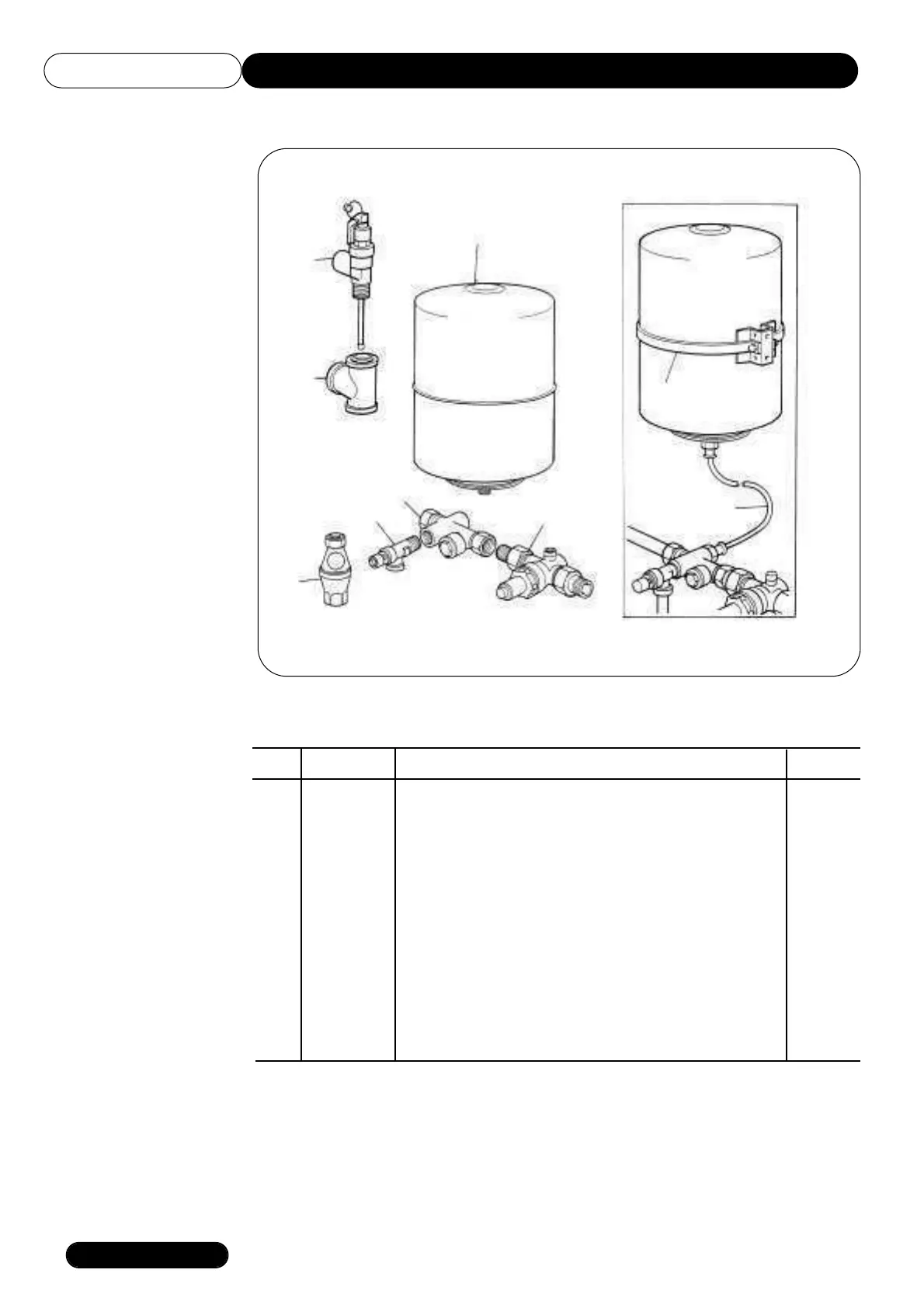

CSC39, 59, 78 & 93, CSCL39, 59, 78 & 93 Unvented System Kit
