Anet A6 - Back Fixing Plate Installation

Name
QTY
Note
Name
QTY
Note
Back Fixing Plate
1
Y Limited
Switch
1
Y Motor Fixing
Plate
1
M2 Screw
2
Y Motor Support
1
M3*18 Screw
4
Y Limited Swtich
Fixing Plate
1
M3 Nut
4
Y Motor
1
M3*12 Screw
4
Back Fixing
Plate
Y Motor Support
Y Motor Fixing Plate
Y Limited Switch
Y Limited Swtich
Fixing Plate
Y Motor

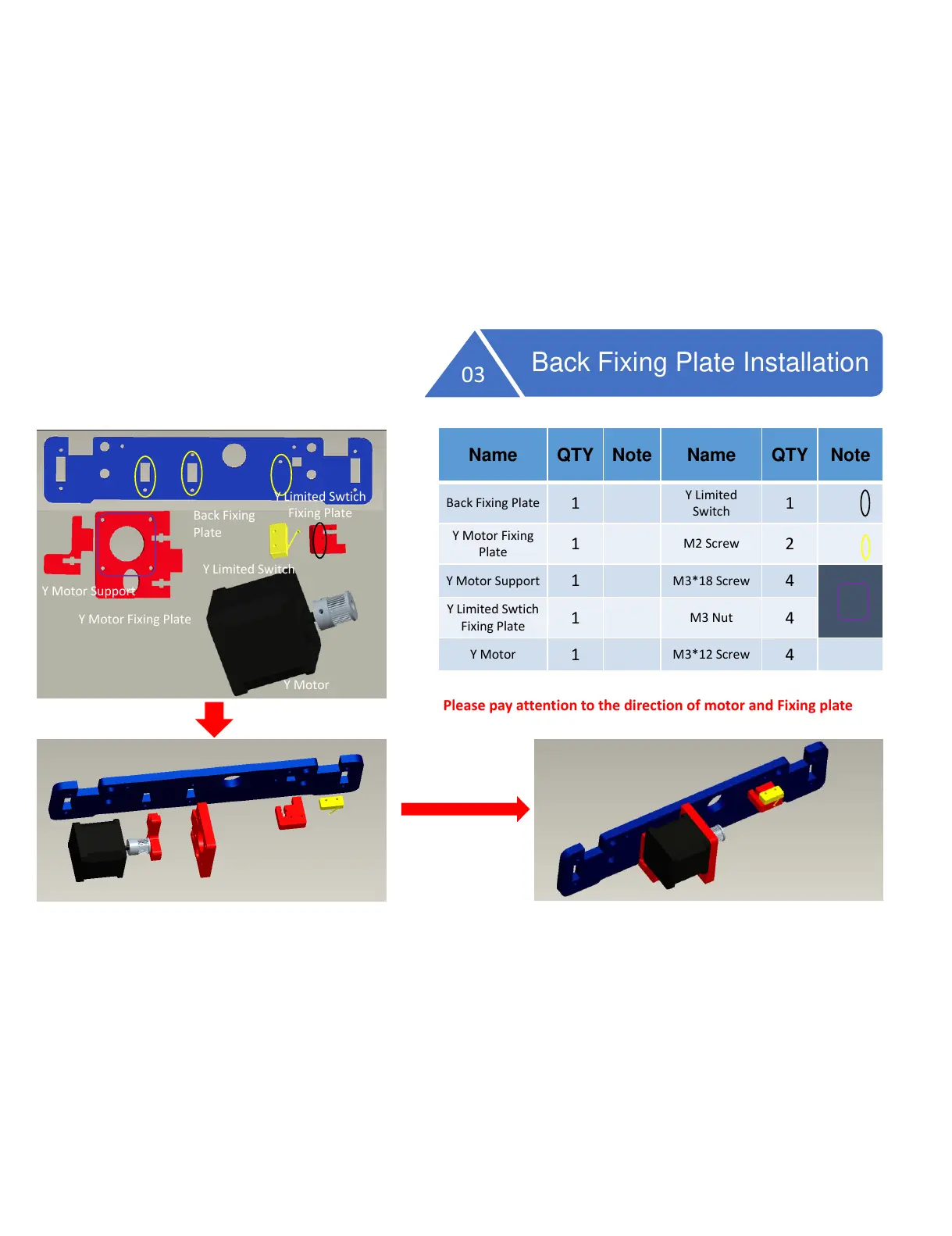

Back Fixing Plate Installation
03
Please pay attention to the direction of motor and Fixing plate
