Name
QTY
Note
Front Fixing
Plate
1
Y Belt Bearing
Support
1
M3*18 Screw
2
M3Nut
2
Front Fixing Plate Y Belt Bearing Support

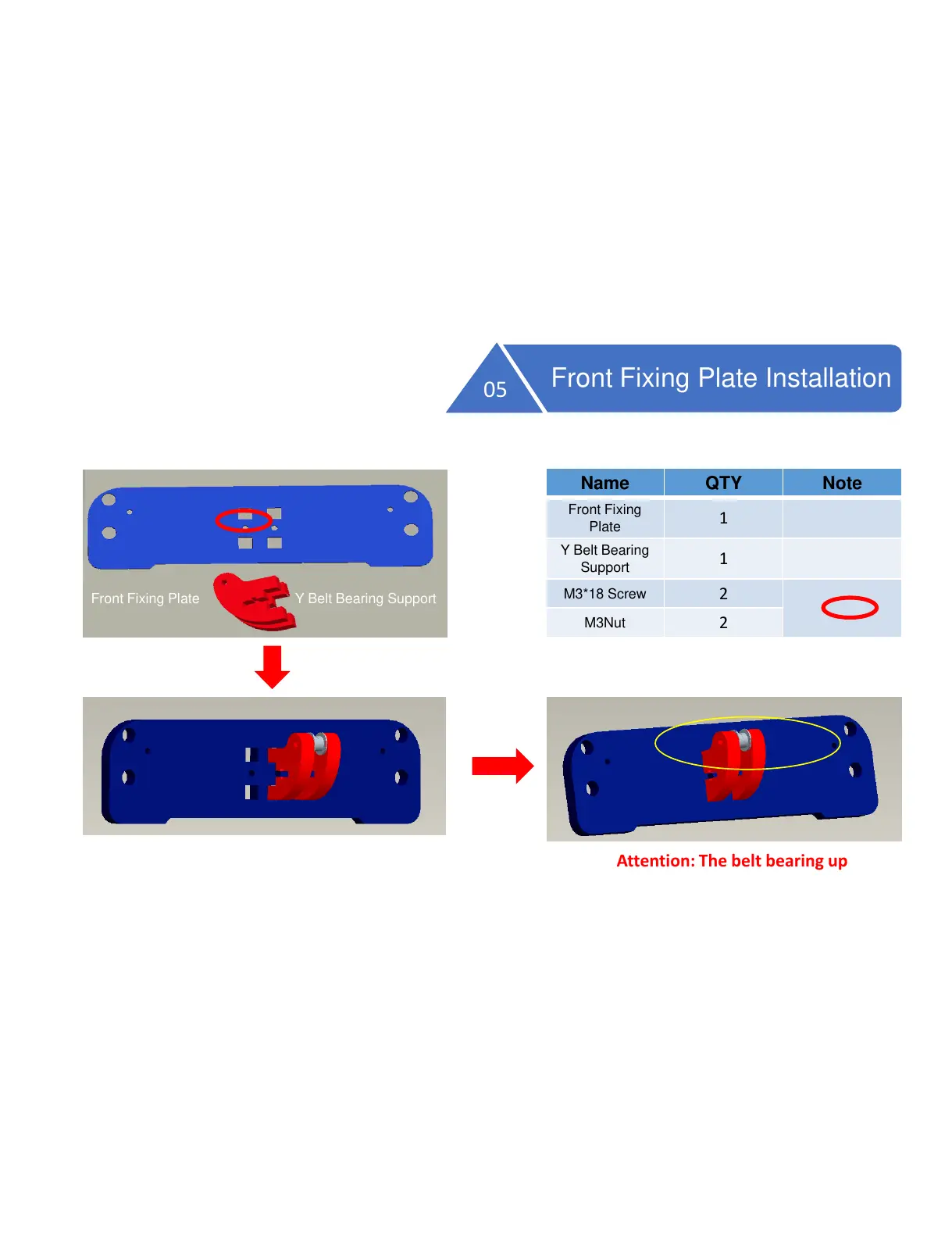

Front Fixing Plate Installation
05
Attention: The belt bearing up
