Name
Note
Name
Note
Left&Right Z Motor
Fixing Plate
M3*18 Screw
Z Motor Support
M3 Nut
Z Motor
M3*12 Screw
The Small hole should face outward

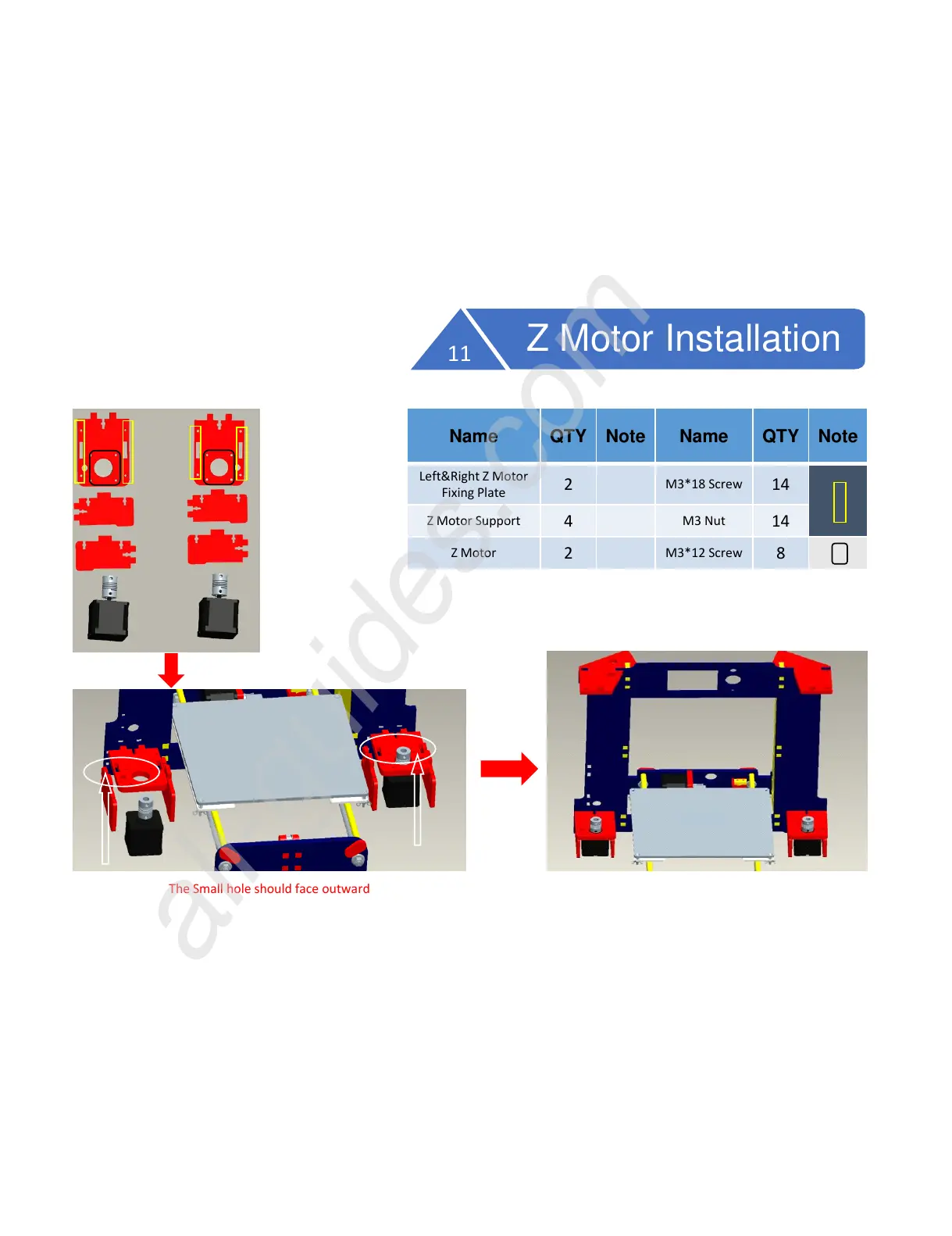

Z Motor Installation
11
