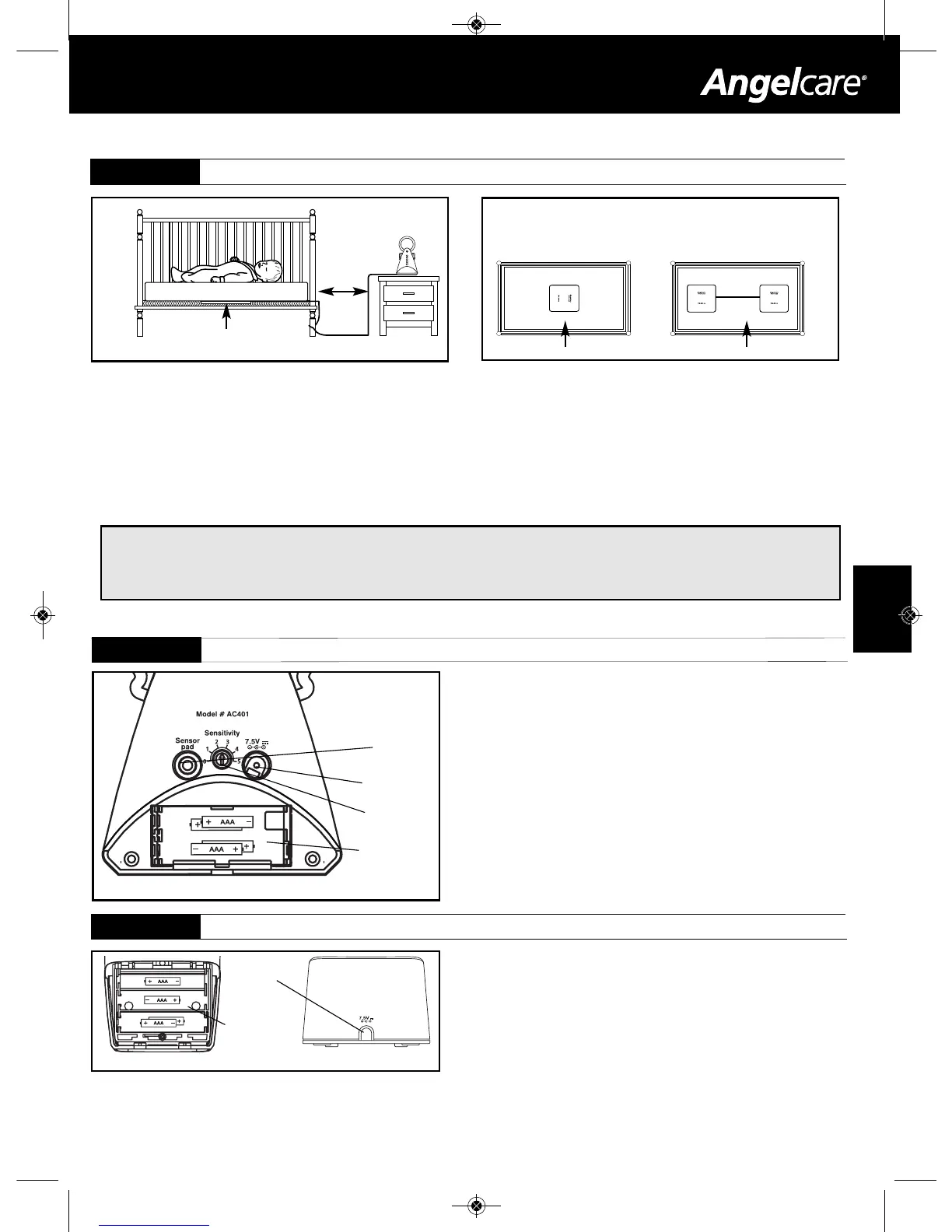

HOW TO OPERATE YOUR ANGELCARE
®
MONITOR
Charger adapter
socket
STEP 1
• Connect the long sensor pad cord into the nursery unit.
• Insert 4 AAA regular batteries (not included) into nursery unit (for battery
backup in case of power failure).
• Connect AC adapter to nursery unit and plug adapter into an electrical
outlet in the baby’s room.
• After both units are properly installed you may adjust the sensor pad
sensitivity level. The sensitivity dial shows the level 1 to 5, where 1 is less
sensitive and 5 very sensitive. It is preset between level 2,5 and 3. Should
there be a false alarm, increase the sensitivity by a half level during testing
until it works perfectly for your mattress and bed size.
• Insert 4 AAA NIMH rechargeable batteries (included) into parents unit.
NEVER use regular alkaline batteries, they may explode.
• Connect AC adapter to parents unit charger and plug adapter into an
electrical outlet. Let charge for 15 continuous hours before using the
monitor for the first time.
Charger adapter
socket
Sensor pad cord
socket
Adapter socket
Sensor pad
sensitivity dial
I sensor pad 2 sensor pads
POSITION OF SENSOR PAD UNDER MATTRESS
Crib center Crib center
• Position the sensor pad as shown above. Make sure the printed side faces up. Do not place any bedding between the mattress and the sensor pad.
• Secure the sensor pad cord to crib using a tie wrap. Run the cord on the floor to ensure it is out of the baby’s reach.
•The sensor pad must rest on a completely flat and rigid surface.Place a 6mm (1/4'') thick plywood board to cover the full size of the crib or with
minimum dimensions of 28cm (11'') X 28cm (11'') X 6mm (1/4'') between the crib base and mattress,when using one sensor pad.The plywood
will push the sensor pad into the mattress and keeps the contact between the sensor pad and the mattress, should the baby move around.
Make sure the sensor pad’s cord passes underneath the mattress as shown above.
• The sensor pad works with all baby bed sizes and all mattresses, except memory foam mattresses.. You will have to test your sensor pad on
STEP 13.
Keep at
least 1 m
apart
Sensor Pad(s) 1 or 2
INSTALLATION OF THE SENSOR PAD UNDER THE MATTRESS
STEP 2
INSTALLATION OF THE NURSERY UNIT
Battery
compartment
STEP 3
INSTALLATION OF THE PARENTS UNIT
Battery
compartment
(Available in certain countries only)
STRANGULATION HAZARD. Keep the adapter cord and the sensor pad cord out of the reach of children. Because of the
serious strangulation risk to infants and toddlers, parents and caregivers should never place the nursery unit within 3 feet
(1 metre) of a crib.
