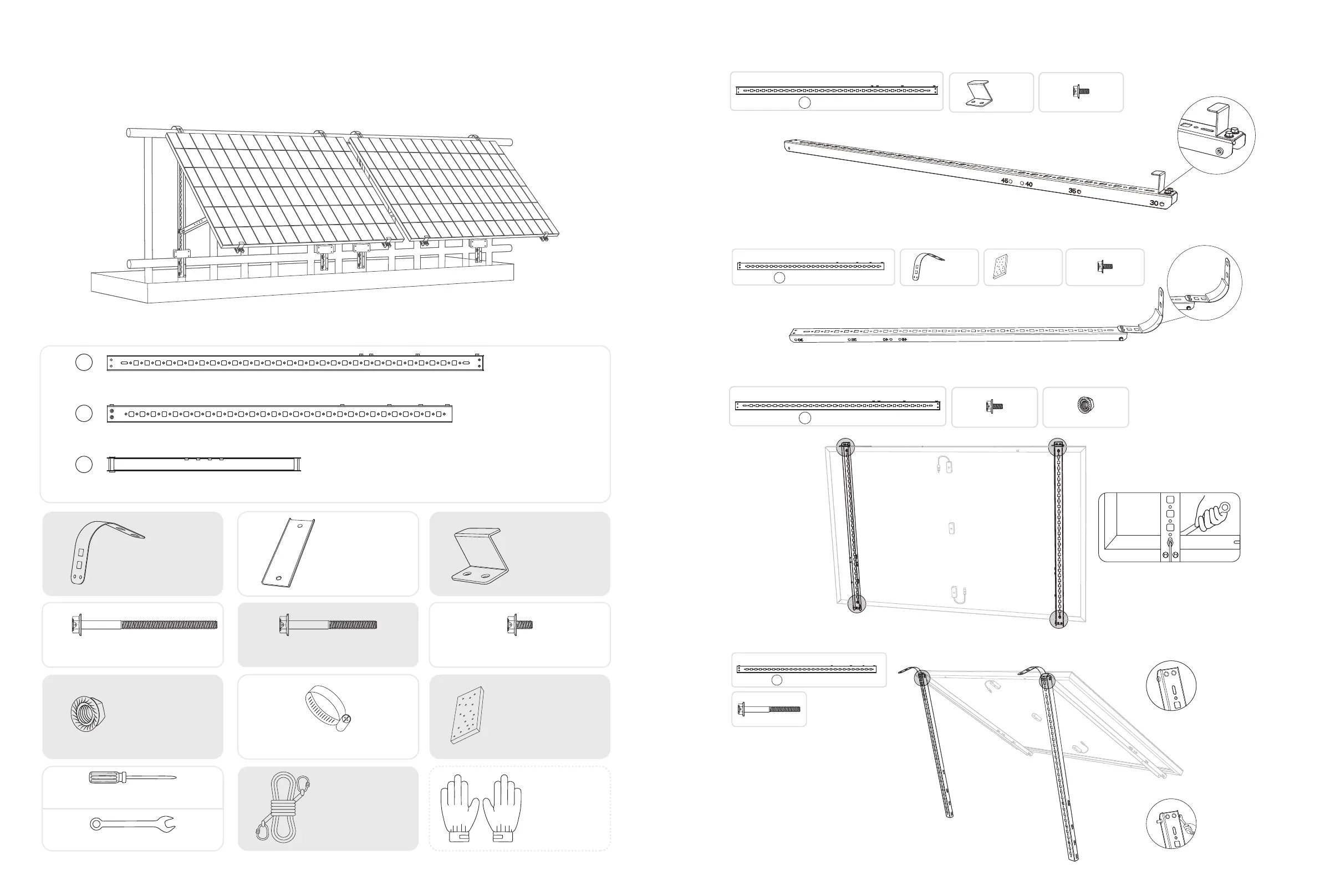

On a Balcony (1.2m/3.9ft or Above)
• Make sure the solar panel can extend over the balcony railing.
• Solar system modules weigh 61.5/58.5kg, so make sure your balcony can support them.
Option 1: 30°, 35°, 40°, and 45° Inclination Angles
What You Need
HG I
Solar Panel Support Beam (×4)
Vertical Support Scaolding (×4)
Lower Support Beam (×4)
D
E
F
J
K
L
U-Shaped Rack (×4)
M6×100 Hexagon Flange Bolt (×16) M6×65 Hexagon Flange Bolt (×12) M6×12 Hexagon Flange Bolt (×26)
Fastening Clamp (×8)
Limit Support (×4)
M6 Flange Nut (×20) 304 Stainless Steel Hose Clamp (×10)
Silicone Buer Pad (×4)
C
mm
618
B
mm
110 0
A
mm
1200
M
N
O
Phillips Screwdriver
Hexagon Wrench
Mounting Auxiliary Rope Work Gloves
(Not included)
1. Attach the limit supports to the numbered end of the solar panel's support beams.
Note: Make sure that the direction of the limit support is up, as shown in the figure.
F x2
Limit Support
I x4
M6×12 Hexagon Flange Bolt
A x2
Solar Panel Support Beam
mm
1200
2. Place the silicone buer pads onto the U-shaped racks, then mount the U-shaped racks to the vertical support scaoldings.
I x4
M6×12 Hexagon Flange Bolt
B x2
Vertical Support Scaolding
mm
110 0
D x2
L x2
U-Shaped Rack
Silicone Buer Pad
3. Mount the solar panel support beams on the solar panel.
I x4
M6×12 Hexagon Flange Bolt
J x4
A x2
Solar Panel Support Beam
mm
1200
M6 Flange Nut
4. Install the vertical scaolding and solar panel support beams without tightening the screws.
M6×65 Hexagon Flange Bolt
H x2
B x2
Vertical Support Scaolding
mm
110 0
