PAM4 Skew Adjustment between MSB and LSB

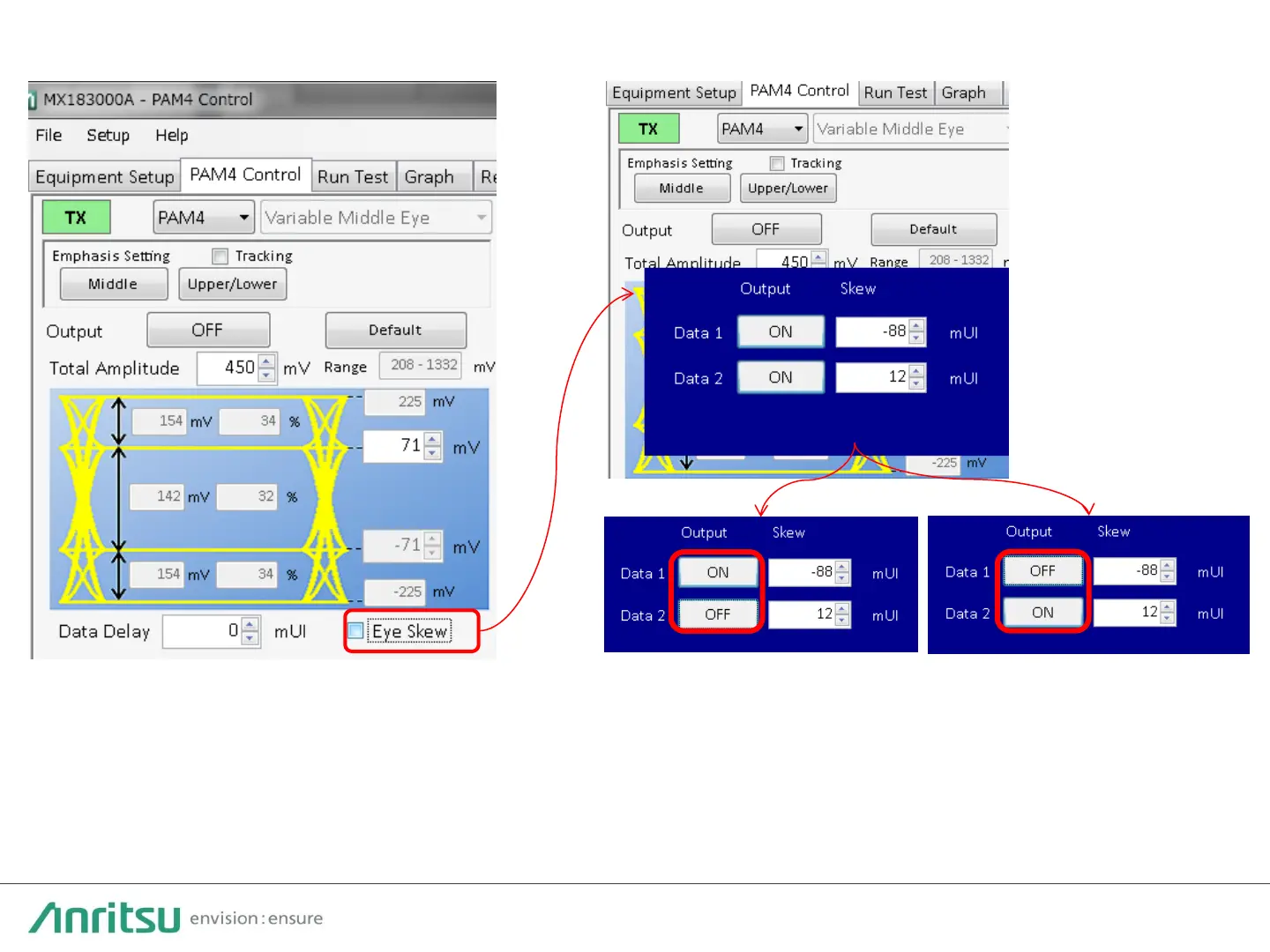

Adjust skew between Data1 and Data2 at [Eye Skew] while observing the G0375A output waveform with
an oscilloscope to align the skew between MSB and LSB of PAM4.
- Set Data 1 Output to ON and Data 2 Output to OFF and set a delay marker at the crosspoint position on
the oscilloscope screen.
- Set Data 2 Output to ON and Data 1 Output to OFF. Adjust the Data 2 skew value so the crosspoint
position aligns with the marker. Set the Data 1 Output to ON after finishing adjustment.
- Uncheck [Eye Skew] to close the skew setting window.
