15
Emphasis Settings
Setting a checkmark in the [Tracking] checkbox of Emphasis Setting and clicking [Middle]
performs Emphasis setting for Data1 (MSB). In addition, setting a checkmark in [Tracking]
also sets the same value automatically at Data2 (LSB). Pressing [Return to MX183000A] after
setting Emphasis returns to the MX183000A PAM4 Control screen.

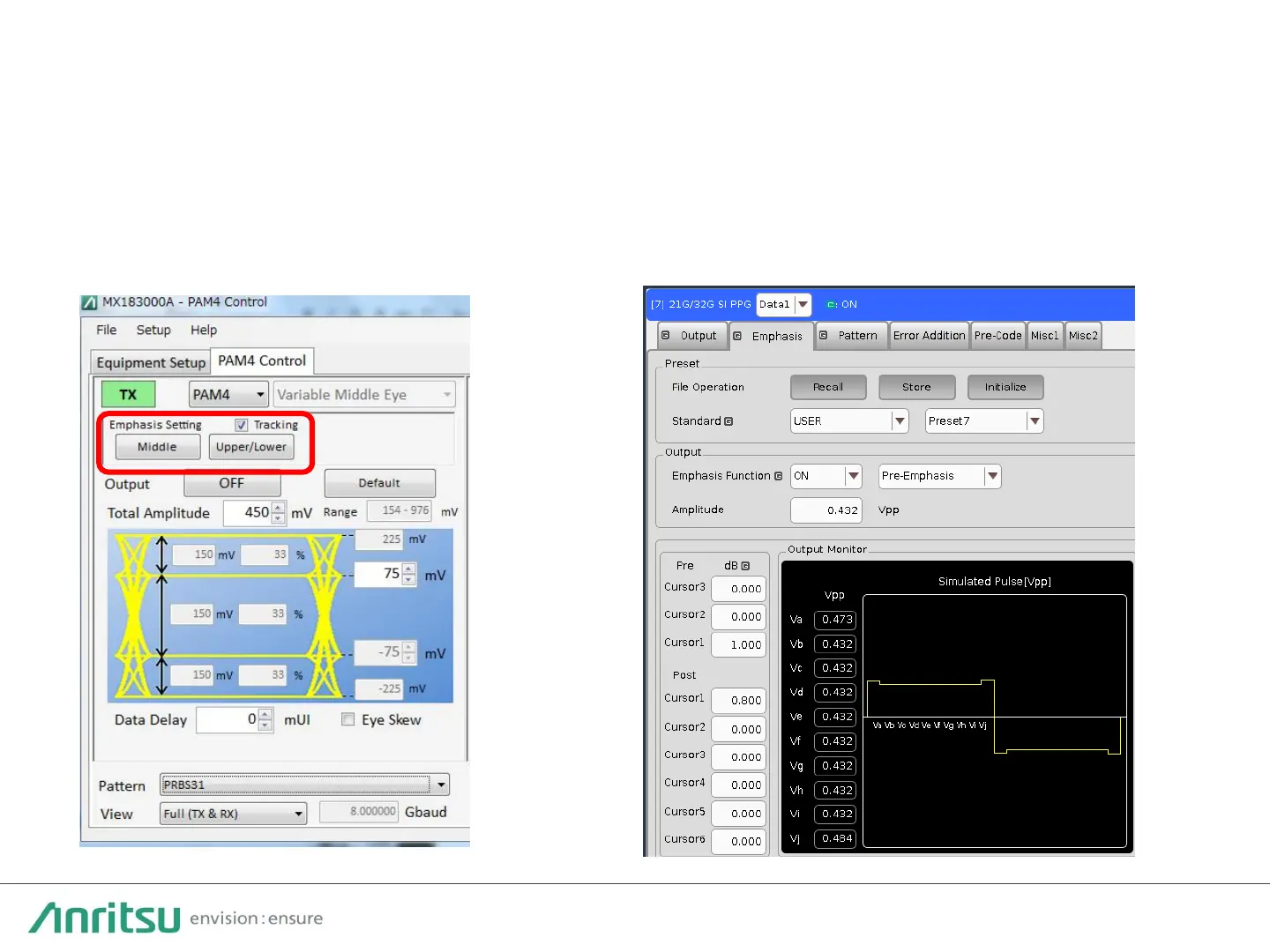

Data1 Emphasis Setting Screen
