Network Master Pro MT1000A: Main Frame
The Network Master Pro MT1000A is a multiplatform designed for
field testing that is configured using a combination of transport
and optical. The Main Frame controls the test modules which can
be changed freely to any custom configuration matching the users
testing requirements.
Network Master Pro MT1000A Main Frame
Model Name
MT1000A Network Master Pro
Standard Accessories
Line Code
*
1
: 1 pc
B0690A Softbag: 1 pc
B0728A
*
2
Rear Panel kit: 1 pc
G0309A AC Adapter: 1 pc
G0310A Li-ion Battery: 1 pc
Z1746A Stylus: 1 pc
Z1747A
*
3
Carrying Strap: 1 pc
Z1748A
*
4
Handle: 1 pc
Z1817A
*
5
Utilities ROM: 1 pc
Main Frame Options
MT1000A-003 Connectivity for WLAN/Bluetooth
MT1000A-005
*
6
AUX I/O
1
Audio (3.5ø: CTIA Standard)
2
AUX (Interface for GPS)
3
Clock Input
4
USB Mini-B
5
USB A
6
USB A
7
Ethernet Service Interface (For remote control)
8
DC Input (18 V DC)
9
9-inch active TFT display and touch screen
10
Power switch
11
Speaker

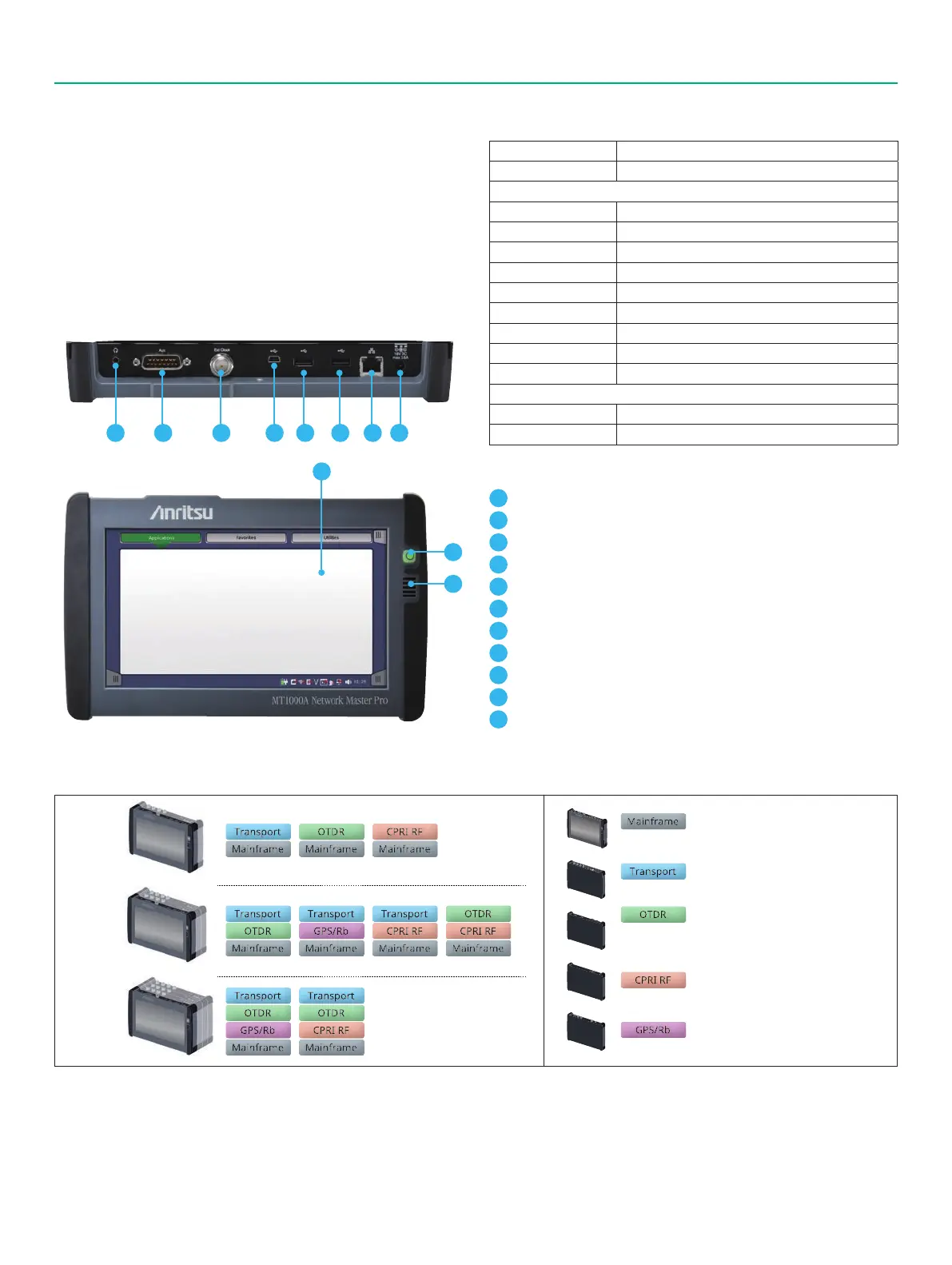

Network Master Pro MT1000A
1 2 73 4 5 6 8
9
10
11
No Measurement Module
Module Configuration
*
7
1 Module
*
8
*
8
2 Modules
*
8
3 Modules
Network Master Pro
MT1000A
Transport Module
10G Multirate MU100010A
OTDR Module
1310/1550 nm SMF MU100020A
1310/1550/850/1300 nm SMF/MMF MU100021A
1310/1550/1625 nm SMF MU100022A
CPRI RF Module
MU100040A
High Performance GPS Disciplined Oscillator
MU100090A
*
1: One line cord is attached to the area to shipment.
*
2: Set of B0720A (Rear Panel) and B0732A (Screw Set). Please refer to following "Module Configuration" for details.
*
3: Shoulder strap for MT1000A.
*
4: Hand strap for MT1000A.
*
5: DVD ROM containing operation manual, remote script instruction manual, etc.
*
6: It is required when using MU100090A.
*
7: Any modular combination as shown in a figure.
*
8: Required if the MU100010A module (10G transport) is not used rear cover.
