Antari FT-20X - Page 9

9
Dip Switch 12
Function
OFF
On/Off Mode
ON
Continuous Mode
Rotary Knob
Function
SMOKE
Turn fog on/off, adjust output volume from 0~100%

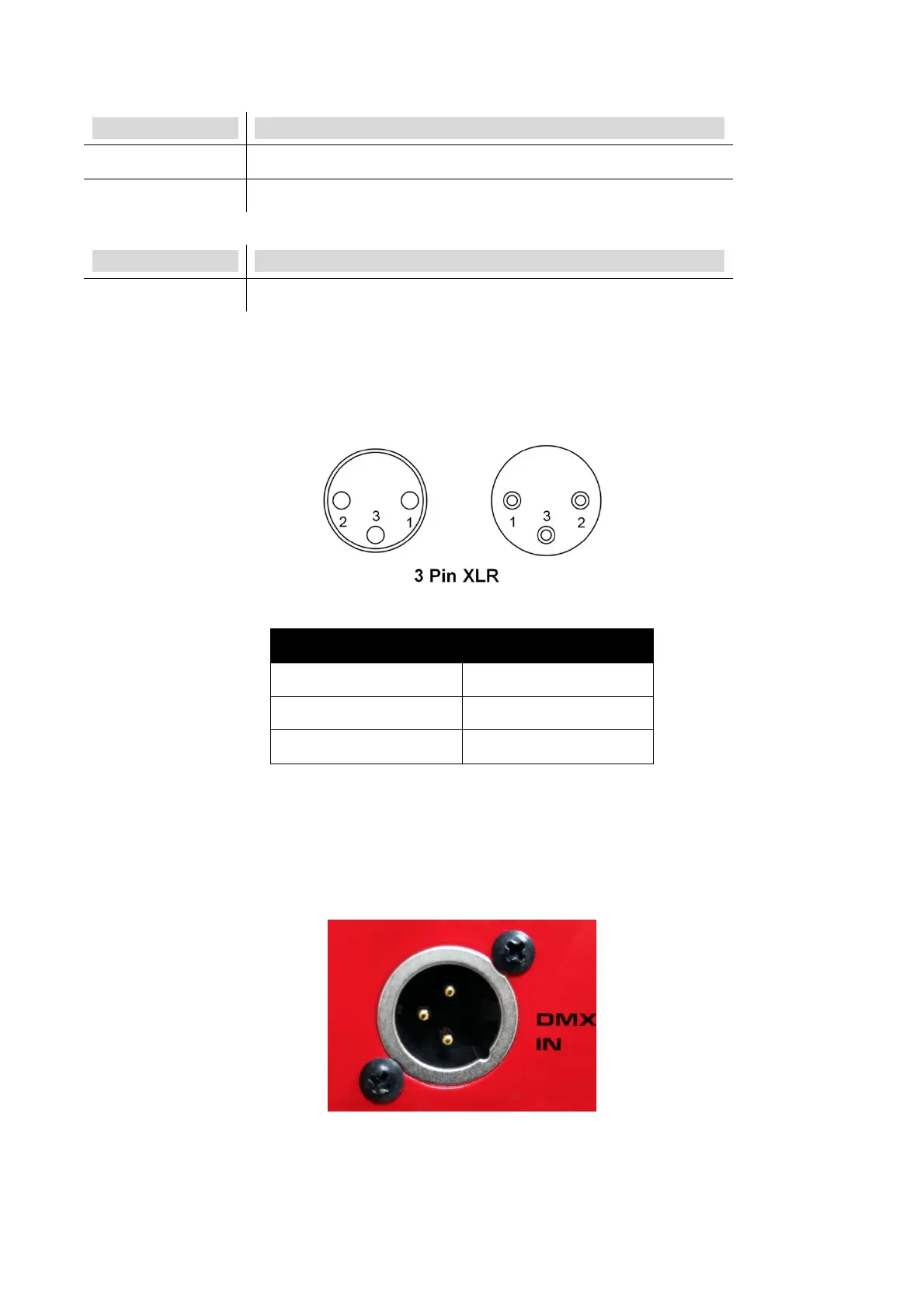

DMX Connector Pin Assignment
The machine provides 3-pin XLR connectors for DMX connection. The diagram below
indicates pin assignment information.
Pin
Function
1
Ground
2
Data-
3
Data+
DMX Operation
Making the DMX Connection – Connect machine to a DMX controller or to one of the
machines in the DMX chain. The machine uses a 3-pin XLR connector for DMX connection,
the connector is located on the rear of the machine.
Address Setup – Use the DIP switch located on the rear of the machine to set the DMX
address. The machine occupies 1 control channels. The starting address is defined as the
