Antari M-11 - 機台爆炸圖

37
© 2023Antari Lighting and Effects Ltd. www.antari.com
18.

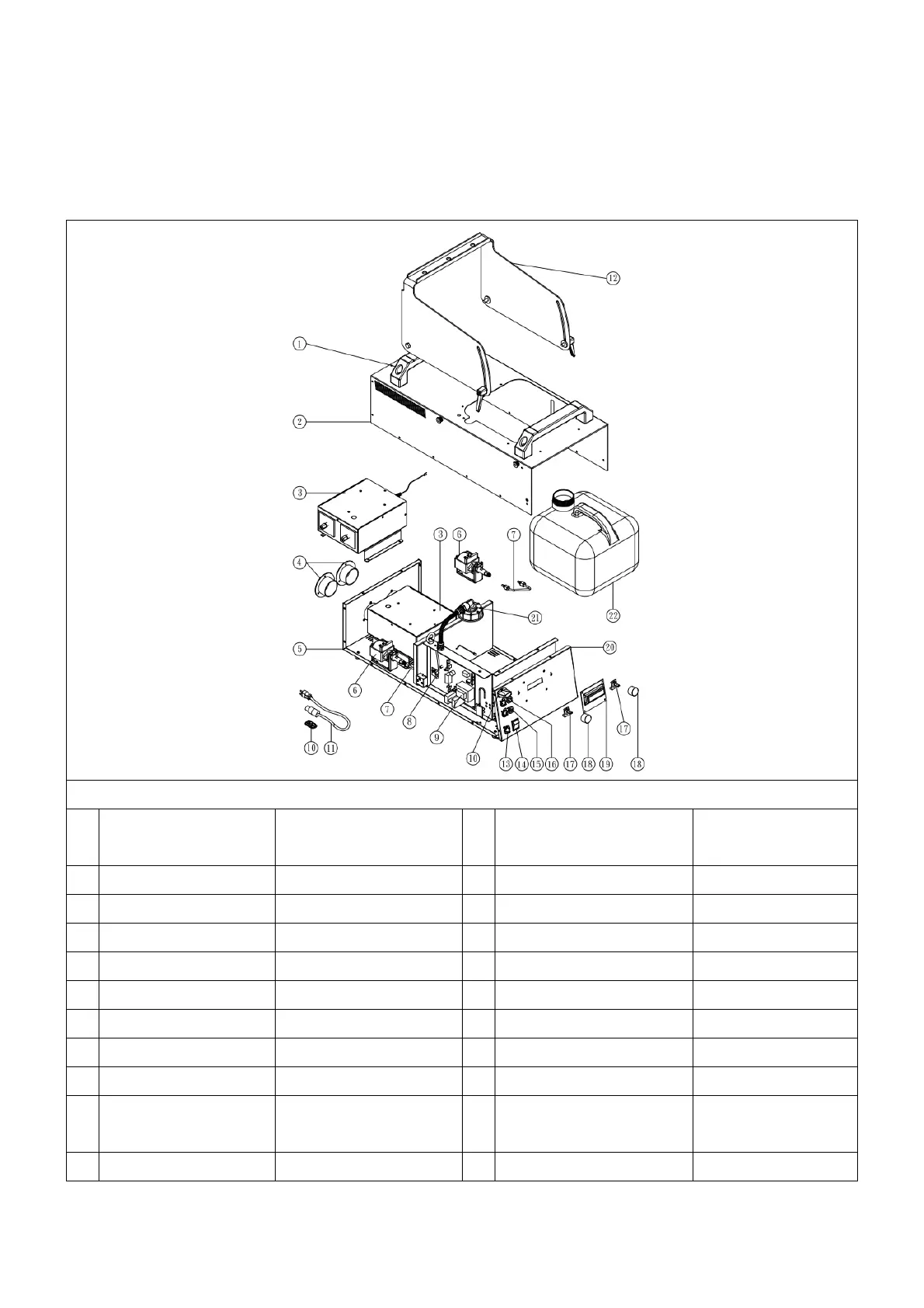

機台爆炸圖
18.1 AC-120V
SPARE PARTS OF M-11
1
M-11-HL
Handle
12
M-11-HB
Hanging Bracket (Group)
(Optional)
2
M01100H01
Steel Case
13
C04312610
Power Inlet
3
M-11-H
Heater (Group)(120V)
14
C04000100
Rocker Switch/Power
4
C02006000
Plastic Nozzle
15
M-11-PCBD5 (DMX5P00A5)
P.C Board DMX 5Pin
5
M0110LL01
Steel Case
16
M-11-PCBD3 (DMX3P00AB)
P.C Board DMX 3Pin
6
M-11-P (PA0EX5A30)
Pump (Group)(120V)
17
B06721A00
Rotary Encoder
7
M-11-CP
Brass Tube
18
C04006500
Control Knob
8
M-11-PCBS (PCBS13340)
Optical Liquid Sensing
19
M-11-PCBC
Control P.C Board
9
M-11-PCB
Main P.C Board(120V)
20
M01100L00
Steel Case
10
WTR-20A
Wireless
(Optional)( 315MHZ)
21
M-11-TKC (TKC3A17AC)
Tank Cap (Group)
11
M-11-PC (PCA014204)
Power Cord & Plug(US plug)
22
M-11-TK (TK0210000)
Tank
