- 18 -
INSTALLATION GUIDE
7

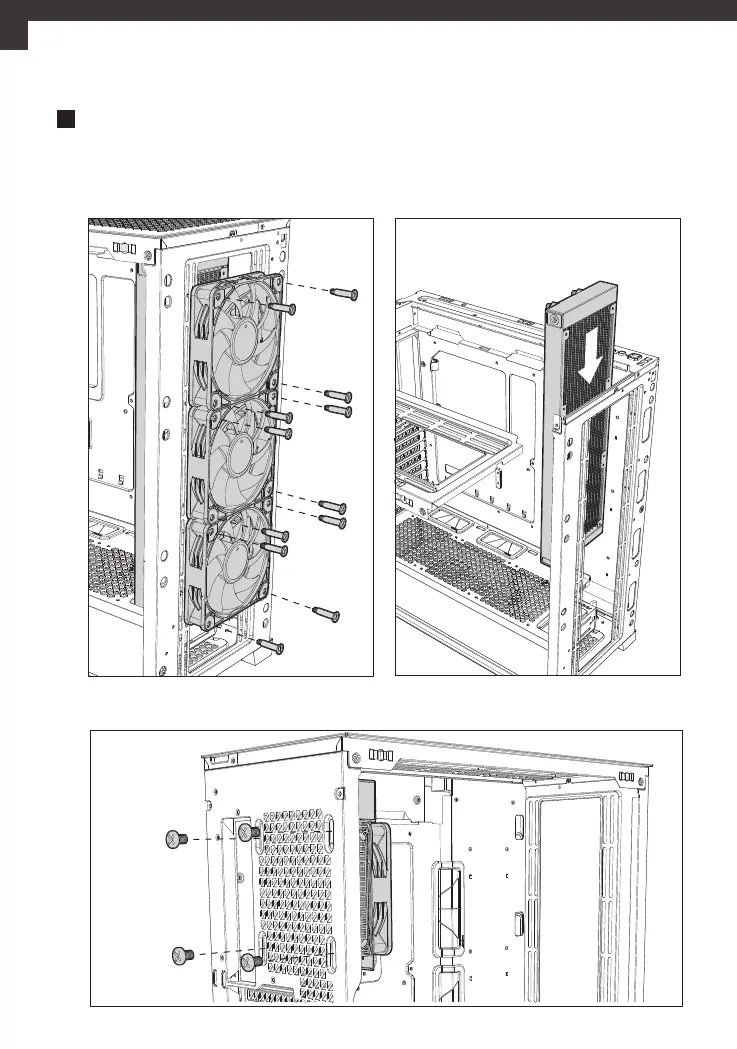

LIQUID COOLING RADIATOR INSTALLATION
Installation des Kühlers für die Flüssigkeitskühlung｜Installation des Radiateurs Watercooling｜Istallazione del radiatore di
raffreddamento liquido｜Instalación de radiador de refrigeración líquida｜安裝水冷散熱器｜安装水冷散热器｜액체 냉각 라디에이터
설치｜液体冷却ラジエーターの設置
[B] REAR RADIATOR
[A] FRONT RADIATOR
*To install a 420mm radiator,
must remove the top cooling bracket.
To Next Page
