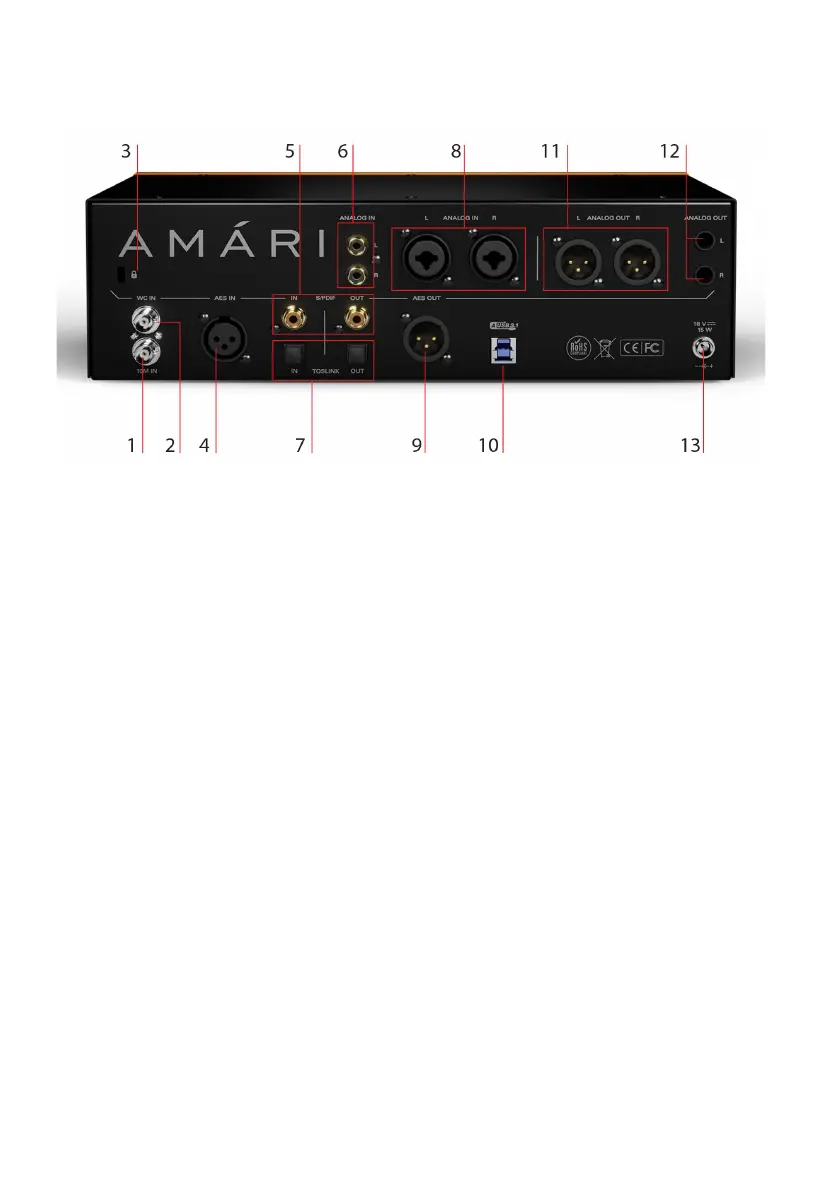

4.2 REAR PANEL EXPLAINED
1. 10M Atomic Clock Input
2. Word Clock Input
3. Kensington Lock
4. AES Input
5. S/PDIF Input & Output
6. Analog Left & Right Inputs RCA Connectors)
7. TOSLINK Input & Output
8. Analog Left & Right Inputs (Combo Connectors)
9. AES Output
10. USB 3.1 Gen1 Type B Connector
11. Analog Left & Right Outputs
12. Analog Left & Right Outputs TRS Connectors)
13. Power Supply Connector
