120V 60Hz
170W MAX
EXPANSION PORT
SHOCK HAZARD
DO NOT OPE N.
RISQUE DE CHOC ÉLECTRIQUE
NE PAS OUVRIR
MAIN AUDIO-OUT (BALANCED)
SUB 2
MAIN AUDIO-OUT
24
25
26
23
21
20
22
151617 1418
19
8 95 6
7
10
11
12
2
3
1
4
13
4
1 – 7 composite video inputs
2 – 7 S-Video inputs
3 – 5 S-Video outputs
4 – 5 composite video outputs
5 – HDMI output)
6 – 2 component video outputs (3 jacks/ea)
7 – 3 12V trigger outputs
8 – 4 component video inputs (3 jacks/ea)
9 – 4 HDMI inputs
10 – FM and AM antenna connections
11 – Expansion port
12 – 2 IR emitters
13 – Main audio output (10 balanced jacks)
14 – 3 IR extension inputs with 12V supply
15 – RS-232 interface (bidirectional)
16 – Main audio output (10 jacks)
17 – 6-channel analog audio input
18 – AES/EBU digital audio input
19 – Analog audio balanced L/R input
20 – ZONE2, ZONE3, and REC analog audio outputs
21 – 3 optical digital audio inputs
22 – 2 digital audio REC outputs
23 – 7 analog audio L/R inputs
24 – 7 digital audio coaxial inputs
25 – Ground terminal
26 – Power cord connection
27 – AC switch

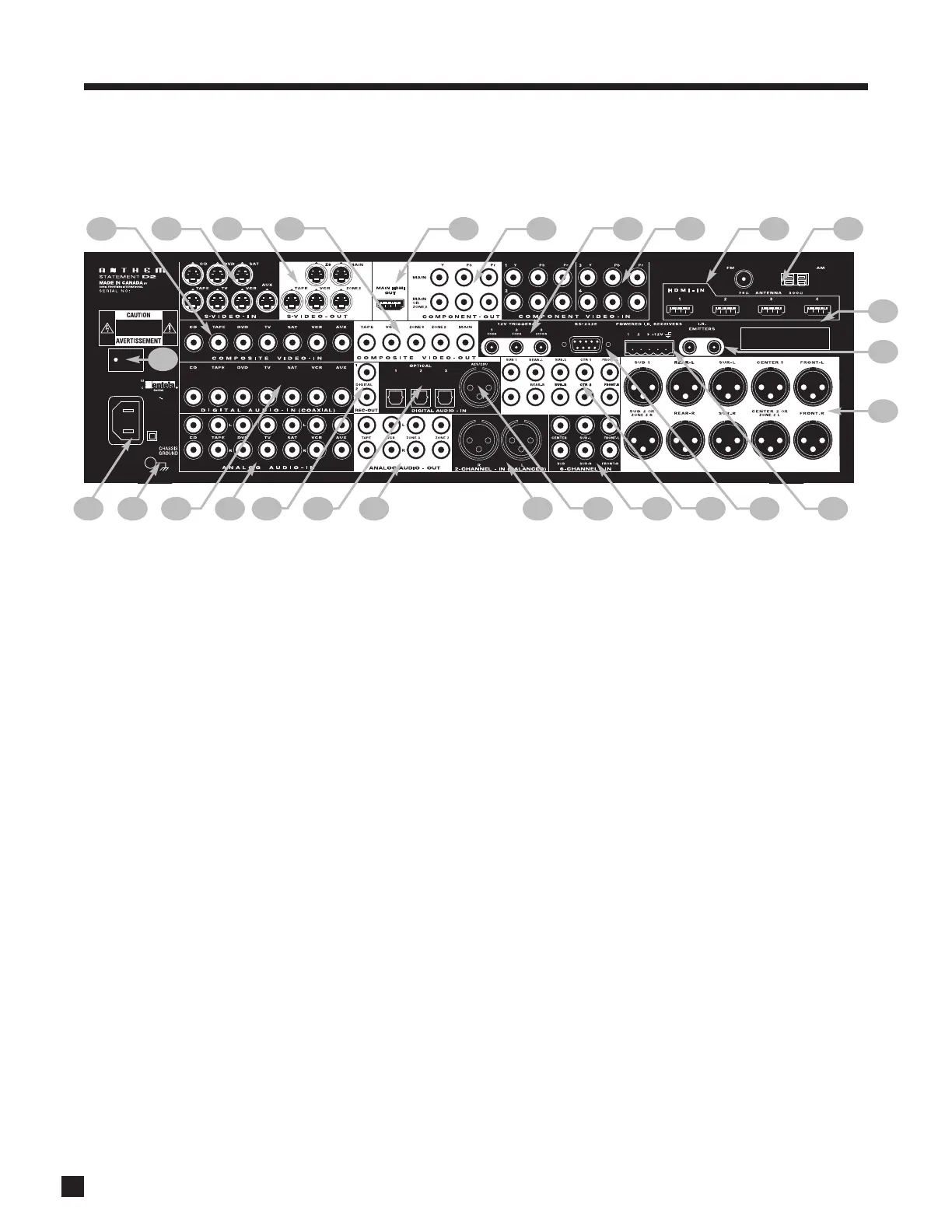

1.5 REAR PANEL
For larger diagrams, see inside back cover.
1. INTRODUCTION continued …
