Anthem Statement D2 - Speaker Placement

6
2
3
4
7
8
1
5
6
7
8
0
9
1
2
3
4
5
6
110˚ from center
7
8
0
9
1
2
3
4
5
6
*Dipole speakers shown with “null” facing listening area. Direct radiating speakers are shown below.
5 and 6 are not used in a 5.1 system
1. Front-Left
2. Center
3. Front-Right
4. Surround-Right*
5. Rear-Right*
6. Rear-Left*
7. Surround-Left*
8. Subwoofer (“.1”)

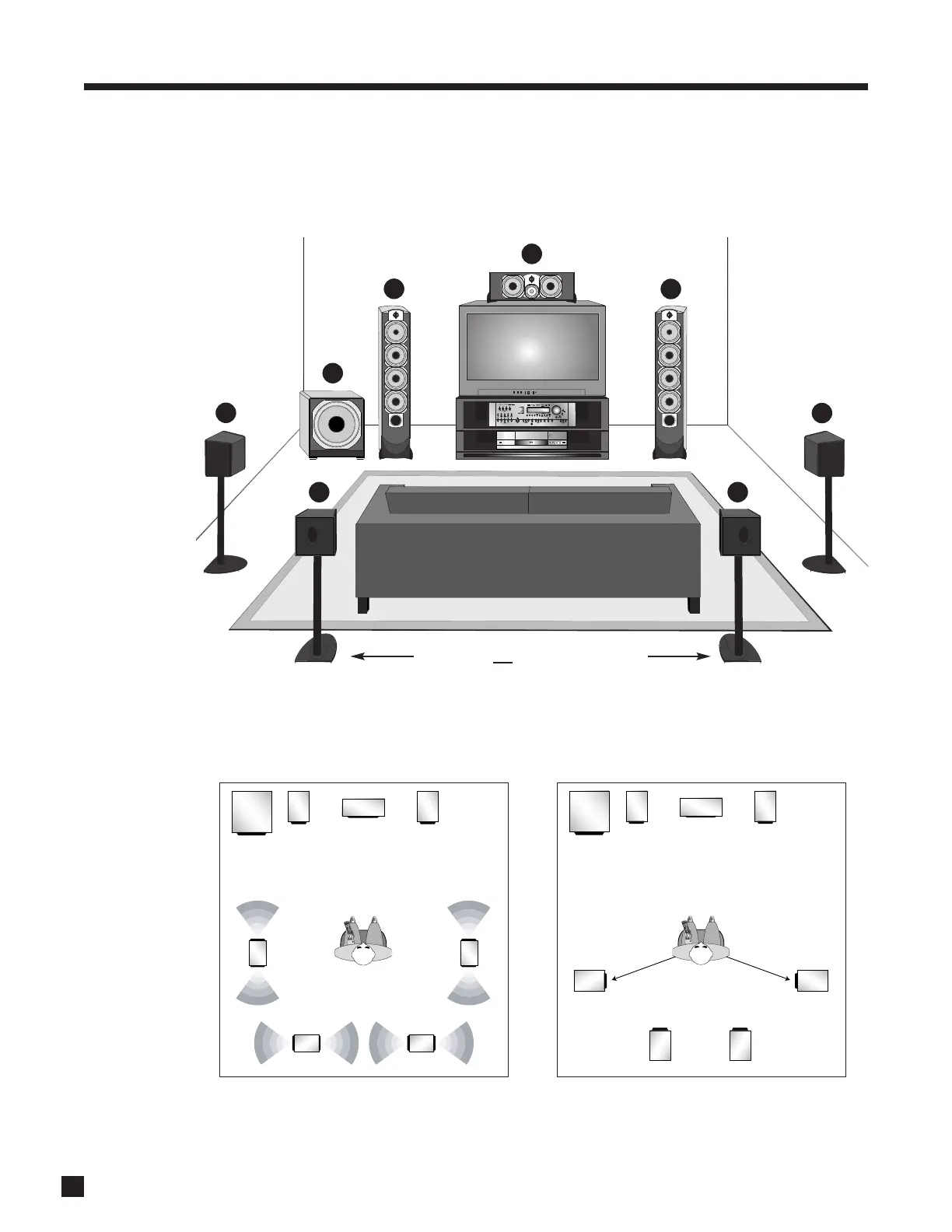

1.7 SPEAKER PLACEMENT
These illustrations show typical speaker placement for a 7.1-channel surround system. The surround and
rear speakers are normally positioned 2-3 feet above ear level. The subwoofer can be placed in any location
where severe resonances are prevented – see section 3.3.
1. INTRODUCTION continued …
Placement with dipole surrounds
Placement with direct radiating surrounds
slightly behind listening position
