Antop FLAT-PANEL SMARTPASS AT-402B - Installation for Outside Use; For Outdoor Use, Mast Pole Mounting; For Indoor Use, with Table Stand; Connecting the Antenna

1 / Installation for Outside use
2 / Connecting

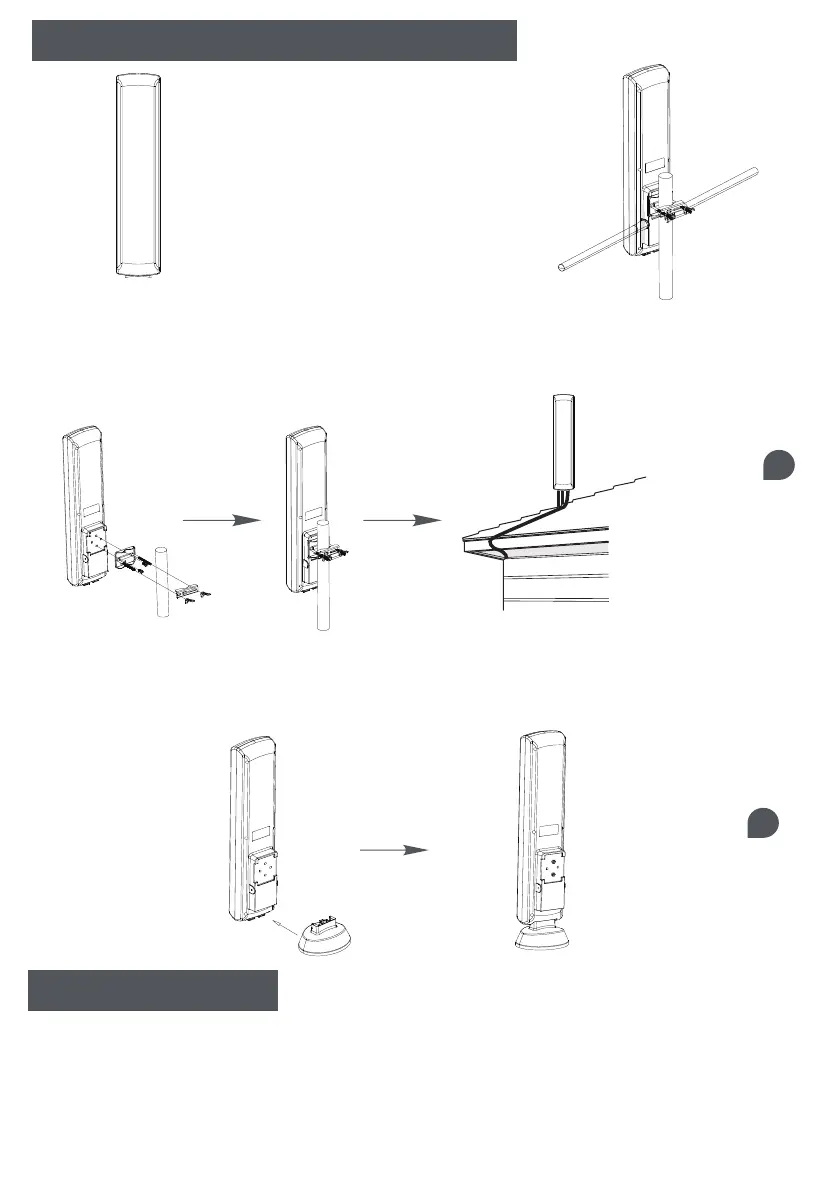

Install a mast pole (not provided) on the house, preferably on rooftop or the side of the house
facing the TV station transmitters. Attach the antenna to the mast pole by using the clamp kit
provided.
2.1.1 Select entry point to house. Drill hole under the eaves at entry point. Attach coaxial cable
with water proof cap end to connector in the antenna. For Vertical Mast Pole Mount utilize
U-shape coaxial cable setup to prevent water from entering interior of antenna casing. Feed
lose end of coaxial cable through drilled opening.
2.1 For Outdoor Use, Mast Pole Prepping for Connection
1.1 For Outdoor Use, Mast Pole Mounting
1.1
2
1.2
To remove antenna hardware from backside of unit, release screws form hardware. Attach the
Table Stand to the bottom of antenna.
1.2 For Indoor Use, with Table Stand
