2.1.1
3

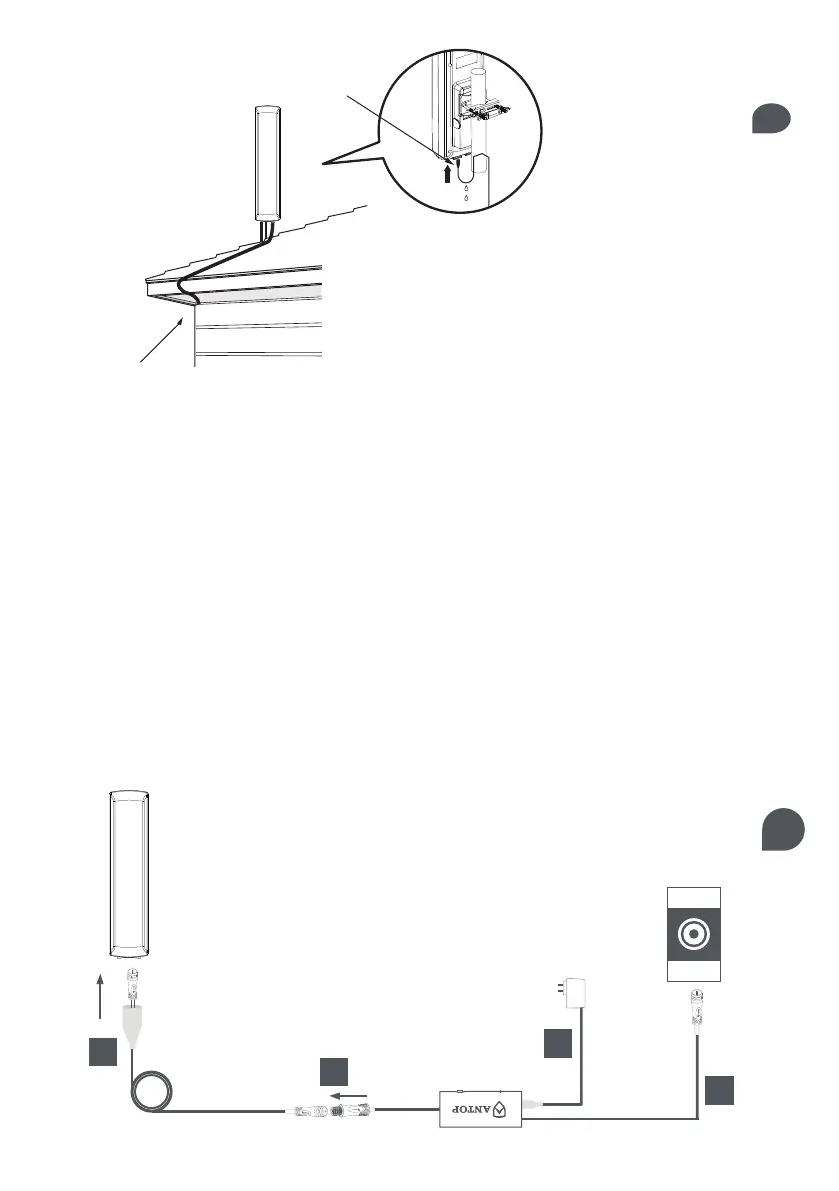

Water-proof cap
The back of antenna
U-shape cable arranging prevents
water from entering
Drill a hole on the eaves, and arrange
the cable into inner huose
Select entry point to house. Drill hole at entry point. Attach coaxial cable with water proof cap
end to connector in the antenna. Attach antenna back to hardware already mounted to beam
or wall, or just use the table stand for placement Feed lose end of coaxial cable through drilled
opening.
2.2 For Indoor Use, in Attic placement, Prepping for Connection
2.3 If you haven't done so, attach coaxial cable to connector in the antenna.
Step 1. Attach one end of coaxial cable (with waterproof cap) to connector on the antenna.
Step 2. Attach the other end of the coaxial cable to the shorter end (0.3ft) of the power inserter.
Step 3. Attach the longer end (3ft) of the power inserter to the ANTENNA/CABLE IN connector
on the back of the TV or converter box.
Step 4. Connect the power adapter to the DC socket in power inserter.
CABLE IN
ANT/IN
ON/OFF
LED
Back of TV
waterproof cap
To coaxial cable
To TV
3ft
0.3ft
2.3
1
2
4
3
